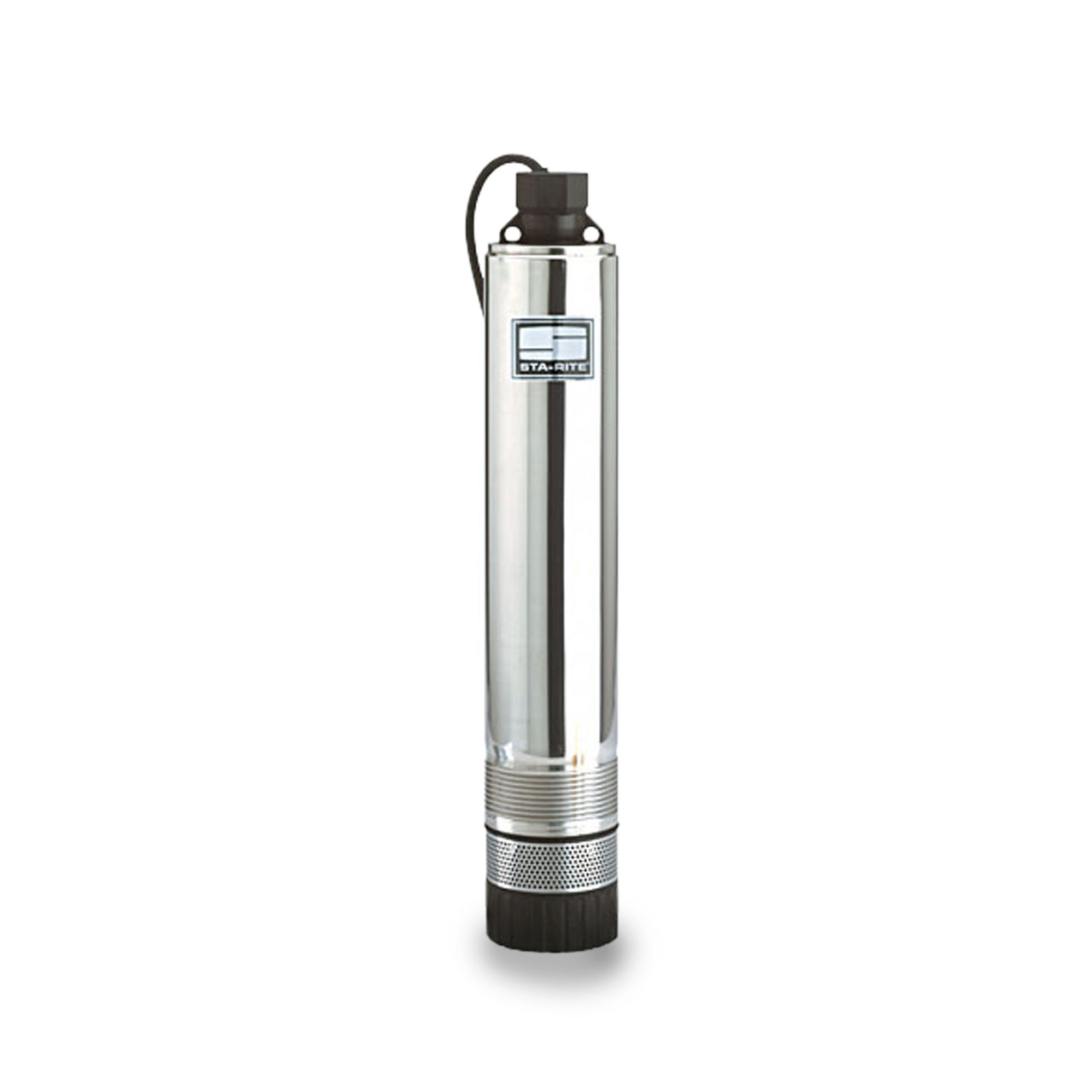

Sta-Rite ST.E.P. Plus D Series Description

The ST.E.P. Plus™ D-Series 4" submersible pump series in 10, 20 and 30 GPM models dominates with superior "DRAW-DOWN" capability, with reduced amp draw and with cooler and quieter operation.

Sta-Rite ST.E.P. Plus D Series Applications

Clean and Gray Water for Residential, Commercial and Agricultural Use.

Sta-Rite ST.E.P. Plus D Series Features

• Proven Stage System: The Proven SignaSeal Staging System Utilizes a Patented Ceramic Wear Surface. When Incorporated with Sta-Rite's "True" Independent Floating Impellers, Dominates with 1st-In-Class Performance, Superior Sand Handling and a Thrust Management Staging System with Industry Exclusive "Dry-Run" Capabilities.
• Superior "Draw-Down" Capability: The ST.E.P. Plus Dominates in this Class with the Lowest Draw-Down of 4-1/2" (a standard 4" NEMA submersible only draws-down to 13-1/2").
• Reduced Amp Draw: The ST.E.P. Plus Dominates in this Class with Less Energy Consumption - Over 25% Less Amp Draw (9.5 amps vs. 12.7 amps, 115 volt) than a 4" NEMA Submersible, Reducing Operating Costs and Extending the Service Life of Float Switch Contacts.
• Cooler and Quieter Operation: The ST.E.P. Plus Dominates by using the Pumped Liquid to Cool the Motor as it Passes over the Motor. The Water Passing Over the Motor Dampens the Motor Noise, Eliminating Expensive "Flow-Inducer Sleeves" Required when Using a Standard 4" NEMA Submersible.
• Impellers: Precision Molded for Perfect Balance....Ultra Smooth for the Highest Performance and Efficiency. Allows for .080" Solids.
• Shaft: Positive Drive, Hexagonal 7/16" - 300-Grade Stainless Steel Shaft Offers Generous Impeller Drive Surfaces.
• Shaft Bearing: Exclusive Self-Lubricating Nylatron Bearing Resists Surface Wear from Sand and Abrasives.
• Shell: Corrosion Resistant 300-Grade Stainless Steel.

Sta-Rite ST.E.P. Plus D Series Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 10.6
• MOTOR TYPE: Dry-Wound, Double Ball Bearing, Double Seal & Thermal Overload
• MAXIMUM HEAD: 175'
• MAXIMUM CAPACITY: 27 GPM
• DISCHARGE PIP SIZE: 1-1/4" Fiberglass-Reinforced Thermoplastic
• MAXIMUM SOLIDS HANDLING: .080"
• IMPELLER TYPE: Acetal
• CORD LENGTH: 10' Type SJOW
• BODY CONSTRUCTION: Stainless Steel

Sta-Rite ST.E.P. Plus D Series Pump Curve
