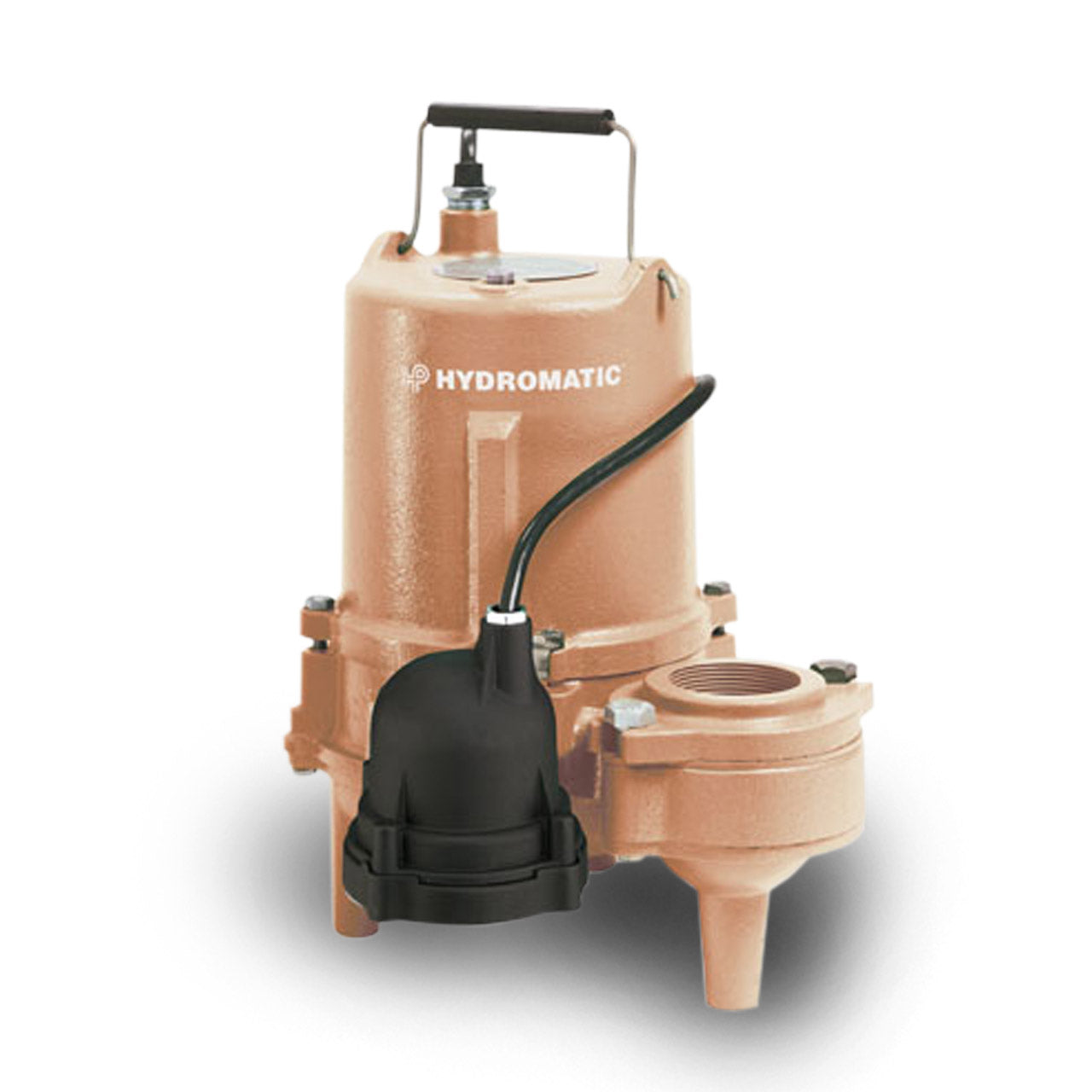

Hydromatic SP50AB1 Submersible Sewage Pump 0.5 HP 115V 1PH Bronze Automatic 20' Cord

Price: Discontinued
+ -
Discontinued or no longer available.
SKU: HTC501090067

Hydromatic Pump Logo

Item Discontinued, See Replacement Myers MSP50AB1 Submersible Sewage Pump 0.5 HP 115V 1PH Bronze Automatic 20' Cord

Hydromatic SP50AB1 Description

The SP50AB1 all bronze submersible pump is specifically designed to meet the demands of handling wastewater and sewage in marine, residential and commercial applications.

Hydromatic SP50 Typical Application

  • Marine Sump and Sewage
  • Commercial Sewage
  • Residential Sewage
  • High-Capacity Sump
  • Septic Tank Effluent

Hydromatic SP50 Superior Features

  • Carbon/Ceramic mechanical seal
  • Oil-filled motor with automatic reset thermal overload for maximum protection (one phase models)
  • Upper and lower single-row ball-bearing construction
  • Includes "piggyback" diaphragm switch

Hydromatic SP50AB1 Technical Details

  • BODY CONSTRUCTION: Bronze
  • HORSEPOWER: 0.5 HP
  • RPM: 1750
  • MAXIMUM HEAD: up to 28'
  • MAXIMUM CAPACITY: up to 140 GPM
  • DISCHARGE PIPE SIZE: 2" NPT Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 1.5"
  • CORD LENGTH: 10' Power Cord std.
  • VOLTAGE: 1ø, 115V
  • FULL LOAD AMPS: 12.0
  • MOTOR: Split-Phase
  • IMPELLER CONSTRUCTION: Bronze

Hydromatic SP50 Pump Curve

Hydromatic SP50 Pump Performance Curve

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2"), and Package Systems, that they will be free from defects in material and workmanship for the Warranty Period of 36 months from date of manufacture.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and HYDROMATIC’s only duty, is that HYDROMATIC repair or replace defective products (at HYDROMATIC’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

EXCEPTIONS:

Exceptions are warranted for a period of 12 months from date of purchase or 18 months from date of manufacture, whichever comes first.

Hydromatic Special Application Pumps:

  • HCU15/HCU15S/HCU20S
  • HUP
  • P33A1
  • HY106
  • HPUSP125

Battery Back-Up Sump Pumps:

  • A+ Battery Back-up
  • FG-A1
  • FG-100A
  • FG-200A

Filtered Effluent Pumps:

  • HE Series

Grinder Pumps:

  • HPGR Series

2-1/2" Sewage Pumps:

  • S3S Series
  • S4S Series
  • SB3S Series
  • SB4S Series
All accessories and repair parts

HYDROMATIC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This warranty supersedes and replaces all previous warranty publications.
