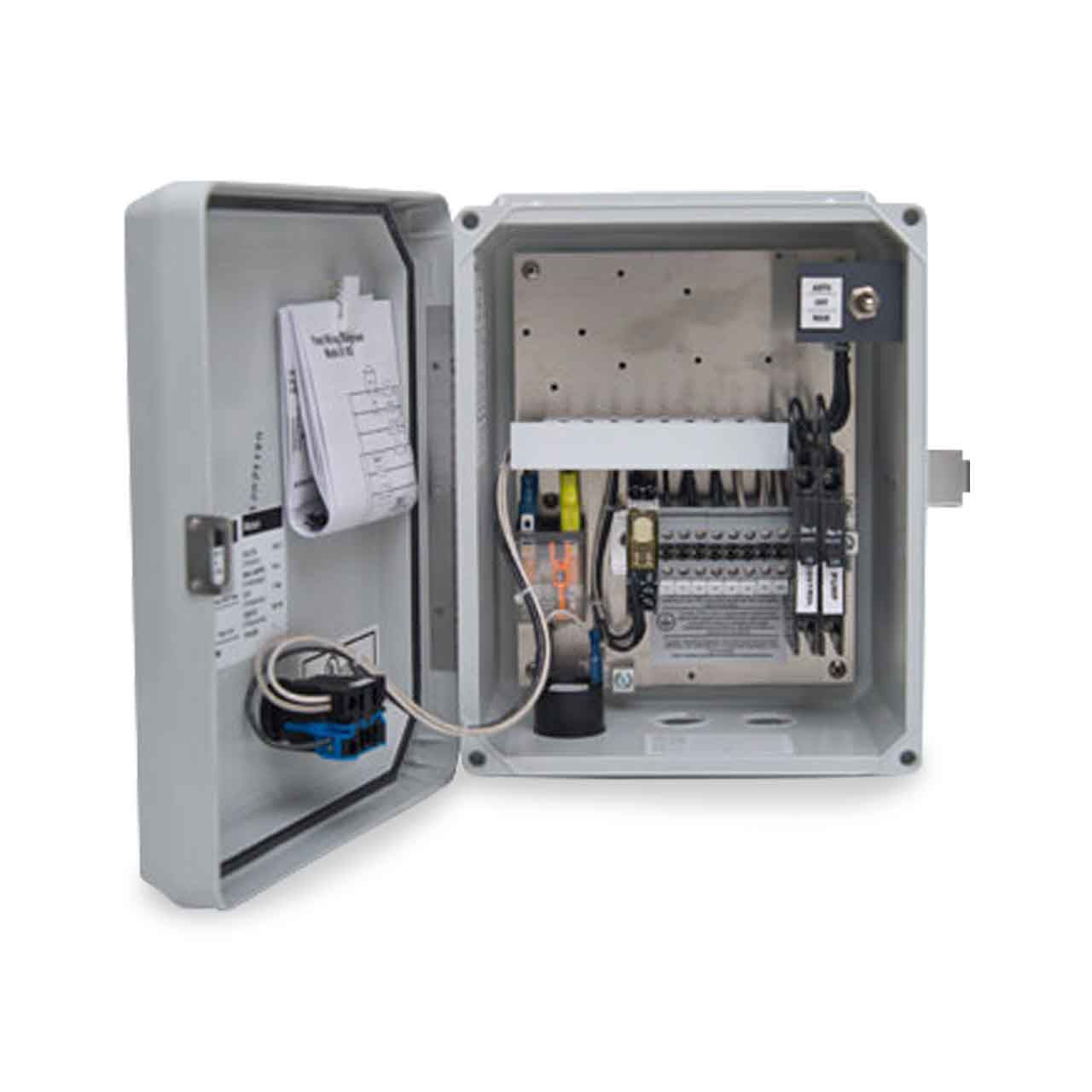

Orenco A1 Simplex Control Panel 120V 1PH

Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “A” series pump control panels are a low cost option for simplex pump and alarm system applications. These panels do not include a motor contactor, but switch the pump load directly through the liquid level control float.

Orenco A Series Simplex Control Panel Typical Application

• Residential and light commercial sump, septic tank effluent, and raw sewage pumping applicatons.

Orenco A Series Simplex Control Panel Technical Details

• RO version includes redundant off/low level alarm option

• Hand-Off-Auto switch
• 10A Control Breaker (Requires 120 VAC control power)
• 10A (115V) or 16A (230V) Panel Rating
• Audible Alarm: 95 dB at 24", warble tone sound
• Visual Alarm: 7/8" diameter red lens, "Push-To-Silence", LED light
• Eclosure: 9.5"H x 7.3"W x 5"D, NEMA 4X, UV-Resistant fiberglass, stainless steel latch and hinge

Orenco A Series Simplex Control Panel Product Resources

Orenco A Series Simplex Control Panel Submittal Data Sheet - Orenco Document: ESU-CP-A-1

Orenco A Series Simplex Control Panel Float Arrangement Diagram - Orenco Document: EDW-FA-A-1

Orenco A1 Simplex Control Panel Wiring Diagram - Orenco Document: EDW-WD-A-1
