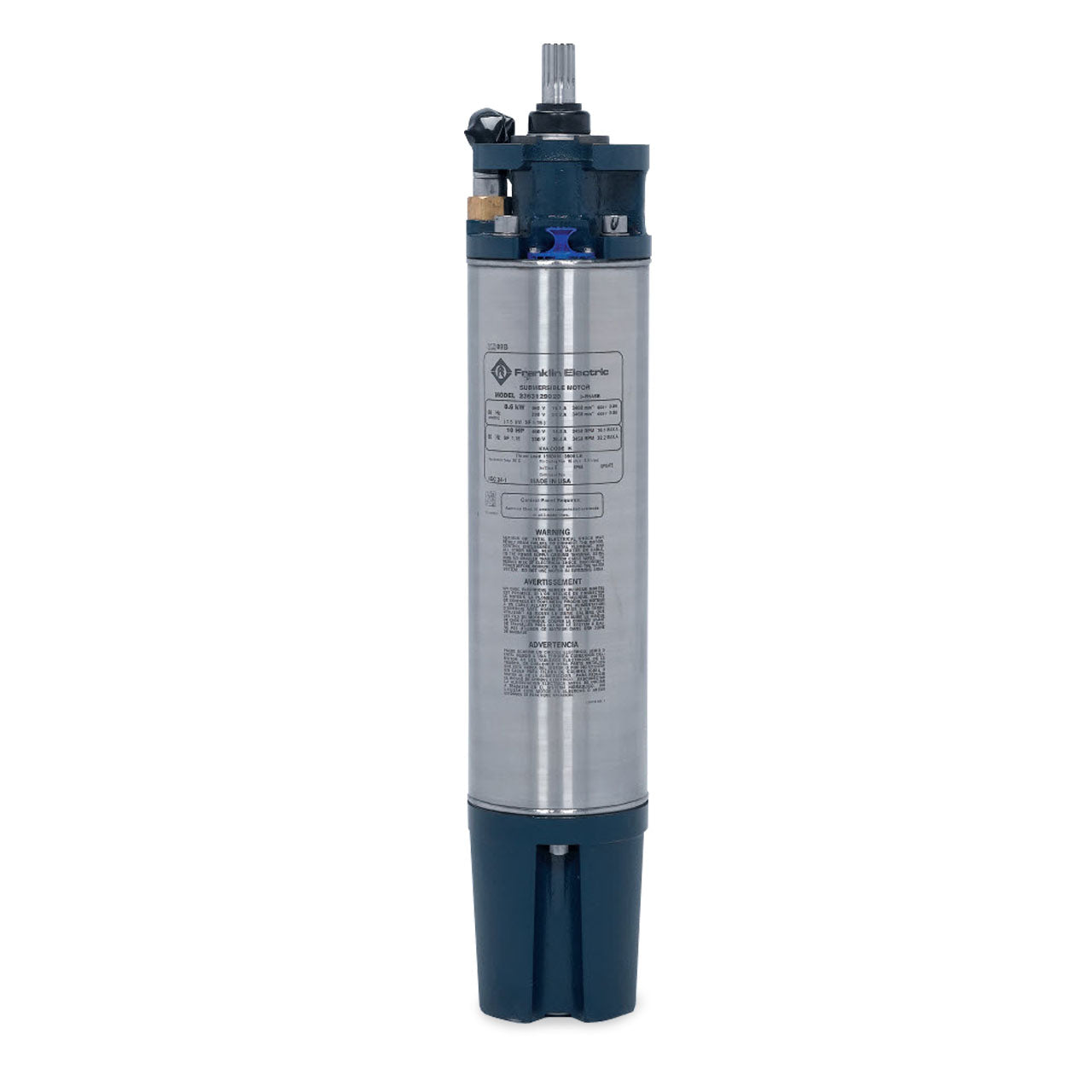

Franklin Electric 2396026021 Water Well Motor 8" 60 HP 460/380-Volt 60/50-Hz 3-Phase 3-Wire
Franklin Electric 2396026021 Water Well Motor 8" 60 HP 460/380-Volt 60/50-Hz 3-Phase 3-Wire
SKU : FEC2396026021
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Replacement: Franklin Electric 2396028521 Sand Fighter Motor 8" 60 HP 460/380-Volt 60/50-Hz 3-Phase 3-Wire
Franklin Electric 8" Submersible Motors
Franklin’s 8-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:
- Standard – for most water wells
- Sand Fighter™ - for wells with high levels of abrasives
- Hi-Temp – for hot water and other harsh conditions
- Stainless Steel – for aggressive water
These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime. Typical applications that rely on our motors include: Agricultural, Municipal, Industrial, Mining, Booster, Reverse Osmosis, Oil & Gas.
Franklin Electric 8" Submersible Motors Features
- Full 3525 RPM Design Point for Superior Pump Head and Flow Yield
- Winding Encapsulated in Anti-Tracking Resin
- Hermetically-Sealed Stator Area
- Kingsbury-Type Water Lubricated Thrust Bearing
- FES91 Exclusive Water Based Bearing Lubrication
- Water Bloc™ Removable Lead Connection
- Double Flanged Design for Ease of Handling and Pump Mounting
- Spline Shaft for Maximum Shaft and Coupling Contact
- Copper Bar Rotor Provides Consistent Design Performance
- Pressure Equalizing Diaphragm
- Subtrol Heat Sensors Standard on all 8” Encapsulated 30 °C Motors
- 3-Lead and 6-Lead (wye-delta) Configurations
- Pre-Filled with Temperature-Resistant Fill Solution
Specifications
Specifications
Franklin Electric 8" Submersible Motor Specifications
- HERTZ: 60/50 Hz
- HORSE POWER: 60 HP
- VOLTAGE: 460/380 V
- PHASE: 3 Ph
- RPM: 3525/2900 RPM
- SERVICE FACTOR: 1.15/1.0
- POLES: 2
- DOWNWARD THRUST (lbs): 10,000 lbs
- MAX AMBIENT TEMP: 86°F/30°C
- DUTY RATING: Continuous
- CONSTRUCTION: Water Well
- LENGTH (inches): 43"
- CASTINGS: Gray Iron
- STATOR SHELL: 304 SS
- SHAFT EXTENSION: 17-4 SS
- FASTENERS: 300 Series SS
- SEAL: Carbon/Ceramic Face
- SEAL COVER: 304 SS and Sintered Bronze
- SLINGER: Nitrile Rubber
- DIAPHRAGM: Nitrile Rubber
- DIAPHRAGM PLATE: 304 SS
- DIAPHRAGM SPRING: 302 SS
- LEADS: 3-Wire
- LEAD IN MOTOR: Yes
- LEAD WIRE (or Cable): XLPE (#8 AWG) / Hypalon (#4 & #2 AWG)
- LEAD POTTING: Epoxy
- LEAD JAM NUT: Brass
- FILTER: Delrin and Polyester
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 8" Submersible Motor Product Resources
Franklin Electric 8 in Motor Brochure
Franklin Electric 8 in Motor Catalog Pages
