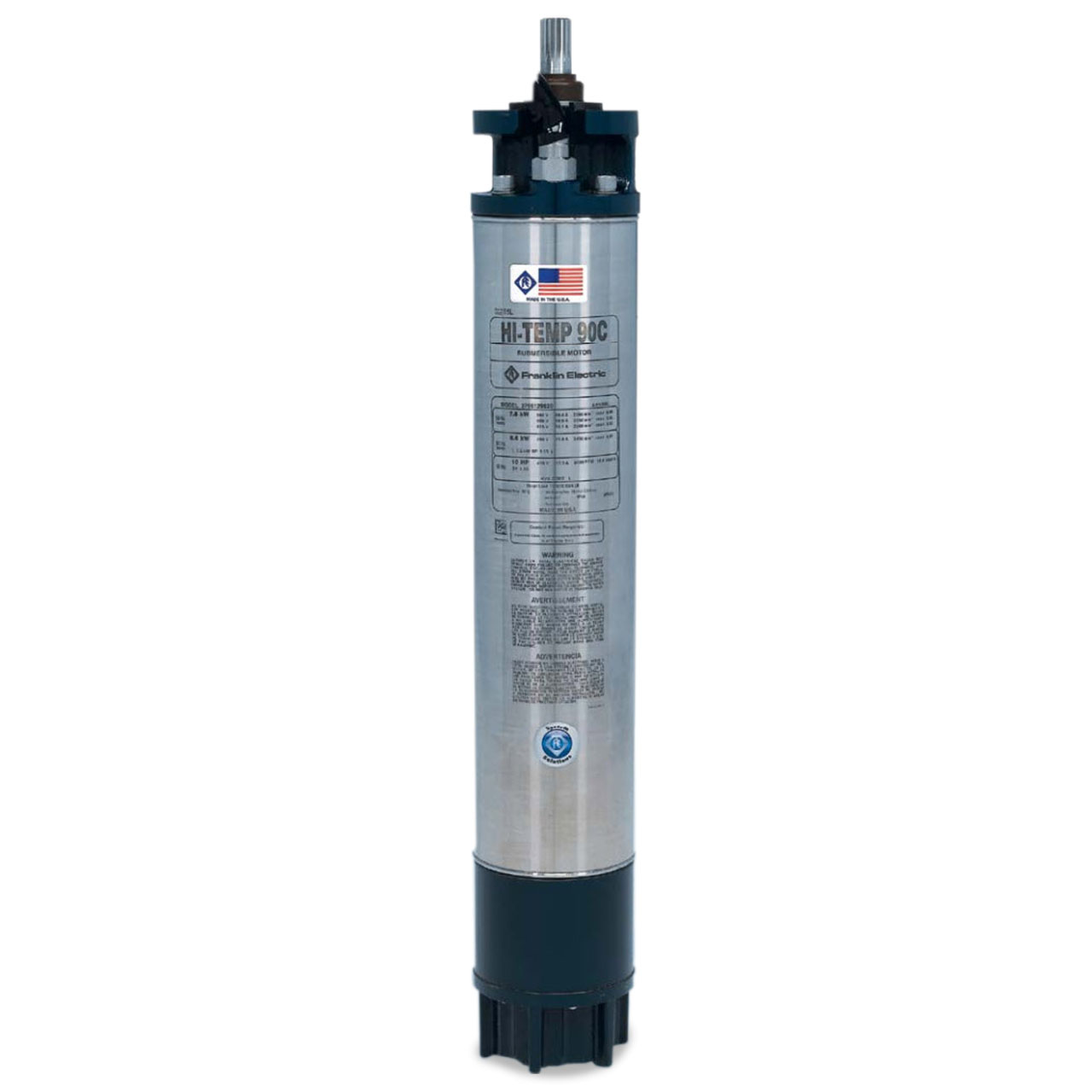

Franklin Electric 2767170103 Hi-Temp 90C Motor 6" 40-HP 460/380-Volt 60/50-Hz Three-Phase 6-Lead Wye-Delta

Price: $7,034.59
Quantity:
+ -
Usually ships within 1 week
SKU: FEC2767170103


Shipping Weight:
335.0 LBS
Shipping Dimensions
Length: 8 In
Width: 11 In
Height: 71.75 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric™

Franklin Electric 6" Submersible Motors

Franklin’s 6-inch submersible motors are built for dependable operation in 6” diameter or larger water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options:

  • Standard – for most water wells
  • Sand Fighter™ - for wells with high levels of abrasives
  • Hi-Temp – for hot water and other harsh conditions
  • Stainless Steel – for aggressive water

Franklin Electric 6" Hi Temp 90C Submersible Motor Application Data

Some pumping applications require more – and Franklin’s Hi-Temp Motor line delivers just that. The Hi-Temp motor was designed and built in response to many requests for a motor that operates dependably in wells with high temperatures and/or low flow conditions. The 6-inch Hi-Temp 90C motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 90 ºC.* In addition, this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin’s Hi-Temp 90C is the right choice for your demanding, high temperature well applications.

* Provided minimum allowable rates of flow past the motor are maintained

Franklin Electric 6" Hi-Temp 90C Submersible Motors Features

  • Up to 194 °F (90 °C) ambient temperature.
  • 100% increase in upthrust capability at 30 °C
  • 25% increase in downthrust capability at 30 °C
  • Wet Well, Reservoir, Low Flow approved in 12” diameter or larger wells with ambient water up to 87 °F (30 °C)
  • High temperature leads
  • Hermetically sealed stator
  • Innovative high temperature winding encapsulation system
  • FES92 exclusive water soluble, high temperature bearing lubrication
  • Double-flange NEMA mounting for ease of handling and pump mounting
  • Stainless steel splined shaft for maximum shaft/coupling contact
  • Full 3450 RPM 60Hz design point for superior pump performance
  • Sand Fighter™ Sealing System
  • Franklin Electric’s exclusive Water-Bloc™ lead connection
  • 316 SS and Wye-Delta - consult factory
  • Extended warranty available when used with FE Submonitor overload protection

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric Warranty

Franklin Electric Warranty “Layman’s” Edition

General Warranty Info: Defective products generally covered up to 12 months after installation or 24 months from manufacture, whichever comes first.
