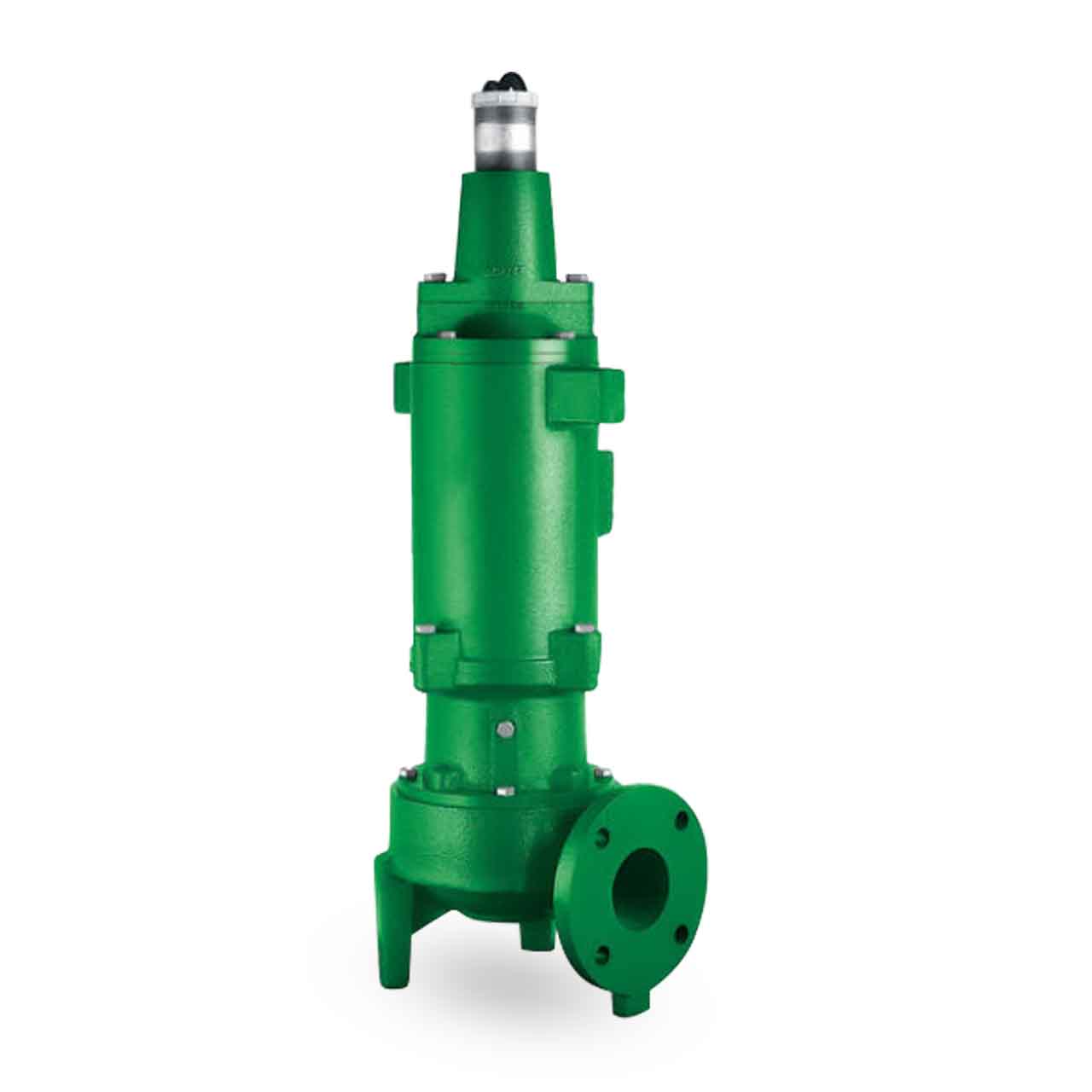

Myers 3RH75M2-23 Solids Handling Wastewater Pump 7.5 HP 230V 3PH

Myers 3RH75M2-23 Solids Handling Wastewater Pump 7.5 HP 230V 3PH

Usually ships within 5 weeks

SKU : MYR25986E023

In Stock Quantity:0

:
Brand : Myers
$8,968.00 USD
Shipping calculated at checkout.

Description


Myers Model 3RH/3RHX Solids Handling Pump Description

The Myers 3RH and 3RHX (hazardous location) Submersible Wastewater Pumps are the right choice when difficult to fibrous or stringy solids are to be expected. The 3RH/3RHX Series provides smooth, vibration-free operation when operating at heads higher than peak efficiency. For use in commercial lift stations, treatement plants and industrial waste applications.

Myers Model 3RH/3RHX Solids Handling Pump Typical Application

  • Commercial Lift Stations
  • Treatment Plants
  • Industrial Waste Applications

Myers Model 3RH/3RHX Solids Handling Pump Features

  • Cable Entry System Provides Double Seal Protection, Cable Jacket Sealed by Compression Grommet and Individual Wires Sealed by Epoxy Potting.
  • Heat Sensor Protects Motor from Burnout Due to Excessive heat from any overload condition. Automatically Resets when Motor has Cooled.
  • Motor Stator Heat Shrunk into Housing for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
  • Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
  • Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
  • Seal Leak Probes Detect Water in Seal Housing. Activate Warning Light in Control Panel.
  • Heavy 416 SST Shaft Corrosion Resistant .
  • Sleeve Bearing takes Radial Shock Load; Provides Flame Path.
  • Volute Case Handles 2" Solids. Completely Open from Inlet to Discharge 3" ANSI 125 lb. Flange.
  • Recessed Impeller Handles Stringy Trash and Slurries without Clogging or Binding. Pump Out Vanes Help Keep Trash from Seal; Reduces Pressure at Seal Faces.
  • Volute Case Handles 2" Solids. Completely Open from Inlet to Discharge. 3" ANSI 125 lb. Flange.

Specifications

Myers 3RH75M2-23 Solids Handling Pump Technical Details

  • VOLTAGE: 3ø, 230V, 60Hz
  • HORSEPOWER: 7.5 HP
  • AMP DRAW (full load): 20.5
  • MOTOR TYPE: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
  • RPM: 3450
  • MAXIMUM HEAD: up to 80'
  • MAXIMUM CAPACITY: up to 312.5 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 3" Horizontal Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 2"
  • IMPELLER TYPE: Ductile Iron, Class 65, ASTM A536, Recessed
  • CORD SIZE: 8-4; Type: SOOW, W
  • BODY CONSTRUCTION: Cast Iron

Myers Model 3RH/3RHX Solids Handling Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers Model 3RH/3RHX Solids Handling Pump Product Resources


Download Myers 3RH/3RHX Sale Brochure

Download Myers 3RH/3RHX Specification Sheet

Download Myers 3RH/3RHX Installation & Service Manual
