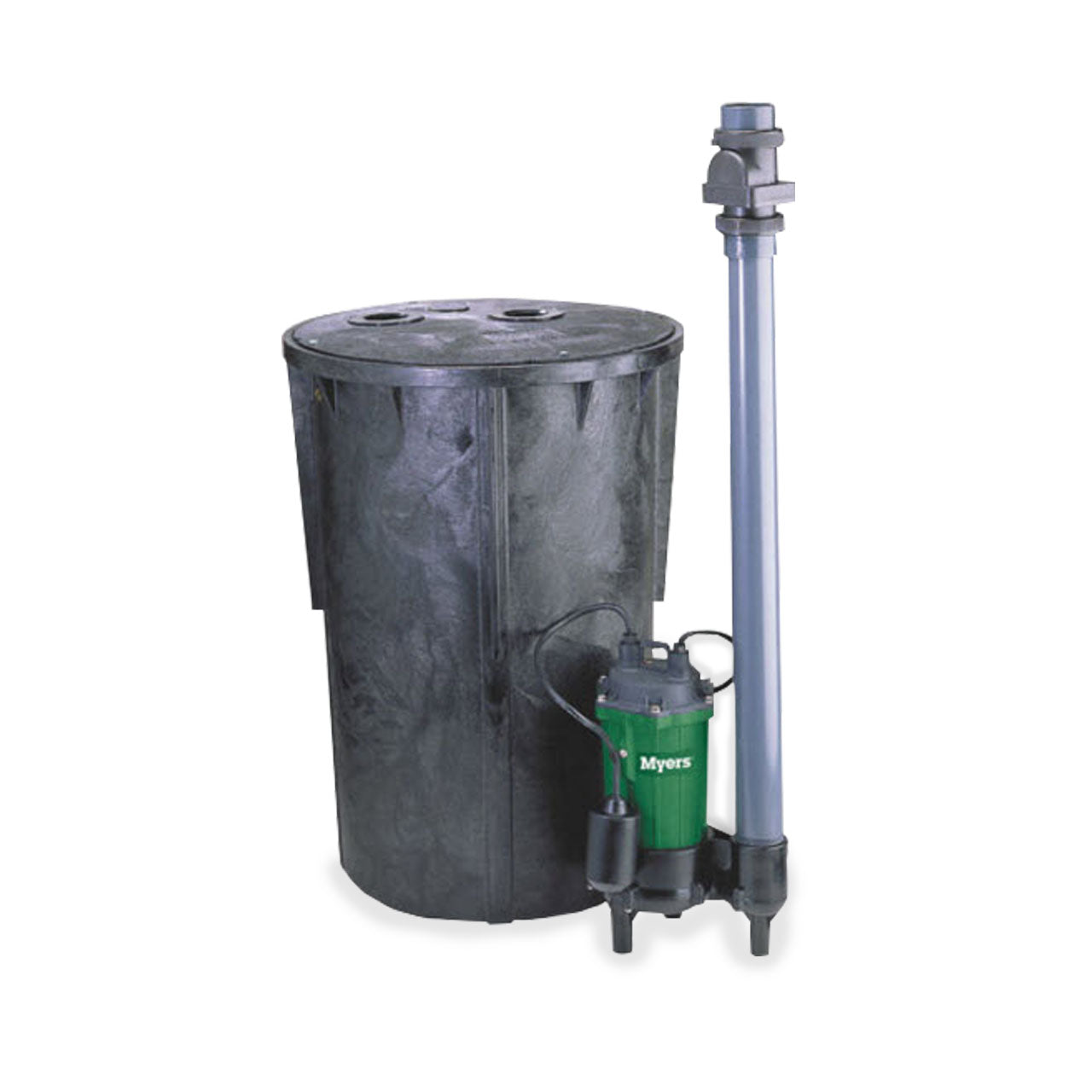

Myers CMV1830 Packaged Sewage Ejector System 0.5 HP 115V 20' Cord

Myers CMV1830 Packaged Sewage Ejector System 0.5 HP 115V 20' Cord

Discontinued or no longer available

SKU : MYR25195D060

In Stock Quantity:0

:
Brand : Myers
Shipping calculated at checkout.

Description


Discontinued - Myers

Myers CMV1830 Sewage Basin Package Description

The Myers CMV1830 Packaged Sewage Ejector System provides extra lifting power for demanding residential applications. The highly-regarded CMV5 series pump and corrosion-resistant basin make this the preferred package for extended service installations. Solids up to 2” in diameter easily pass through the specially designed recessed vortex impeller.

PACKAGE IS NOT ASSEMBLED

Myers CMV1830 Sewage Basin Package Typical Applications

  • Residential Septic Tank
  • Sewage and Large Sumps

Myers CMV1830 Sewage Basin Package Features

  • The Packaged System Includes: Pump, Basin, Sealed Cover, Internal Basin Discharge Pipe and 2” Full-Swing Check Valve
  • POWERFUL AND PROVEN CMV5 PUMP
    • Long-Life Carbon/Ceramic Seal Protects Motor Against Leakage
    • Oil-Filled Motor for Continuous Lubrication and Heat Dissipation
    • Internal Heat Sensor Prevents Overheating and Includes Automatic Reset
    • Recessed Impeller Reduces Radial Bearing Loads, Increasing Bearing Life
  • BASIN
    • 18” x 30” Corrosion-Resistant Structural Foam Construction
    • 30-Gallon Capacity
    • 4” Plastic Slip Type Inlet Hub
  • BASIN COVER: 18” Seal-Tight Design in Structural Foam: 2” Discharge Flange and Vent Flange Suitable for 2” or 3” Vent

Specifications

Myers CMV5A Sewage Pump Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1625
  • MAXIMUM HEAD: up to 18'
  • MAXIMUM CAPACITY: up to 85 GPM
  • SWITCH TYPE: Tethered Float
  • MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30"
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Thermoplastic, Recessed
  • CORD LENGTH: 20'
  • CORD SIZE: 16/3; Type: SJTW
  • BODY CONSTRUCTION: Pump: Thermoplastic / Basin: Structural Foam
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers CMV5A Sewage Pump Performance Data



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers CMV1830 Sewage Basin Package Product Resources


Download Myers CMV1830 Specification Data

Download Myers CMV1830 Installation & Service Manual
