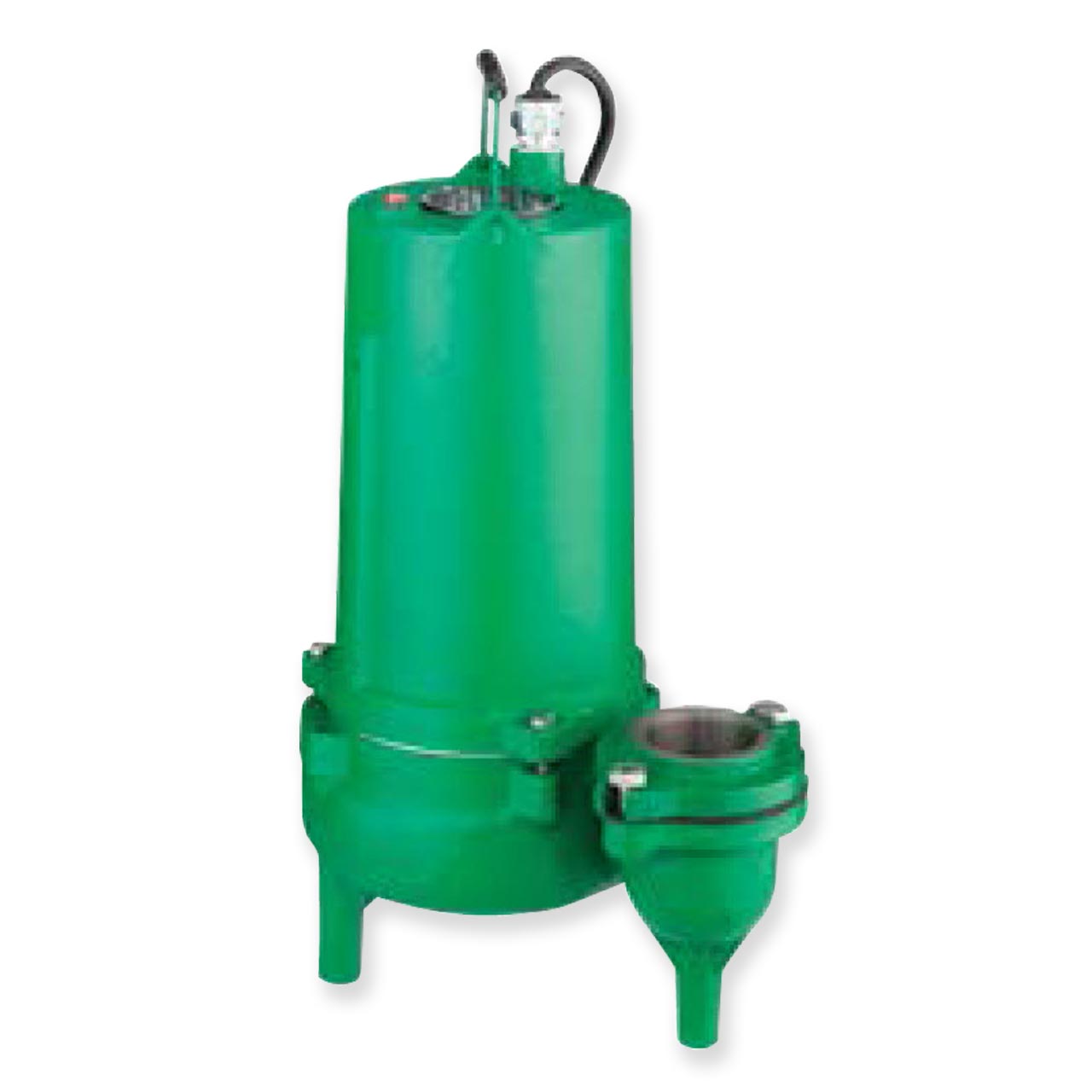

Myers MSKHS50M4 Submersible Sewage Pump 0.5 HP 460V 3PH Manual 20' Cord

Myers MSKHS50M4 Submersible Sewage Pump 0.5 HP 460V 3PH Manual 20' Cord

Discontinued or no longer available

SKU : MYR28220D009

In Stock Quantity:0

:
Brand : Myers
Shipping calculated at checkout.

Description


DISCONTINUED

Myers MSKHS Series Submersible Sewage Pump Description

The Myers MSKHS Series Submersible Sewage Ejector Pump is specifically designed to meet the demands of wastewater and sewage handling in residential and commercial building applications. The powerful motor is available in 1/2HP, 1-1/2HP and 2HP while the pump itself comes standard with a 2" NPT discharge or an optional 3" discharge.

Myers MSKHS Series Submersible Sewage Pump Typical Application

Residential and Commercial Sewage.

Myers MSKHS Series Submersible Sewage Pump Features

  • The MSKHS50 Handles Capacities up to 138 Gallons Per Minute and Heads up to 45 Feet.
  • The MSKHS Series Feature a Heavy Duty Cast Iron Construction that Provides Durability in Rugged Applications, as Well as Assisting in Dissipating Heat From the Motor, for Cooler Operation.
  • The MSKHS Series Two-Vane, Semi-Open Cast Iron Impeller, Which is Threaded to a Stainless Steel Shaft, Handles Applications Involving Higher Capacities and Heads; and is Capable of Handling up to 2 Inch Spherical Solids and Lint.
  • The MSKHS Series also Features a Precision Carbon and Ceramic-Faced Mechanical Shaft Seal that is Extensively Lapped, Providing for a Long, Leak Proof Life.
  • The MSKHS Series Pump Have an Oil-Filled Motor that Provides Superior Cooling Characteristics, Allowing the Motor to Run Cool and Quiet for Years. This Oil-Filled Design also Provides Permanent Lubrication of the Shaft Bearings, Minimizing Maintenance and Extending the Service Life of the Pump.
  • To Protect Against Overheating, Single-Phase Motor Windings Contain an Automatic Reset Thermal Overload: Three Phase Motors Require a Magnetic Starter with Overload Protection Located in the Accessory Control Panel.

Specifications

Myers MSKHS50M4 Submersible Sewage Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 3.0
  • MOTOR: Oil Filled with Automatic Reset Thermal Overload
  • RPM: 3450
  • MAXIMUM HEAD: up to 45'
  • MAXIMUM CAPACITY: up to 135 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Cast Iron, Two-Vane, Semi-Open
  • CORD LENGTH: 20'
  • CORD SIZE: 16/4; Type: STWA
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140˚ F

Myers MSKHS Series Submersible Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers MSKHS Series Submersible Sewage Pump Product Resources


Download Myers MSKHS Series Submersible Sewage Pump Sales Brochure

Download Myers MSKHS Series Submersible Sewage Pump Installation & Service Manual
