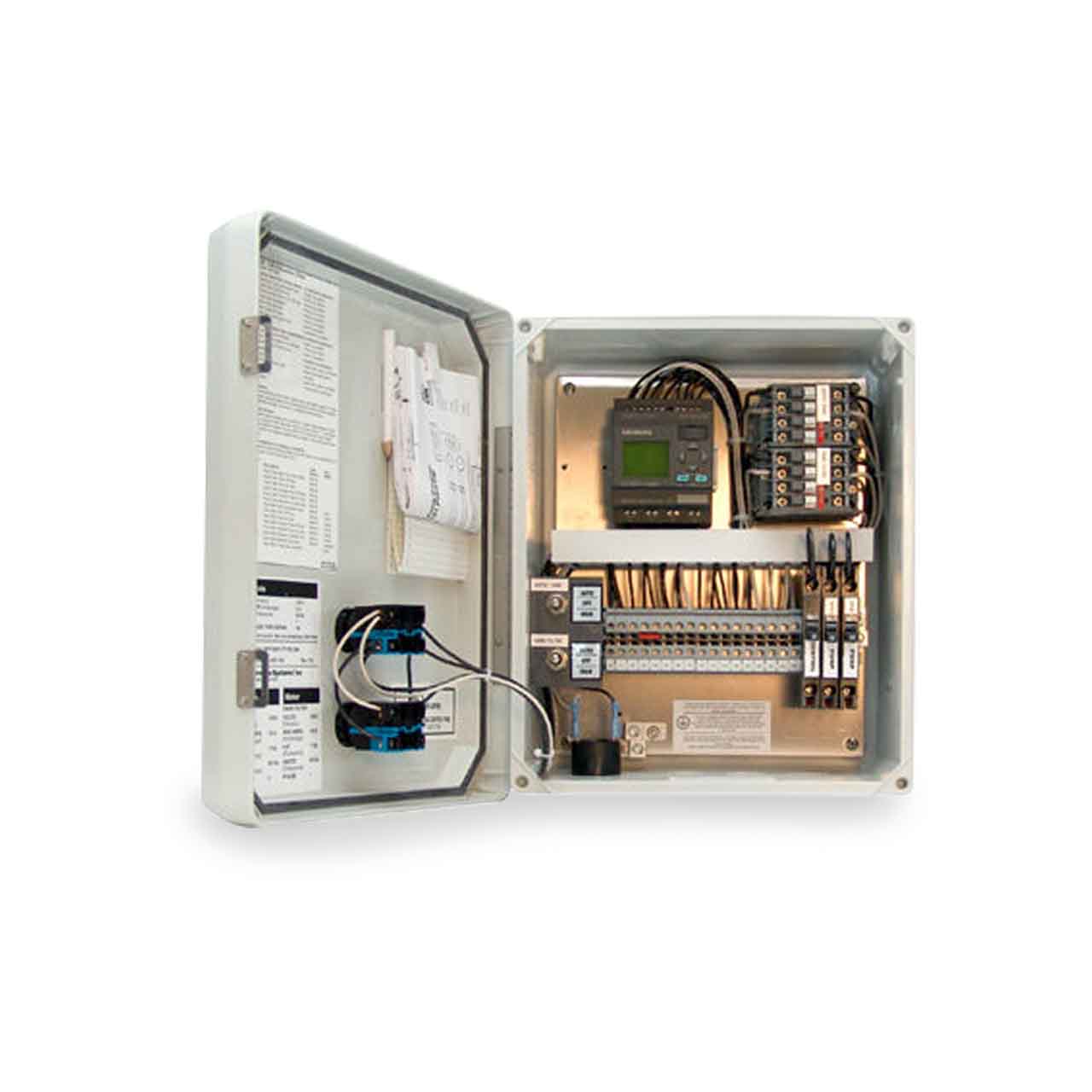

Orenco's MVP SSF control panels are digital, programmable panels used to control two pumps when pumping from point "A" (first pump) to point "B," and then from point "B" (second pump) to point "C," and to provide alarm functions in systems where controls for motors in series are required. Interlocked controls prevent the first (upstream) pump from running if a high-level alarm condition occurs in the down-stream pump.

MVP SSF Control Panels include easy-to-use, programmable logic units that incorporate multiple timing and logic functions, including multiple timer intervals to adjust for changing flow conditions.

MVP SSF panels offer several standard functions, including elapsed time meters, counters, digital indication of float switch status, different alarm/light signals for varying alarm conditions, and the ability to use one type of float switch for all functions. In dual-mode MVP SSF control panels, the downstream pump can be configured in the field for demand dose or time-dose applications.

Orenco MVP SSF Series Simplex Control Panel Typical Application

• Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.

Orenco MVP SSF Series Control Panel Features and Benefits

• 120-VAC Controls Circuit Breaker
• 120- or 120/240-VAC Pump Circuit Breaker
• Motor-Start Contactors for Pump Circuits
• Automatic/Off/Manual (Auto/Off/Man) Toggle Switch
• 7/8-in (22-mm) Red Visible Alarm
• 95 dB Audible Alarm
• Automatic Alarm Silence Reset
• Built-In Elapsed Time Meter
• Built-In Event Counter
• Type 4X(IP 66) Rated Enclosure
• Mechanical or Mercury Float Switches Ordered Separately

Orenco MVP SSF Series Simplex Control Panel Optional Features

---

HT - Heater - Anti-condensation heater; self-adjusting: radiates additional wattage as temperature drops

---

PL - Power Light - 7/8-in. (22-mm) diameter green lens; UL Type 4X (IP66), 1 W LED light

---

SA - Surge Arrestor - Status light on unit; protects incoming power supply from electrical surges

---

IR - Intrinsically Safe Control Relays - Listed per UL 698A, for Class 1 Div. 1, groups A, B, C, D hazardous locations (requires larger enclosure)

---

RO - Redundant Off - DIN rail mount; provides a secondary off; sounds alarm upon low level condition

---

PRL - Pump Run Lights - 7/8-in. (22-mm) diameter green lens; UL Type 4X (IP66), 1W LED

---

---

Orenco MVP SSF Series Simplex Control Panel Technical Details

• Hand-Off-Auto Switch
• 10A Control Breaker (Requires 120 VAC control power)
• 10A (115V) or 16A (230V) Panel Rating
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Enclosure: 9.5"H x 7.3"W x 5"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco MVP SSF Series Simplex Control Panel Product Resources

Brochure
Orenco MVP SSF Series Control Panel Product Sheet: APS-CP-MVP-1

Installation and Operation Manuals
Orenco MVP SSF1 PTRO DM Series Installation Manual Document List: EIN-CP-SSF-680

Orenco MVP SSF1 PTRO DM Installation Instructions: EIN-CP-GEN-1

Orenco MVP SSF1 PTRO DM Series Control Panel Wiring Diagram: EDW-WD-SSF-159

Orenco MVP SSF1 PTRO DM Float Arrangement Diagram - Septic Tank: EDW-FA-SSF-110

Orenco MVP SSF1 PTRO DM Float Arrangement Diagram - Sand Filter (Demand): EDW-FA-SSF-223

Orenco MVP SSF1 PTRO DM Float Arrangement Diagram - Sand Filter (Timed): EDW-FA-SSF-224

Orenco MVP SSF PTRO DM Series Control Panel Operation Manual: EIN-CP-OP-2105

Orenco MVP SSF PTRO DM Series Control Panel Setting Instructions: EIN-CP-SET-2268

Orenco MVP Contract Adjustment and Time and Date Settings: EIN-CP-SET-111

Orenco MVP SSF PTRO Series Control Panel Operation Manual: EIN-CP-OP-68

Orenco MVP SSF PTRO Series Control Panel Setting Instructions: EIN-CP-SET-60

Orenco MVP SSF PTRO PT Series Control Panel Operation Manual: EIN-CP-OP-169

Orenco MVP SSF PTRO DM RO Series Control Panel Setting Instructions: EIN-CP-OP-2113

Orenco MVP SSF PTRO RO Series Control Panel Operation Manual: EIN-CP-OP-152

Orenco MVP SSF PTRO RO Series Control Panel Setting Instructions: EIN-CP-SET-104

Orenco MVP SSF PTRO PT Series Control Panel Setting Instructions: EIN-CP-SET-115

Orenco MVP SSF PTRO PTRO Series Control Panel Operation Manual: EIN-CP-OP-55

Orenco MVP SSF PTRO PTRO Series Control Panel Setting Instructions: EIN-CP-SET-53

Wiring Diagrams
Orenco MVP SSF1 PTRO PRTO Series Control Panel Wiring Diagram: EDW-WD-SSF-110

Float Arrangement Diagrams
Orenco MVP SSF Series Control Panel Float Arrangement Diagram: EDW-FA-SSF-215

Orenco MVP SSF RO Series Control Panel Float Arrangement Diagram: EDW-FA-SSF-216

Orenco MVP SSF PT Series Control Panel Float Arrangement Diagram: EDW-FA-SSF-211

Orenco MVP SSF PTRO Series Control Panel Float Arrangement Diagram: EDW-FA-SSF-110

Orenco MVP SSF PTRO Series Control Panel Float Arrangement Diagram Sand Filter Side: EDW-FA-SSF-210

Orenco MVP SSF DM RO Series Control Panel Float Arrangement Diagram Sand Filter Side: EDW-FA-SSF-225

Splice Box Wiring Diagrams
Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram: EDW-SB-SSF-125

Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram YBR: EDW-SB-SSF-225

Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram YG: EDW-SB-SSF-226

Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram YGRW: EDW-SB-SSF-127

Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram (YG)RW: EDW-SB-SSF-218

Orenco MVP SSF PTRO Series Control Panel Splice Box Diagram YGRW: EDW-SB-SSF-220

Misc. Documents
Orenco MVP SSF PTRO/DM Series Control Panel Reference Chart: EIN-CP-REF-166

Orenco MVP SSF Series Control Panel Reference Chart: EIN-CP-REF-167
