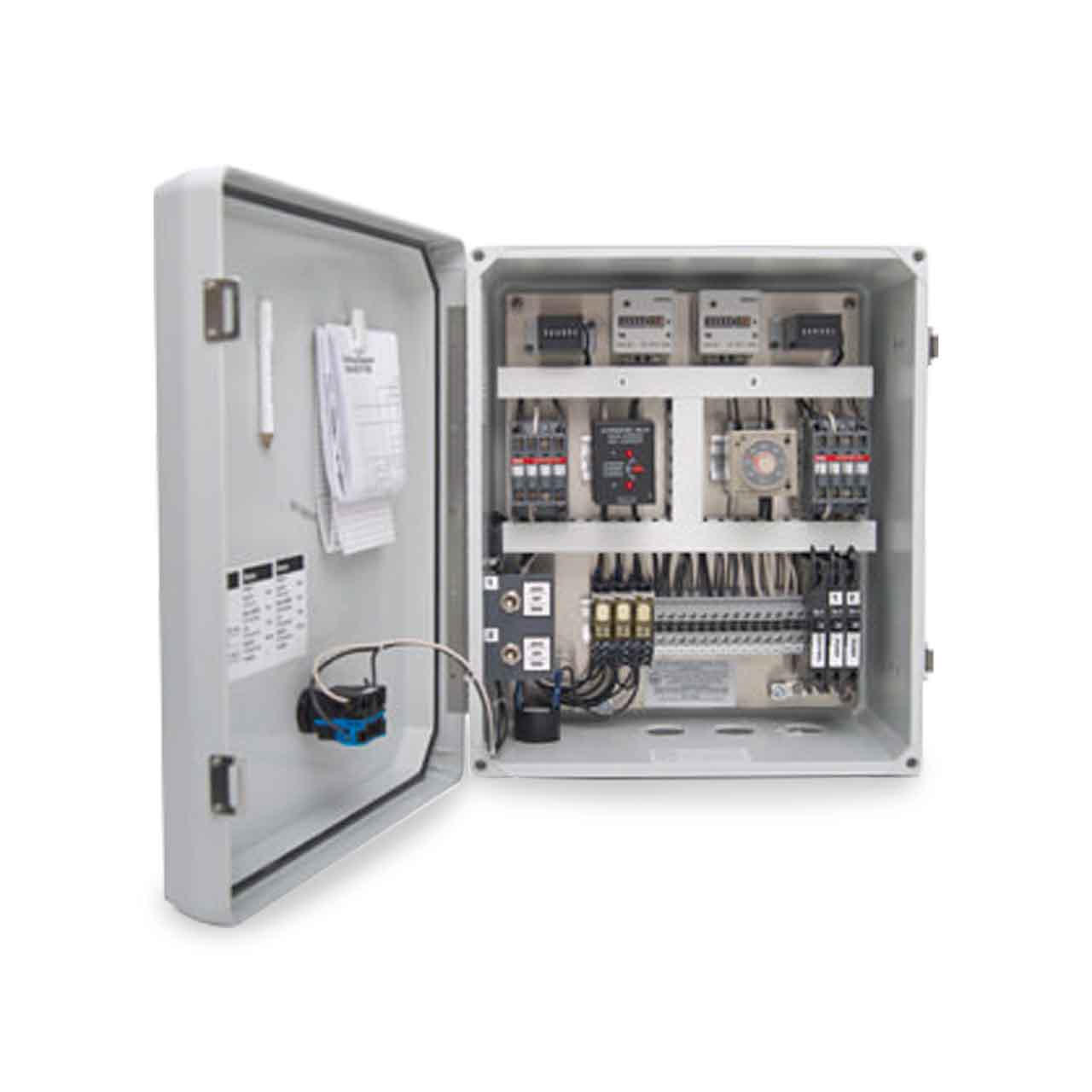

Orenco Duplex Control Panels are specifically engineered for pressure sewer (STEP) systems and onsite septic treatment systems that require the use of two alternating pumps. Standard features include circuit breakers, an automatic/manual/off motor control toggle for each pump, an audio/visual high level alarm, reset, and a duplex alternator. Orenco Panels are designed for use with mechanical and/or mercury float switches. Listed per UL 508; a UL-Canada listing is available.

Orenco DAX Series Duplex Control Panel Typical Application

• Dual Pumps, Alarms, and Other Equipment as Specified in Pressure Sewers and Onsite Septic Systems.
• Sewage Lift Stations

Orenco DAX Series Duplex Control Panel Features and Benefits

• Low-Cost
• 120-VAC Controls Circuit Breaker
• 120- or 120/240-VAC Pump Circuit Breakers
• Motor-Start Contactors for Pump Circuits
• Automatic/Off/Manual (Auto/Off/Man) Toggle Switch
• 7/8-in (22-mm) Red Visible Alarm
• 95 dB Audible Alarm
• Automatic Alarm Silence Reset
• Type 4X (IP 66) Rated Enclosure
• Mechanical or Mercury Float Switches Ordered Separately

Orenco DAX Series Duplex Control Panel Optional Features

---

PT - Programmable Timer - Repeat cycle from 0.05 seconds to 30 hours; separate variable controls for OFF & ON time periods

---

RO - Redundant Off - DIN rail mount; provides a secondary off; sounds alarm upon low level condition

---

CS- Current Sensor

---

ETM - Elapsed Time Meter - 7-digit, non-resettable; limit of 99,999 hours; accurate to 0.01 hours

---

CT - Event Counter - 6-digit; non-resettable

---

HT - Heater - Anti-condensation heater; self-adjusting: radiates additional wattage as temperature drops

---

SA - Surge Arrestor - Status light on unit; protects incoming power supply from electrical surges

---

PRL - Pump Run Light - 7/8-in. (22-mm) diameter green lens; UL Type 4X (IP66), 1 W LED light

---

PL - Power Light - 7/8-in. (22-mm) diameter green lens; UL Type 4X (IP66), 1 W LED light

---

Orenco DAX Series Duplex Control Panel Technical Details

• Panel Rating: 120 VAC, 14 FLA, 3/4 HP
• Hand-Off-Auto Switch
• 10A Control Breaker (Requires 120 VAC control power)
• 2 - 20A 1 Pole Pump Breakers
• See Related Products Tab for typical Float Switch Configurations
• Audible Alarm: 95 dB at 24", Warble Tone Sound
• Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
• Duplex Alternator: 120 VAC, Cross Wired Style for Independent Lag Pump Function. Selector Switch for Locking One Pump into Lead Position
• Enclosure: 15.5"H x 13.3"W x 6.7"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
