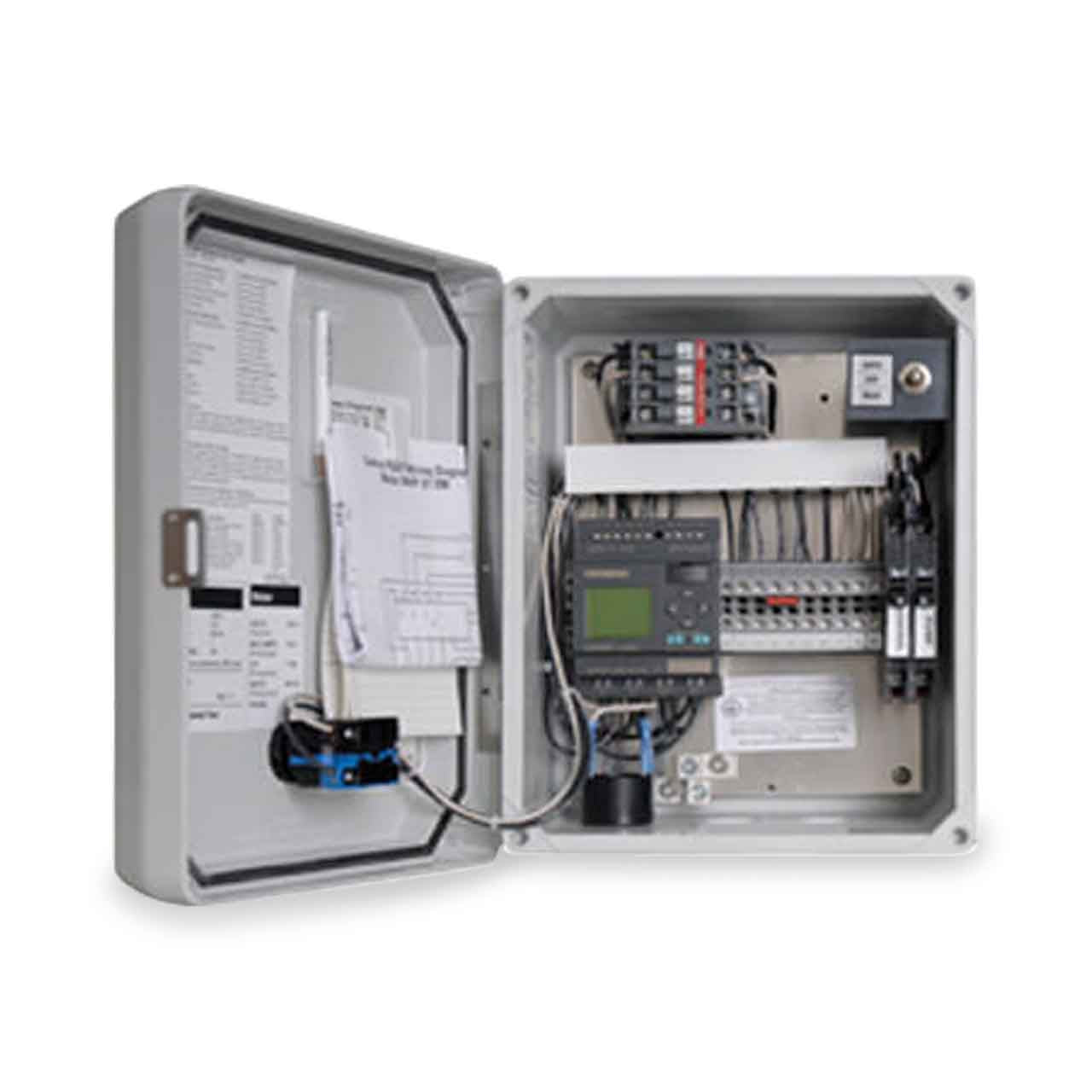

Orenco "S" Series Simplex Off-The-Shelf Control Panel

Price: $438.78
Quantity:
+ -
Usually ships within 24 hours.
In Stock Quantity: 0
SKU: ONCS1
Off The Shelf S Series Panels:

Select From the Normally In-Stock Panels Above or Build A Custom Panel


Update price


Shipping Weight:
8.0 LBS
Shipping Dimensions
Length: 10 In
Width: 15 In
Height: 12 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco® S-Series Simplex Control Panels are electromechanical panels for controlling single pumps. Standard features include and Automatic/Off/Manual (Auto/Off/Man) toggle switch, controls circuit breaker, pump circuit breaker, automatic motor control operation and an audible.visible high water level alarm with auto reset.

All S-Series control panels have a 120 VAC controls circuit breaker. S1 panels have a 120 VAC pump circuit breaker, while S2 panels have a 240 VAC pump circuit breaker.

All S-Series panels can be used with both mechanical and mercury float switches.

Orenco S Series Simplex Control Panel Typical Application

  • Orenco® S-Series Simplex Control Panels control single pumps in effluent sewer (STEP) systems, onsite septic systems, and for pump control into conventional gravity sewer systems.

Orenco S Series Simplex Control Panel Features and Benefits

  • Low-Cost
  • 120-VAC Controls Circuit Breaker
  • 120- or 120/240-VAC Pump Circuit Breaker
  • Motor-Start Contactor for Pump Circuit
  • Automatic/Off/Man) Toggle Switch
  • 7/8-in (22-mm) Red Alarm Light
  • 95 dB Audible Alarm
  • Automatic Alarm Silence Reset
  • Type 4X(IP 66) Rated Enclosure
  • Timer Option Available

Orenco S Series Simplex Control Panel Optional Features


IR - Intrinsically Safe Control Relays - Listed per UL 698A, for Class 1 Div. 1, Groups A, B, C, D Hazardous Location (requires larger enclosure)


PT - Programmable Timer - Repeat Cycle from 0.05 Seconds to 30 Hours; Separate Variable Controls for OFF & ON Time Periods


RO - Redundant Off - DIN Rail Mount; Provides a Secondary Off; Sounds Alarm Upon Low Level Condition


DS - Disconnect Switch


ETM - Elapsed Time Meter - 7-Digit, Non-Resettable; Limit of 99,999 Hours; Accurate to 0.01 Hours


CT - Event Counter - 6-digit; Non-Resettable


HT - Heater - Anti-Condensation Heater; Self-Adjusting: Radiates Additional Wattage as Temperature Drops


PRL - Pump Run Light - 7/8-in. (22-mm) Diameter Green Lens; UL Type 4X (IP66), 1 W LED Light


PL - Power Light - 7/8-in. (22-mm) Diameter Green Lens; UL Type 4X (IP66), 1 W LED Light


SA - Surge Arrestor - Status Light On Unit; Protects Incoming Power Supply from Electrical Surges


Orenco S Series Simplex Control Panel Technical Details

  • Panel Ratings: 120 VAC: 17 FLA, 1 HP/ 240 VAC: 17 FLA, 3 HP
  • Auto/Off/Man Toggle Switch: Single Pole, Double-Throw HOA Switch
  • Controls Circuit Breaker: 10A, OFF/ON Switch, Single Pole, DIN Rail Mounting with Thermal Magnetic Tripping Characteristics
  • Pump Circuit Breaker: 20A, OFF/ON Switch, Single Pole (120 VAC) or Double Pole (240 VAC), DIN Rail Mounting with Thermal Magnetic Tripping Characteristics.
  • See Related Products Tab for Typical Float Switch Configurations
  • Audible Alarm: 95 dB at 24" (610 mm), Warble Tone Sound; UL Type 4X (IP66)
  • Audible Alarm Silence Relay: Automatic Reset, DIN Rail Mount
  • Visible Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", UL Type 4X (IP66), 1 W LED Light
  • Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Orenco S Series Simplex Control Panel Product Resources

Brochure
Orenco S Series Simplex Control Panel Technical Data Sheet: NTD-CP-S-1

S1 Series Simplex Panel Wiring Diagrams
Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-1

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-4

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-14

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-20

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-118

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-126

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-152

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-156

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-159

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-450

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-501

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-503

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-504

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-550

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-569

Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-1256

S2 Series Simplex Panel Wiring Diagrams
Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-2

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-5

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-6<

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-7

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-8

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-31

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-72

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-127

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-157

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-160

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-505

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-507

Orenco S2 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-508

S Series Simplex Splice Box Wiring Diagrams
Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-1

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-2

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-3

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-4

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-5

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-6

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-FS-S-6

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-7

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-11

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-12

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-13

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-14

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-SB-S-15

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-16

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-18

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-19

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-501

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-503

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-505

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-507

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-SB-S-508

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-514

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-515

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-516

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-517

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-518

Orenco S Series Simplex Splice Box Wiring Diagram: EDW-WD-SB-S-519

S Series Simplex Float Arrangement Diagrams
Orenco S Series Float Arrangement Diagram: EDW-FA-S-1

Orenco S Series Float Arrangement Diagram: EDW-FA-S-2

Orenco S Series Float Arrangement Diagram: EDW-FA-S-3

Orenco S Series Float Arrangement Diagram: EDW-FA-S-4

Orenco S Series Float Arrangement Diagram: EDW-FA-S-5

Orenco S Series Float Arrangement Diagram: EDW-FA-S-501

Orenco S Series Float Arrangement Diagram: EDW-FA-S-502

Orenco S Series Float Arrangement Diagram: EDW-FA-S-503

Orenco S Series Float Arrangement Diagram: EDW-FA-S-504

Orenco S Series Float Arrangement Diagram: EDW-FA-S-505

Orenco S Series Float Arrangement Diagram: EDW-FA-S-12
