DGD Series cartridges are manufactured from 100% pure polypropylene and are
sized for use in our Big Blue® filter housings.

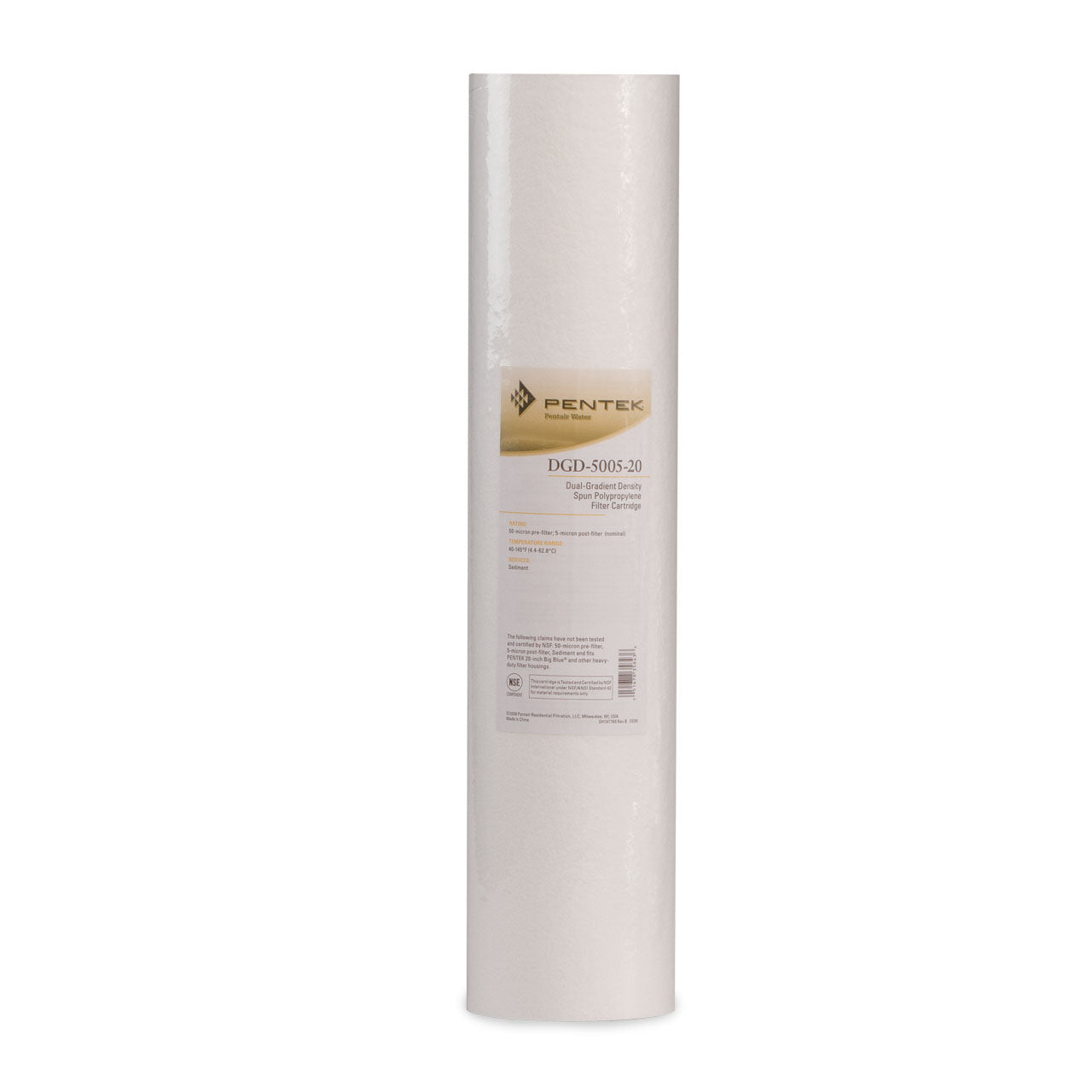

The Pentek DGD-5005-20 is designed for purity and will not impart taste,
odor or color to the liquid being filtered. Additionally, the polypropylene
construction provides superior chemical resistance and is not prone to
The DGD Series' advanced design combines selective final filtration with
appropriate pre-filtration to achieve up to three times the dirt-holding
capacity of similar size sediment cartridges and even greater capacity than
standard spun or string-wound cartridges.
This performance enhancement is achieved by combining two separate gradient layers in a single 5 micron sediment filter cartridge. The larger diameter of the pre-filter reduces the
particle load to the post filter, allowing it to operate at higher
velocities. The effective filter depth is increased to a full 233% of
standard spun-polypropylene or string-wound filters. This increased depth
provides for very high particulate reduction efficiencies and added loading
The unique design and performance characteristics of the 5 micron sediment filter cartridge make them an excellent choice for all residential, rural,
municipal and commercial applications.
Pentek DGD Filter Features
- Manufactured from Pure 100% Polypropylene
- Designed for Purity and Chemical Compatibility
- Spun Fibers Form a True Gradient Density from Outer to Inner Surface
Pentek DGD-5005-20 Filter Cross Reference Guide:
- Aqua Sun International SWS-BB
- Flow-Max Full-Flow (BB) 10" and 20" FPMB-BB5-20
Pentek DGD Series Carbon Filter Cartridge Technical Data
