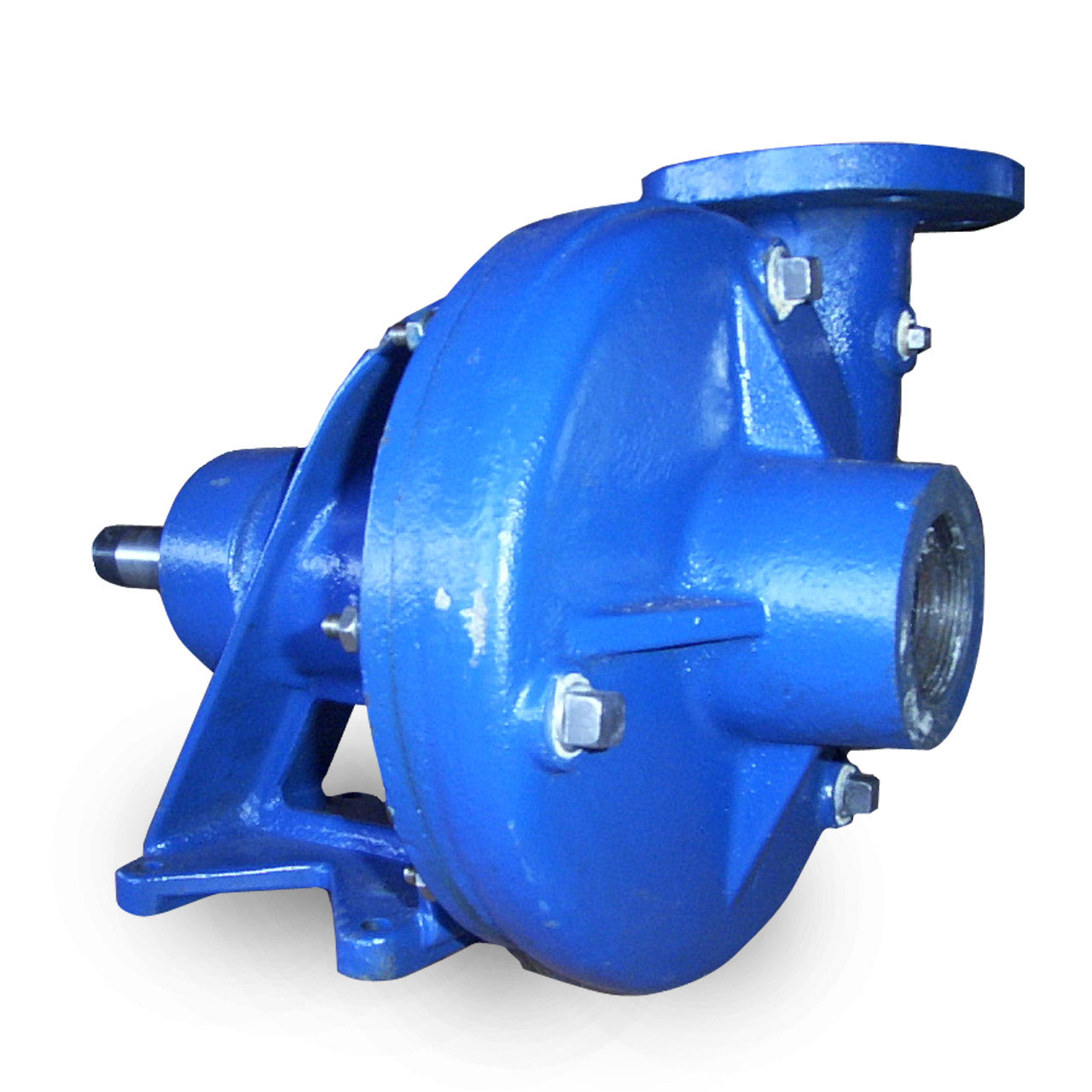

Power-Flo PF2020HCU End Suction Centrifugal Pump

Power-Flo PF2020HCU End Suction Centrifugal Pump


Discontinued or no longer available.

SKU : PF2020HCU

In Stock Quantity:0

:
Brand : Power-Flo
Shipping calculated at checkout.
 More payment options

Pickup available at Coeur d'Alene

Usually ready in 24 hours

Description

Discontinued - Power-Flo

Power-Flo End Suction Centrifugal Pump Description

Suitable for general industrial use such as liquid transfer or as booster pumps.

Power-Flo End Suction Centrifugal Pump Typical Application

  • Designed For Marine, Municipal and Industry
  • Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.

Power-Flo End Suction Centrifugal Pump Features

  • DISCHARGE: 2" 125lb. ANSI, Discharge can be Placed in 8 Different Locations Depending on Piping Requirements
  • SUCTION: 2" NPT
  • LIQUID TEMPERTURE: 180°F Continuous
  • BODY: Cast Iron, ASTM Class 30, with Air Vent, Vacuum Pressure and Drain Plugs
  • PEDESTAL: Cast Iron, Class 30
  • IMPELLER: Enclosed Type, Dynamically Balanced, ISO G6.3, Bronze 81-3-7-9
  • WEAR RING: Teflon “U” Cup
  • SHAFT: Steel
  • SHAFT SLEEVE: Bronze
  • HARDWARE: Steel
  • SEAL: Single Mechanical, Self Lubrication, Carbon/Ni-Resist/Buna-N
  • BEARING - PUMP END: Single Row, Ball, Pre-Greased at Factory, Load- Radial & Thrust
  • BEARING - PUMP END: Double Row, Ball, Pre-Greased at Factory, Load- Radial & Thrust
  • WARRANTY: 1 Year

Power-Flo PF2020HCU Specifications

  • DISCHARGE SIZE: 2" 125 lb Flange
  • INLET SIZE: 2" NPT
  • MAXIMUM CAPACITY: 262 GPM
  • MAXIMUM HEAD: 160'
  • IMPELLER MATERIAL: Bronze 81-3-7-9, Enclosed Type, Dynamically Balanced, ISO G6.3
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 160°F Continuous

Power-Flo End Suction Centrifugal Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo End Suction Centrifugal Pump Product Resources


Download Power-Flo End Suction Centrifugal Pump Catalog Sheet

Download Power-Flo End Suction Centrifugal Pump Installation Manual

Power-Flo Warranty

Sump/Effluent & Dewatering Pumps - 2 Years Limited Warranty

Manufacturer warrants, to the immediate purchaser and subsequent initial owner during the warranty period, every new pump to be free from defects in material and workmanship under normal use and service, when properly used and maintained, for a period of eighteen (18) months from date of manufacture or twelve (12) months from date of installation (whichever comes first). Failure due to wear due to excessive abrasives is not covered. The initial owner is the purchaser who first uses the pump after its initial installation, or for non-permanent installation, the first owner who uses the pump. The date of installation shall be determined by a dated sales receipt noting the model and serial number of the pump. The dated sales receipt must accompany the returned pump. Product will be repaired, replaced or re-manufactured at Manufacturer’s option. No allowance will be made for shipping charges, damages, labor or other charges that may occur due to product failure, repair or replacement. This warranty does not apply to and there shall be no warranty for any material or product that has been disassembled without prior approval of Manufacturer, subjected to misuse, misapplication, neglect, alteration, accident or act of God; that has not been installed, operated or maintained in accordance with Manufacturer’s installation instructions; that has been exposed to outside substances including but not limited to the following: sand, gravel, cement, mud, tar, hydrocarbons, hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels or feminine sanitary products, etc. in all pumping applications. The warranty set out in the paragraph above is in lieu of all other warranties expressed or implied; and we do not authorize any representative or other person to assume for us any other liability in connection with our products. Contact Manufacturer at: 1-877-24PUMPS or www.powerfl opumps.com, Attention: Customer Service Department, to obtain any needed repair or replacement of part(s) or additional information pertaining to our warranty. MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY. Some states do not allow limitations on the duration of an implied warranty, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
