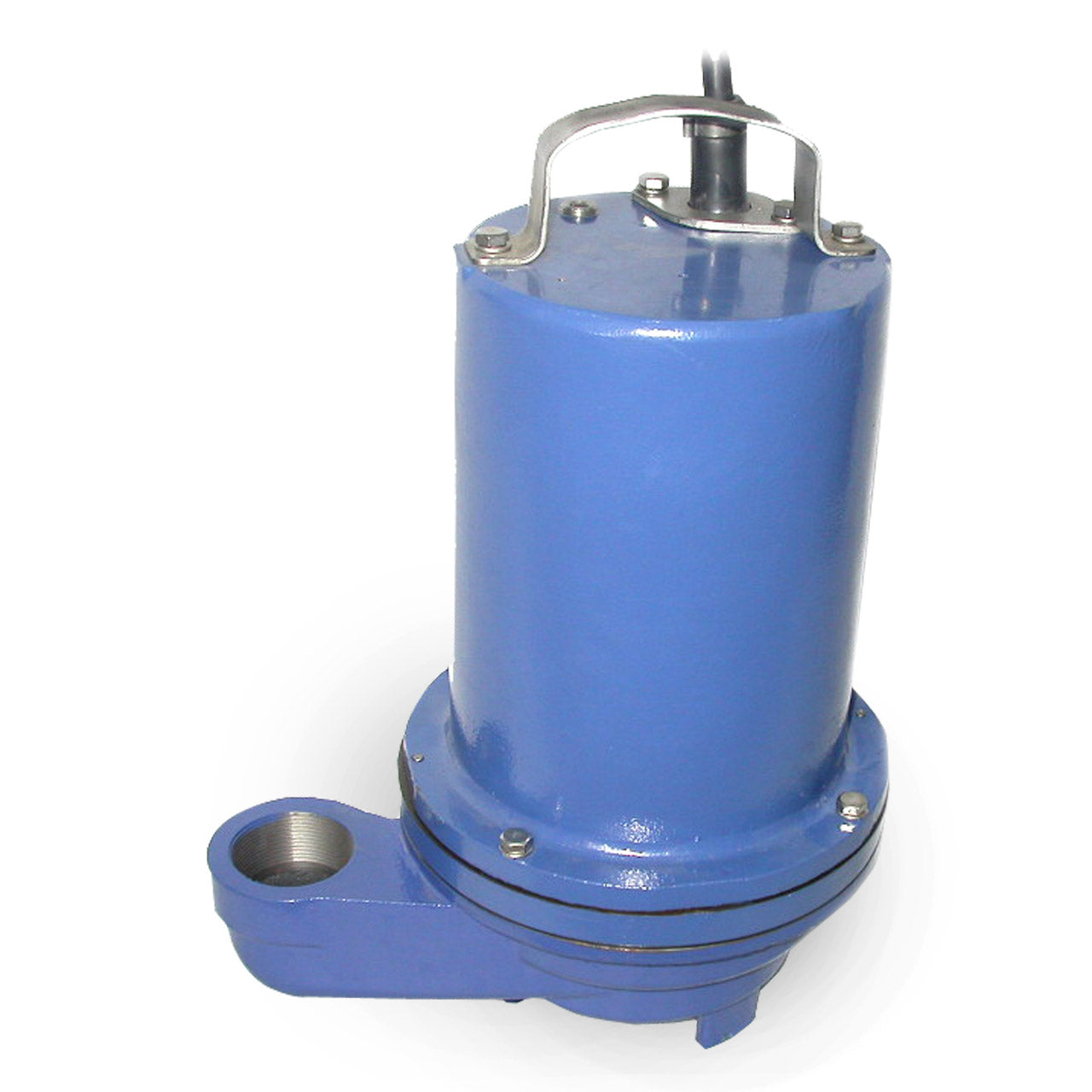

Power-Flo PFSTEP512 Effluent Pump 0.5 HP 115V 1PH Manual 20' Cord

Price: $1,782.90
Quantity:
+ -
Usually ships within 3 weeks
SKU: PFPFSTEP512


Shipping Weight:
80.0 LBS
Shipping Dimensions
Length: 12 In
Width: 12 In
Height: 12 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PFSTEP512 Description

The Power-Flo PFSTEP512 Submersible Pump is Specifically.

Power-Flo PFSTEP512 Typical Application

  • Submersible Septic Tank / Effluent Designed to Meet the Demands of Residential Septic Tank Effluent Applications.

Power-Flo PFSTEP512 Features

  • Class 30 Cast Iron Housing and Volute
  • Oil-Filled Motor for Lubrication and Cooling
  • Uses Single-Row Ball-Bearing Construction
  • Stainless Steel Shaft and Hardware

Power-Flo PFSTEP512 Technical Details

  • HORSEPOWER: 0.5 HP
  • VOLTAGE: 115 V
  • PHASE: 1 Ph
  • HERTZ: 60 Hz
  • RPM: 1750 RPM
  • FULL LOAD AMPS: 14.0
  • SOLIDS HANDLING: 0.75" Spherical Solids
  • DISCHARGE: 2" FNPT / Vertical
  • CORD LENGTH: 20' Power Cord
  • MAX HEAD: 80.0'
  • MAX FLOW RATE: 80 GPM
  • IMPELLER TYPE: Single Vane Enclosed Polypropylene with Stainless Steel Insert
  • LEVEL CONTROL OPTIONS: Manual (No Float)

Power-Flo PFSTEP512 Pump Performance Curve


Power-Flo PFEV522 Model Comparison

PFEV522 Replaces the following units; Barnes model EHV412, EH512L, STEP512SS, PACO model PIP702B, Liberty model FL51A, Little Giant model 14EH-CIM, 10E-CIA-RFS, Myers model ME50S-AA, Goulds model WE0511HH, WE0511H, EP0511F, Hydromatic OSP50A1, SHEF50M1, SPD50MH1 Dayton model 4HU70, 4HU75, 4LE10, 3BB83, Zoeller model N163, N161, M137
