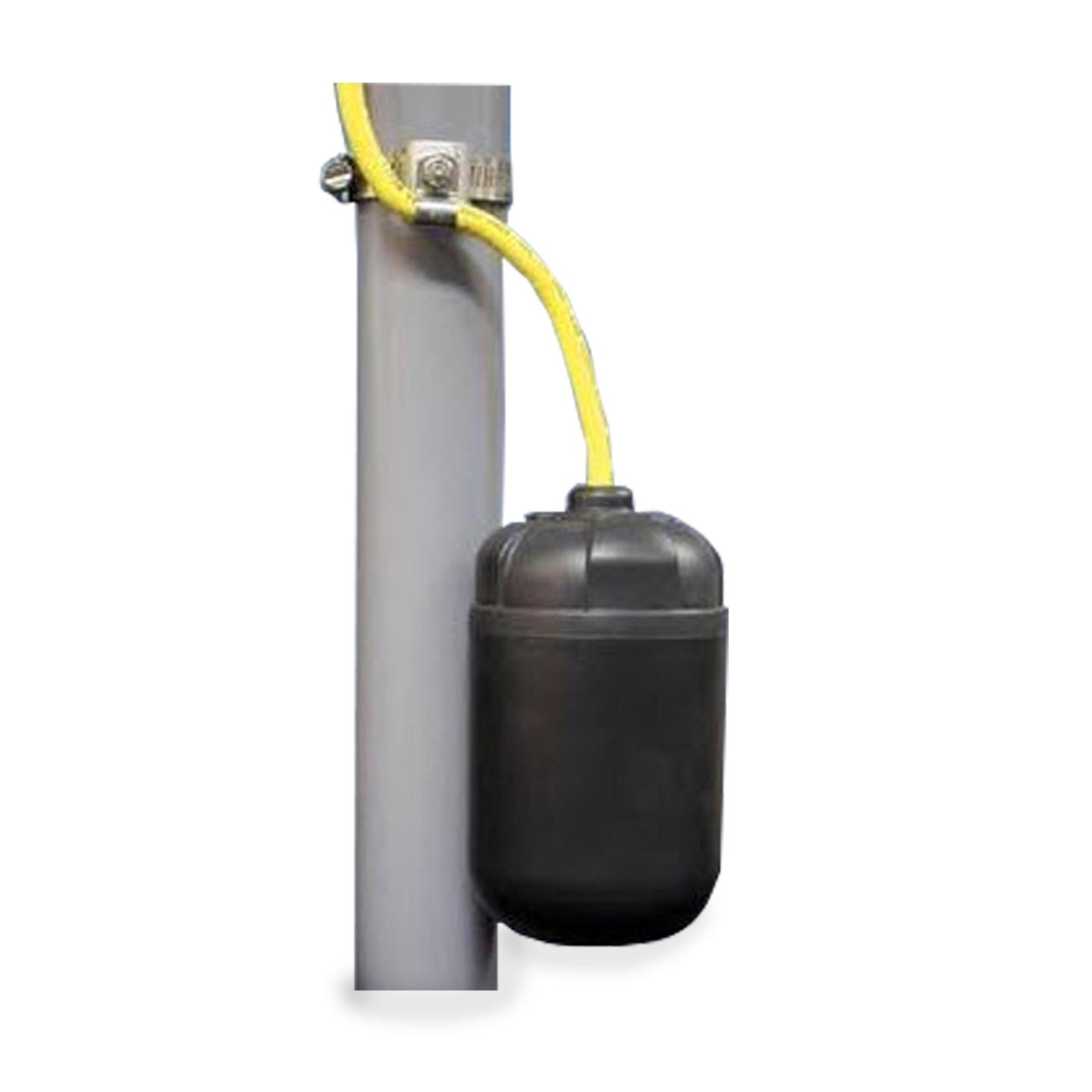

SJE-Rhombus 20HTMD2WP HiTempMaster Pump Switch Pump Down 250V 20' Cord W/plug
SJE-Rhombus 20HTMD2WP HiTempMaster Pump Switch Pump Down 250V 20' Cord W/plug
SKU : SJE1043549
In Stock Quantity:0
:
Brand
:
Regular price
$128.54 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus HiTempMaster® Pump Switch Description
Mechanically-Activated Pump Switch for High Temperature Sump Applications.
The SJE HiTempMaster™ pump switch is a mechanically-activated wide-angle pump switch designed specifically for high temperature sump applications up to 200 degrees Fahrenheit. It provides automatic control of pumps up to 13FLA, 78 LRA, 125V or 250V.
The SJE HiTempMaster™ pump switch features a unique float housing with a twin wall design (patent pending) to protect internal components from heat and moisture. The switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.
SJE-Rhombus HiTempMaster® Pump Switch Typical Application
- Mechanically Activated, Wide-Angle Float Switch Designed to Activate Pumps in High Temperature Applications.
SJE-Rhombus HiTempMaster® Pump Switch Features
- Rated for Use in Liquids up to 200 Degrees Fahrenheit (93.3°C).
- Mechanically-Activated, Snap Action Contacts.
- High Impact, Corrosion Resistant, Polypropylene Float Housing.
- Not Sensitive to Rotation or Turbulence.
- 10 ft Flexible 16 Gauge Cord, 2 Conductor (UL,CSA) SJOW, Water-Resistant (CPE) Jacket
- Includes 125 or 250 VAC Piggy-Back Plug
- Adjustable Pumping Range of 8-36 Inches (20.3-91.4 cm)
- Twin Wall Design of Float Housing (patent pending) Protects Internal Components from Heat and Moisture.
- CSA Certified.
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus HiTempMaster® Control Switch Specifications
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOOW, Water-Resistant, (CPE)
- FLOAT: 3.18" Diameter x 5.58" Long (8.1 cm x 14.2 cm), High Impact, Corrosion Resistant, Polypropylene Housing for use in Water up to 200°F (93°C)
- MAXIMUM WATER DEPTH: 33 Feet (10 meters) or 13 PSI (90 kPa)
- ELECTRICAL 125 VAC 50/60Hz Single Phase:
- Maximum Pump Running Current: 13 amps
- Maximum Pump Starting Current: 78 amps
- ELECTRICAL 250 VAC 50/60Hz Single Phase:
- Maximum Pump Running Current: 13 amps
- Maximum Pump Starting Current: 78 amps
- CSA Certified.
NOTE: This Switch is not Recommended for Controlling:
- Electric Loads Less Than 100 Milliamps, 12 VAC
- Non-Arcing Electric Loads
NOTE: This Switch Must be used with Pumps that Provide Integral Thermal Overload Protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus HiTempMaster® Control Switch Product Resources
SJE-Rhombus HiTempMaster Control Switch Catalog Page
SJE-Rhombus Control Switch Features and Benefits
SJE-Rhombus Control Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
