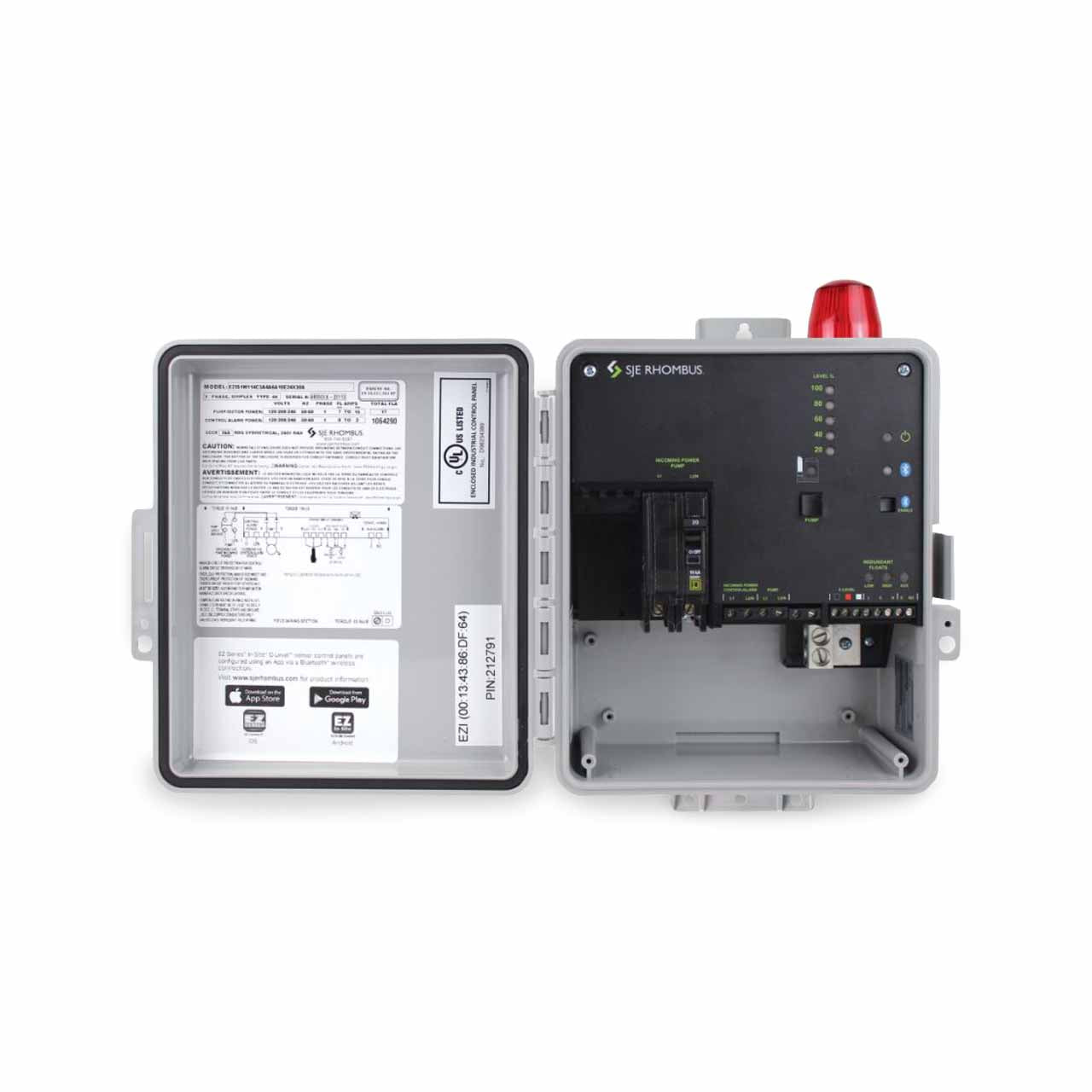

SJE-Rhombus EZIS Series Simplex Timed or Demand Dose Pump Control Panel

Price: $1,618.50
Quantity:
+ -
Usually ships within 4 days
SKU: CP-SJEEZIS1W104C24E30A
Pump Amperage, Number of Floats, Special Instructions *
Max: 250 character(s)
Alarm Package:

Enclosure Rating:

Starting Device:

Pump Full Load Amps:

Tool Tip: Horsepower to Amperage

Pump Disconnects:

Float Switch Application:

Option 24 & 29 C-Level Sensor Options:

Float Switch Selection (Option 17) :

Panel Options, Select all that are standard and that apply:

Update price


Shipping Weight:
16.0 LBS
Shipping Dimensions
Length: 12 In
Width: 12 In
Height: 6 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


EZ Series® In-Site® CL with Bluetooth® Simplex Demand Control Panel

The EZ Series® In-Site® CL simplex control panel is designed to control one 120, 208, 240 VAC single phase pump in water and sewage installations. The panel configuration can be easily converted in the field to either a timed dose or demand dose using a tablet or smartphone. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the exclusive EZ InSite® Connect App. Data reports make diagnosing system conditions easy.

The panel utilizes the C-Level™ sensor for continuous level monitoring and records up to 4000 system events, including pump run times, pump cycles, alarm conditions, HOA settings, power outages, service calls and more. The C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the EZ Series® In-Site® panel. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

The new compact redesign (10” x 8” x 4”) is ideal for residential applications. The innovative internal design of components and integral mounting tabs make installation quick and simple. Includes integral padlockable latch for added safety.

The new EZ InSite Connect App allows you view real time pump run time, cycle counts, tank levels and more right from your smart device. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the EZ InSite Connect App, and analyzed using our exclusive InSite Reporting Software.

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Applications

  • Single Phase, Simplex Demand Dose, Float Controlled System for Pump Control and System Monitoring
  • Septic Tank Pumping
  • Sewage Ejector Pumping
  • Drainfield Dosing
  • Water Reservoir Control

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Features

  • Entire Control System is UL Listed to Meet and/or Exceed Industry Safety Standards
  • Dual Safety Certification for the United States and Canada
  • Bluetooth® Wireless Connection for Easy Configuration and Data Downloading to a Smart Mobile Device
  • Complete with Step-by-Step Installation Instructions
  • UL/cUL Listed
  • Warranty
    • Five-Year Limited Warranty on Panel
    • Five-Year Limited Warranty on C-Level™ Sensor
  • C-Level™ Sensor US Patent No. 8,567,242; 8,336,385; 8,650,949.

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Specifications

  1. Enclosure Base Measures 10 X 8 X 4 inches (25.4 X 20.32 X 10.16 cm). NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use). Includes Integral Locking Latch as Standard.
  2. Red LED Beacon Provides Visual Check of Alarm Condition.
  3. Circuit Breaker Provides Pump Power Disconnect and Branch Circuit Protection.
  4. Safety Cover with Touch Safe Design.
  5. C-Level™ Sensor/Float Connection Terminal Block
  6. Incoming Control/Alarm Power & Pump Power Terminal Block
  7. Control Power Indicator Light Illuminates if Control Power is Present in Panel.
  8. Float Status Indicator Light Illuminates When Float is Active.
  9. Pump Run Indicator Illuminates when Pump is Called to Run.
  10. Pump Manual Run Switch.
  11. Tank Level Indicator.
  12. Bluetooth® Wireless Module
  13. Ground Lug(s)
  14. Auxiliary Alarm Indicator

NOT SHOWN: Exterior Alarm Test/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 Decibel Rating.)

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SJE Rhombus Limited Warranty Policy

Five-Year Limited Warranty Policy We Stand Behind Our Products!

Effective for products manufactured after January 1, 2014

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

ELECTRICAL WIRING AND SERVICING OF THIS PRODUCT MUST BE PERFORMED BY A LICENSED ELECTRICIAN.

This warranty does not apply to: (a) damage due to lightning or conditions beyond the control of SJE-Rhombus; (b) defects or malfunctions resulting from units not installed, operated, or maintained in accordance with instructions provided, applicable local codes, ordinances, or accepted trade practices; (c) failures resulting from abuse, misuse, accident, or negligence; or (d) units repaired and/or modified without prior authorization from SJE-Rhombus.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TO OBTAIN WARRANTY SERVICE: The consumer shall assume all responsibility and expense for removal, reinstallation, and freight. Any item to be repaired or replaced under this warranty must be returned to SJE-Rhombus, or such place as designated by SJE-Rhombus. Contact customer service at 1-888-DIAL-SJE (1-888-342-5753) for a Return Materials Authorization number (RMA) on any product being returned for a warranty claim.

ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SJE-RHOMBUS SHALL NOT, IN ANY MATTER, BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AS A RESULT OF A BREACH OF THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY.

*Build-A-Panel™ Plus Control Panels and Engineered Custom panels carry a two-year limited warranty (or as quoted). The pressure transducer included with VARIOspeed® products carries a one-year limited warranty.
