SJE-Rhombus Model IFS Drip Dose Simplex 120/208/240 VAC Single Phase Control Panel

Price: $1,979.10
Quantity:
+ -
Usually ships within 4 days
SKU: CP-SJEIFSDRIP1018134
Voltage, Pump Amperage, Number of Floats, Special Instructions *
Max: 250 character(s)
Voltage:


Update price


Shipping Weight:
12.0 LBS
Shipping Dimensions
Length: 10 In
Width: 14 In
Height: 14 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

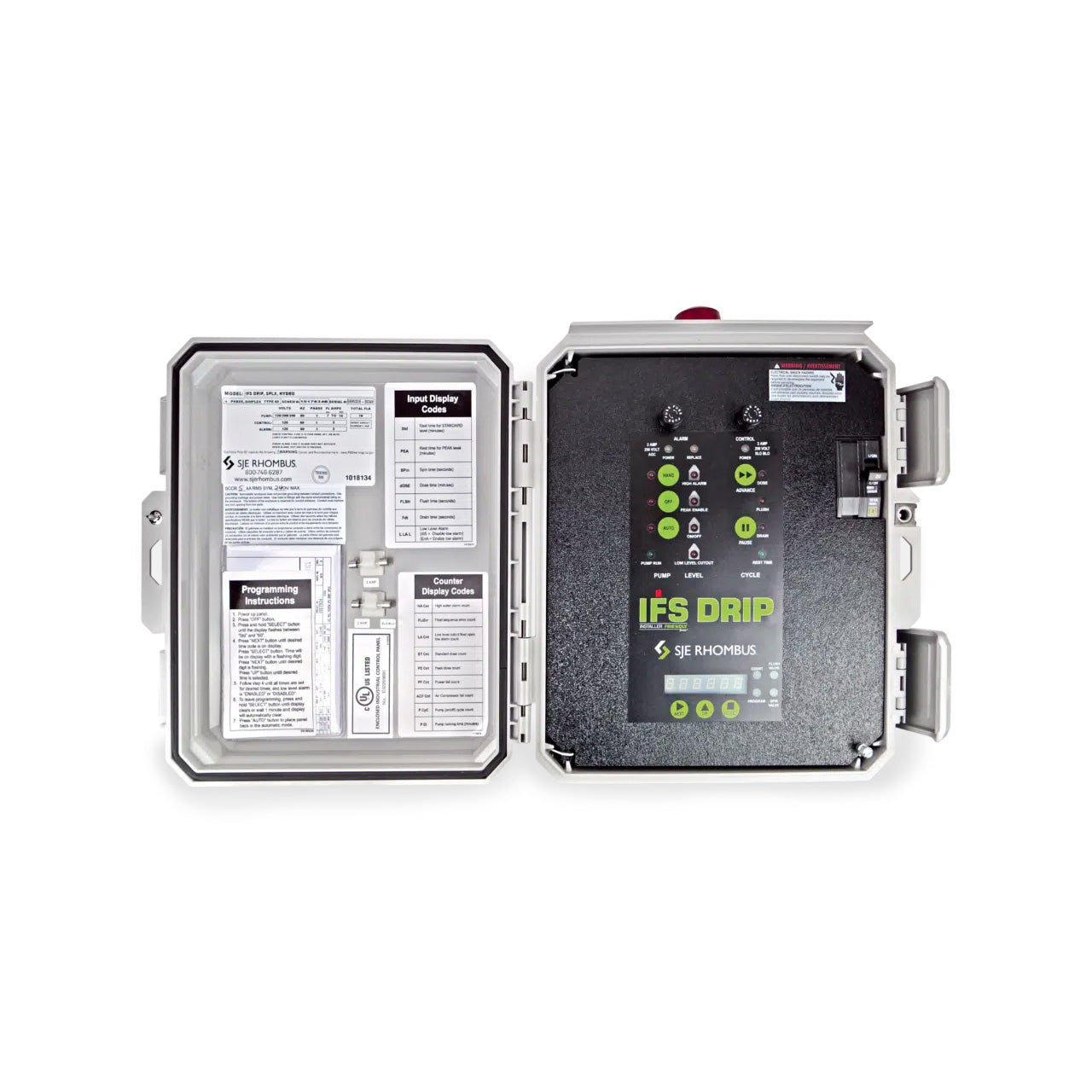

Model IFS Drip Single Phase, Simplex Drip Dosing Pump Control Panel.

Installer Friendly Series® control panels utilize circuit board technology for advanced pump control and system monitoring.

The Installer Friendly Series® (IFS) Drip irrigation control panel is designed to control one 120V or 230V single phase pump for subsurface irrigation systems. The IFS Drip panel features a simplex, easy-to-use touch pad on the inner door for programming and monitoring system operation:

  • Rest for Standard Time
  • Rest for Peak Enable Time
  • Spin Filter Flush Time
  • Dose Time
  • Field Flush Time
  • Field Drain Time
  • Low Alarm Activation

SJE-Rhombus IFS Drip Single Phase, Simplex Drip Dosing  Control Panel Features

    Touch Pad Features:
  • Alarm and Control Power Fuses/Indicators
  • Alarm Power Replacement Indicator
  • Hand/Off/Auto (HOA) Buttons/Indicators
  • Float Status Indicators
  • Cycle Status Indicators
  • Advance, Pause, Next, Up and Set Buttons
  • Rest Time Indicator
  • Count Indicator
  • Flush Valve Indicator
  • Spin Valve Indicator
  • 7 Segement LED Display Shows High Water Alarm Count, Float Status Seqence Error Count, Low Level Cutout Float Open Low Alarm Count, Standard Dose Count, Power-Fail Count, Pump On/Off Cycle Count, Pump Run Times (hh:mm) and Peak does Count
  • Next, Up, Select Buttons
  • LED Display Features:
  • High Water Alarm Count
  • Float Status Sequence Error Count
  • Low Level Cutout Float Open Low Alarm Count
  • Standard Dose Count
  • Power-Fail Count
  • Pump On/Off Cycle Count
  • Pump Run Times (hh:mm)
  • Peak Dose Count
  • Panel Features:
  • NEMA 4X Enclosure for Indoor/Outdoor Use
  • Red Alarm Beacon Provides 360° Visual Check of Alarm Condition
  • Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
  • Alarm Horn Provide Audio Warning of Alarm Condition
  • Circuit Breaker Provides Pump Disconnect and Branch Circuit Protection
  • Circuit Board Provides Power to Main Circuit Board and Contains Terminal Blocks for Float and Valve Connections
  • Float Connections
  • Valve Connections
  • Magnetic Motor Contactor Controls Pump by Switching Electrical Lines
  • Large Incoming Power/Pump Connection Terminal Block
  • Ground Lugs
  • Five-Year Limited Warranty
  • UL/cUL Listed

SJE-Rhombus IFS Drip Single Phase, Simplex Drip Dosing Control Panel Specifications

    TOUCH PAD FEATURES:
  1. Alarm Power Indicator/Fuse; Led Indicator Light Illuminates if Alarm Power is Present in Panel
  2. Alarm Power Replacement Indicator Illuminates if Alarm Fuse is Blown
  3. Control Power Indicator/Fuse LED Indicator Light Illuminates if Control Power is Present in Panel.
  4. NOTE: If Control Power is not Present Panel will go into Alarm Mode.

  5. HOA (Hand/Off/Automatic) Indicators/Buttons Control Pump Mode with LED Indication.
  6. Float Status Indicators Illuminate when Floats are Activated. Alarm will Activate and Indicator will Flash if a Float Operates out of Sequence.
  7. Pump Run Indicator Illuminates when Pump is Called to Run.
  8. Cycle Status Indicators Allows User to See which Cycle (dose, flush, or drain) is Activated.
  9. Advance and Pause Buttons Allow User to Cycle Through System Functions for Testing.
  10. Rest Time Indicator Illuminates in Between Cycles.
  11. Count Indicator Illuminates when Viewing Panel Data.
  12. Program Indicator Illuminates when Programming Panel.
  13. Flush Valve Indicator Illuminates when Flush Valve is Called to Energize.
  14. Spin Valve Indicator Illuminates when Spin Valve is Called to Energize.
  15. Seven-Segment LED Display Shows High Water Alarm Count, Float Status Sequence Error Count, Low Level Cutout Float Open Low Alarm Count, Standard Dose Count, Power-Fail Count, Pump On/Off Cycle Count, Pump Run Times (hh:mm), and Peak Does Count.
  16. Next, Up, Select Buttons are Used to Navigate Through the Display.
  17. NOTE: LED Display will Turn Off After One Minute of not Being Used.

    PANEL COMPONENTS:
  1. Enclosure Measures 12x10x6 inches NEMA 4X (ultraviolet stabilized thermoplastic, padlockable with integral mounting flanges, drip shield, (2) heavy duty cover latches and stainless steel 1/4 turn set screw; for outdoor or indoor use.)
  2. Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
  3. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Beacon to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
  4. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibal rating).
  5. Circuit Breaker Provides Pump Disconnect and Branch Circuit Protection.
  6. Circuit Board Provides Power to the Main Circuit Board and Contains Terminal Blocks for Float and Valve Connections.
  7. Float Connections
  8. Valve Connections
  9. Magnetic Motor Contactor Controls Pump by Switching Electrical Lines.
  10. Large Incoming Power/Pump Connection Terminal Block
  11. Ground Lugs
  12. NOTE: Options, Voltage, and Amp Range Selected May Change Enclosure Size and Component Layout.

    NOTE: Schematic/Wiring Diagram, Pump Specification Label, Input Display Code Label and Counter Display Code Label are on Inside of Cover for Viewing/Programming Digital Display.
