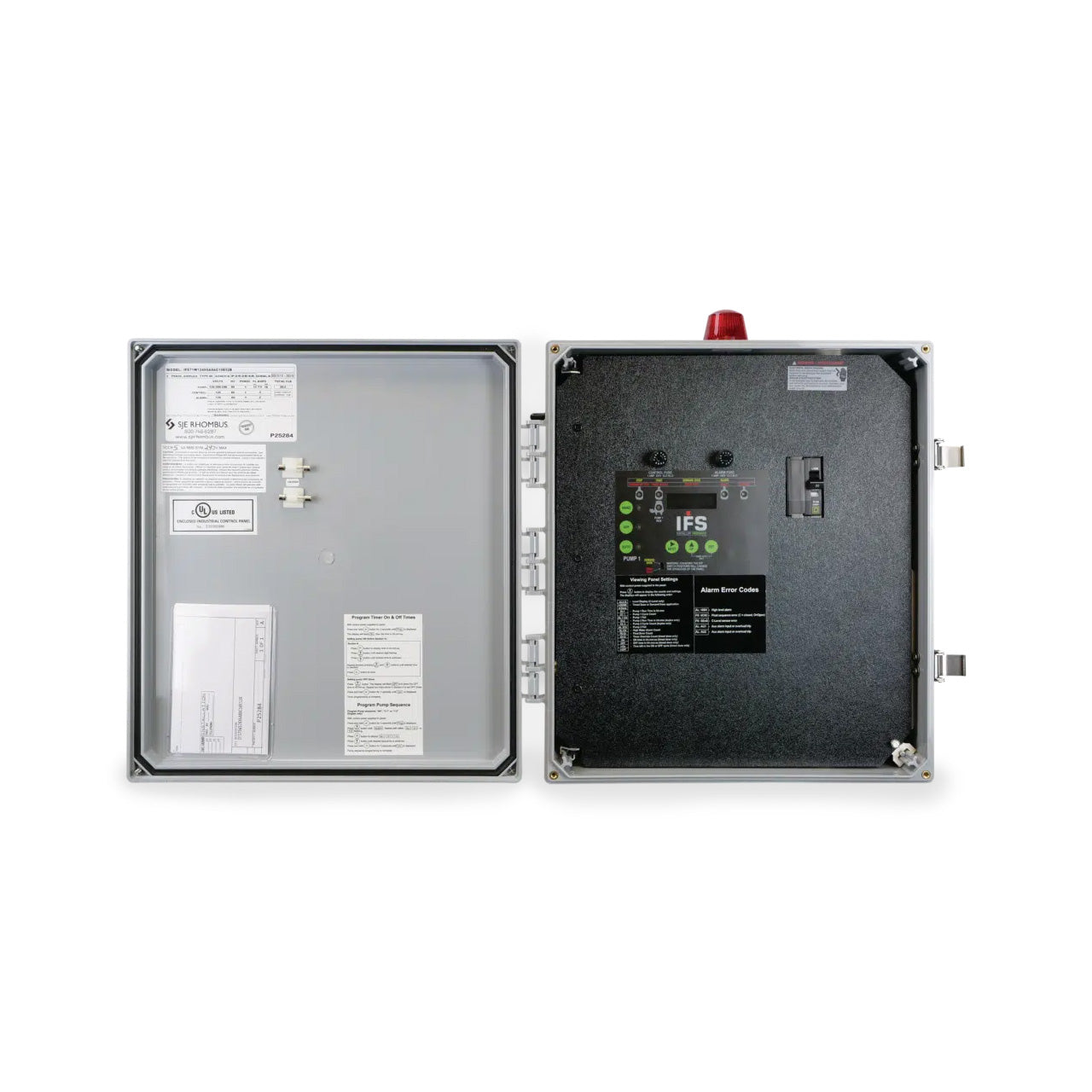

SJE-Rhombus Model IFS Single Phase 120/208/240V Capacitor Start/Run Simplex Control Panel

Price: $1,706.90
Quantity:
+ -
Usually ships within 4 days
SKU: CP-SJEIFS71W100H8AC17J
Voltage, Pump Amperage, Number of Floats, Special Instructions *
Max: 250 character(s)
Alarm Package:

Enclosure Rating:

Starting Device:

Pump Full Load Amps:

Tool Tip: Horsepower to Amperage

Pump Disconnects:

Float Switch Application:

Option 24 & 29 C-Level Sensor Options:

Float Switch Selection (Option 17) :

Float Switch Selection (Option 33):

Cord Length:

Panel Options, Select all that are standard and that apply:

Update price


Shipping Weight:
20.0 LBS
Shipping Dimensions
Length: 18 In
Width: 16 In
Height: 8 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


INSTALLER FRIENDLY SERIES® - IFS Simplex Capacitor

Single phase, simplex demand dose or timed dose, float or C-Level™ controlled system for pump control and system monitoring.

The IFS single phase simplex capacitor (start/run) control panel is designed to control one 120, 208, or 240 VAC single phase pump in water and sewage installations. The IFS single phase simplex capacitor (start/run) control panel features a simple, easy-to-use touch pad on the inner door for programming and monitoring pump and float operation.

The optional C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the IFS panel. Pump activation levels can be adjusted by using the panel touch pad. operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 sensor operating range is 3-99.5 inches (7.6-252.7 cm).

SJE-Rhombus Model IFS Single Phase Simplex Capacitor (Start/Run) Panel Features

    Touch Pad Features:
  • Level Status Indicators Illuminate when Floats or Set Points are Activated. Alarm will Activate if a Float Operates Out of Sequence.
  • HOA (Hand/Off/Automatic) Buttons Control Pump Mode with Indication. Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
  • Pump Run Indicators will Illuminate when Pumps are Called to Run.
  • LED Display Shows System Information Including: Level in Inches or Centimeters (C-Level™ only), Mode, Pumps Elapsed Time (hh;mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only) and ON/OFF Times (timed dose only)
  • NEXT Push Button Toggles Display.
  • UP and SET Push Buttons Set Pump ON/OFF Times (timed dose only) and Activation Levels (C-Level™ only).
  • Panel Components:
  • Enclosure Base Measures 16x14x6 inches. NEMA 4X Fiberglass. NOTE: Options, Voltage and Amp Range Selected may Change Enclosure Size and Component Layout.
  • Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
  • Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
  • Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
  • Overload Relays (optional) Provide Pump Overload Protection.
  • IEC Motor Contactors Control Pumps by Switching Electrical Lines.
  • Circuit Breakers (optional) Provide Pump Disconnect and Branch Circuit Protection.
  • Float and Control/Alarm Incoming Power Terminal Block.
  • Control Power Indicator/Fuse Indicator Light Illuminates if Control Power is Present in Panel. Alarm Activates if Control Fuse is Blown.
  • Alarm Power Indicator/Fuse Indicator Light Illuminates if Alarm Power is Present in Panel.
  • Large Pump/Incoming Power Terminal Block.
  • Terminal Block Float and Control/Alarm Incoming Power Wiring Label.
  • Ground Lugs
  • NOTE:Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover

    Panel Features:
  • Entire Control System is UL Listed to Meet and/or Exceed Industry Safety Standards
  • Dual Safety Certification for the United States and Canada
  • Standard Package Includes Three 20′ Control Switches
  • Available with EZconnex® Float System
  • Complete with Step-by-Step Installation Instructions
  • UL/cUL Listed
  • Five-Year Limited Warranty on Panel. This Express Warranty does not Apply to the Motor Start Kit Components. SJE Rhombus will warranty motor start kit components supplied by SJE Rhombus for one year. SJE Rhombus makes no warranties of any type with respect to motor start kits supplied by a customer.
  • One-Year Limited Warranty on C-Level™ Sensor

SJE-Rhombus Model IFS Single Phase Simplex Capacitor (Start/Run) Panel Components

    Touch Pad Features:
  1. Level Status Indicators Illuminate when Floats or Set Points are Activated. Alarm will Activate if a Float Operates out of Sequence.
  2. HOA (Hand-Off-Automatic) Buttons Control Pump Mode with Indication. Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
  3. Pump Run Indicator Illuminates when Pump is Called to Run.
  4. LED Display Shows System Information Including: Level in Inches or Centimeters (C-Level™ only), Mode, Pump Elapsed Time (hh;mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only), and ON/OFF Times (timed dose only).
  5. NEXT Push Button Toggles Display.
  6. UP and SET Push Buttons Set Pump ON/OFF Times (timed dose only) or Activation Levels (C-Level™ only).
    Panel Components:
  1. Enclosure Base Measures 16 x 14 x 6 inches. NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use). Note: Options, Voltage, and Amp Range Selected may Change Enclosure Size and Component Layout.
  2. Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
  3. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
  4. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
  5. Overload Relay (optional) Provides Pump Overload Protection.
  6. IEC Motor Contactor Controls Pump by Switching Electrical Lines.
  7. Circuit Breaker (optional) Provides Pump Disconnect and Branch Circuit Protection
  8. Float and Control/Alarm Incoming Terminal Block
  9. Control Power Indicator/Fuse Light Illuminates if Control Power is Present in Panel. Alarm will Activate if Control Fuse is Blown.
  10. Alarm Power Indicator/Fuse Light Illuminates if Alarm Power is Present in Panel.
  11. Large Pump Connection Power Terminal Block
  12. Terminal Block Float and Control/Alarm Incoming Power Wiring Label
  13. Ground Lugs
  14. NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SJE Rhombus Limited Warranty Policy

Five-Year Limited Warranty Policy We Stand Behind Our Products!

Effective for products manufactured after January 1, 2014

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

ELECTRICAL WIRING AND SERVICING OF THIS PRODUCT MUST BE PERFORMED BY A LICENSED ELECTRICIAN.

This warranty does not apply to: (a) damage due to lightning or conditions beyond the control of SJE-Rhombus; (b) defects or malfunctions resulting from units not installed, operated, or maintained in accordance with instructions provided, applicable local codes, ordinances, or accepted trade practices; (c) failures resulting from abuse, misuse, accident, or negligence; or (d) units repaired and/or modified without prior authorization from SJE-Rhombus.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TO OBTAIN WARRANTY SERVICE: The consumer shall assume all responsibility and expense for removal, reinstallation, and freight. Any item to be repaired or replaced under this warranty must be returned to SJE-Rhombus, or such place as designated by SJE-Rhombus. Contact customer service at 1-888-DIAL-SJE (1-888-342-5753) for a Return Materials Authorization number (RMA) on any product being returned for a warranty claim.

ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SJE-RHOMBUS SHALL NOT, IN ANY MATTER, BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AS A RESULT OF A BREACH OF THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY.

*Build-A-Panel™ Plus Control Panels and Engineered Custom panels carry a two-year limited warranty (or as quoted). The pressure transducer included with VARIOspeed® products carries a one-year limited warranty.
