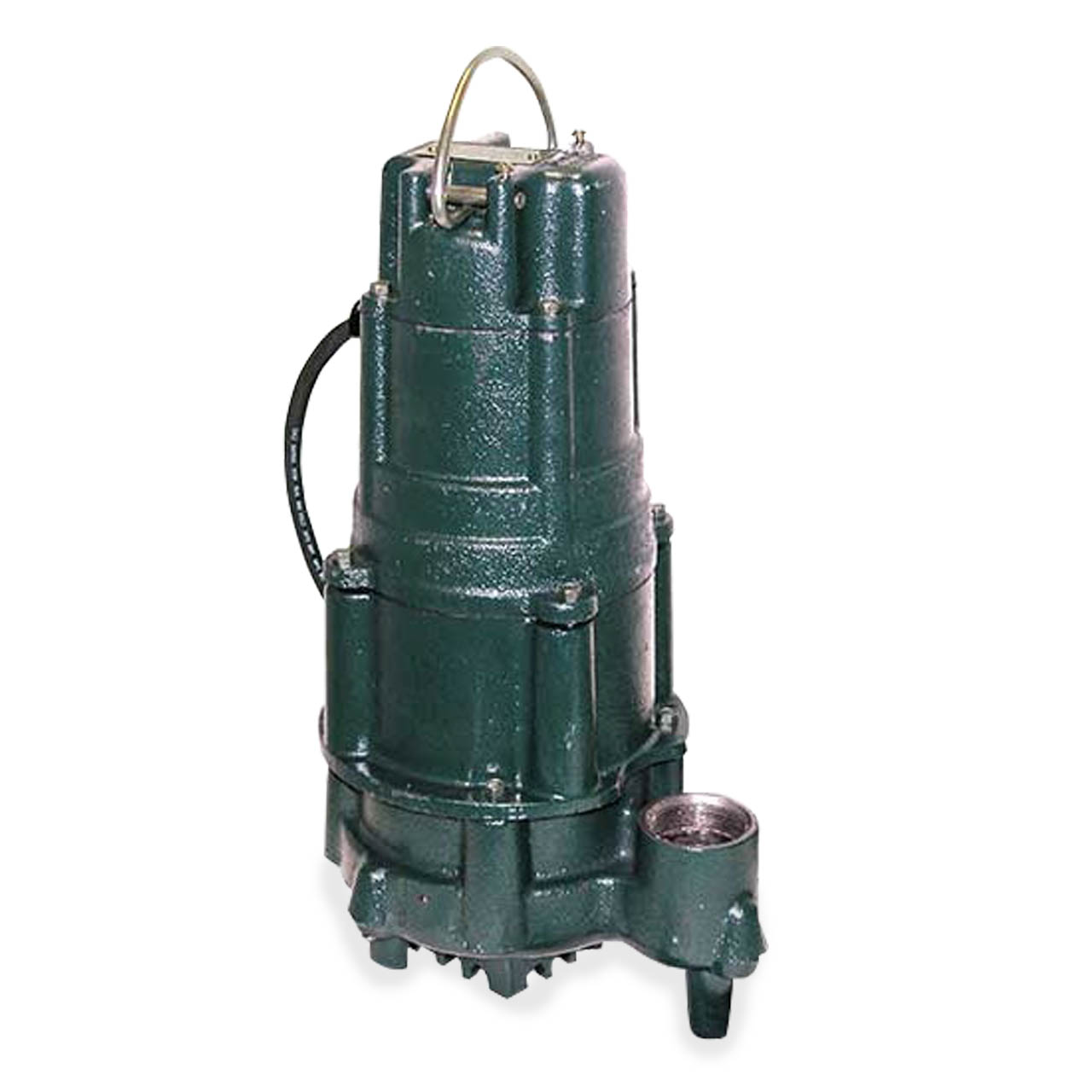

Zoeller 4145-0002 Model N4145 Sump & Effluent Double Seal Pump 0.75 HP 115V 1PH 20' Cord Nonautomatic

There are no reviews yet. | Write a review
Price: $596.25
Quantity:
+ -
Usually ships within 3 weeks
SKU: ZLR4145-0002


Shipping Weight:
65.0 LBS
Shipping Dimensions
Length: 12 In
Width: 10 In
Height: 12 In


Zoeller Model N4145 Sump & Effluent Pump Description

"Flow-Mate" submersible pump for sump and effluent applications

Zoeller Model N4145 Sump & Effluent Pump Features and Benefits

  • Durable Cast Iron Construction
  • Features an Engineered Thermoplastic, Single Vane Impeller Design
  • Oil Filled and Hermetically Sealed, Automatic Reset Thermal Overload Protection
  • Stainless Steel Bolts and Lifting Handle
  • 1-1/2" NPT Vertical Discharge
  • Operates at 130°F (54°C) in Effluent or Dewatering Applications
  • Corrosion-Resistant, Powder Coated Epoxy Finish

Zoeller Model N4145 Sump & Effluent Pump Specifications

  • HORSEPOWER: 0.75 HP
  • VOLTAGE: 115 V
  • PHASE: 1 Ph
  • HERTZ: 60 Hz
  • RPM: 3450 RPM
  • AMPS: 13.0
  • SOLIDS HANDLING: 3/4" Spherical Solid
  • CORD LENGTH: 20'
  • MAX HEAD: 74'
  • MAX FLOW RATE: 61 GPM
  • IMPELLER TYPE: Non-Clogging Vortex

Zoeller Model N4145 Performance Curve


Zoeller Limited Warranty

Manufacturer warrants,to the purchaser and subsequent owner during the warranty period, every new product to be free from defects in material and workmanship under normal use and service, when properly used and maintained, for a period of one year from date of purchase. Proof of purchase is required. Parts that fail within the warranty period that inspections determine to be defective in material or workmanship will be repaired, replaced or remanufactured at Manufacturer's option, provided however, that by so doing we will not be obligated to replace an entire assembly, the entire mechanism or the complete unit. No allowance will be made for shipping charges, damages, labor or other charges that may occur due to product failure, repair or replacement.

This warranty does not apply to and there shall be no warranty for any material or product that has been disassembled without prior approval of Manufacturer, subjected to misuse, misapplication, neglect, alteration, accident or uncontrollable act of nature; that has not been installed, operated or maintained in accordance with Manufacturer's installation instructions; that has been exposed to outside substances including but not limited to the following: sand, gravel, cement,mud, tar, hydrocarbons, hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels or feminine sanitary products, etc. in all pumping applications. The warranty set out in the paragraph above is in lieu of all other warranties expressed or implied; and we do not authorize any representative or other person to assume for us any other liability in connection with our products.

Contact Manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211, Attention: Customer Support Department to obtain any needed repair or replacement of part(s) or additional information pertaining to our warranty.

MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY.

Some states do not allow limitations on the duration of an implied warranty, so the above limitationmay not apply to you. Some states do not allowthe exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
