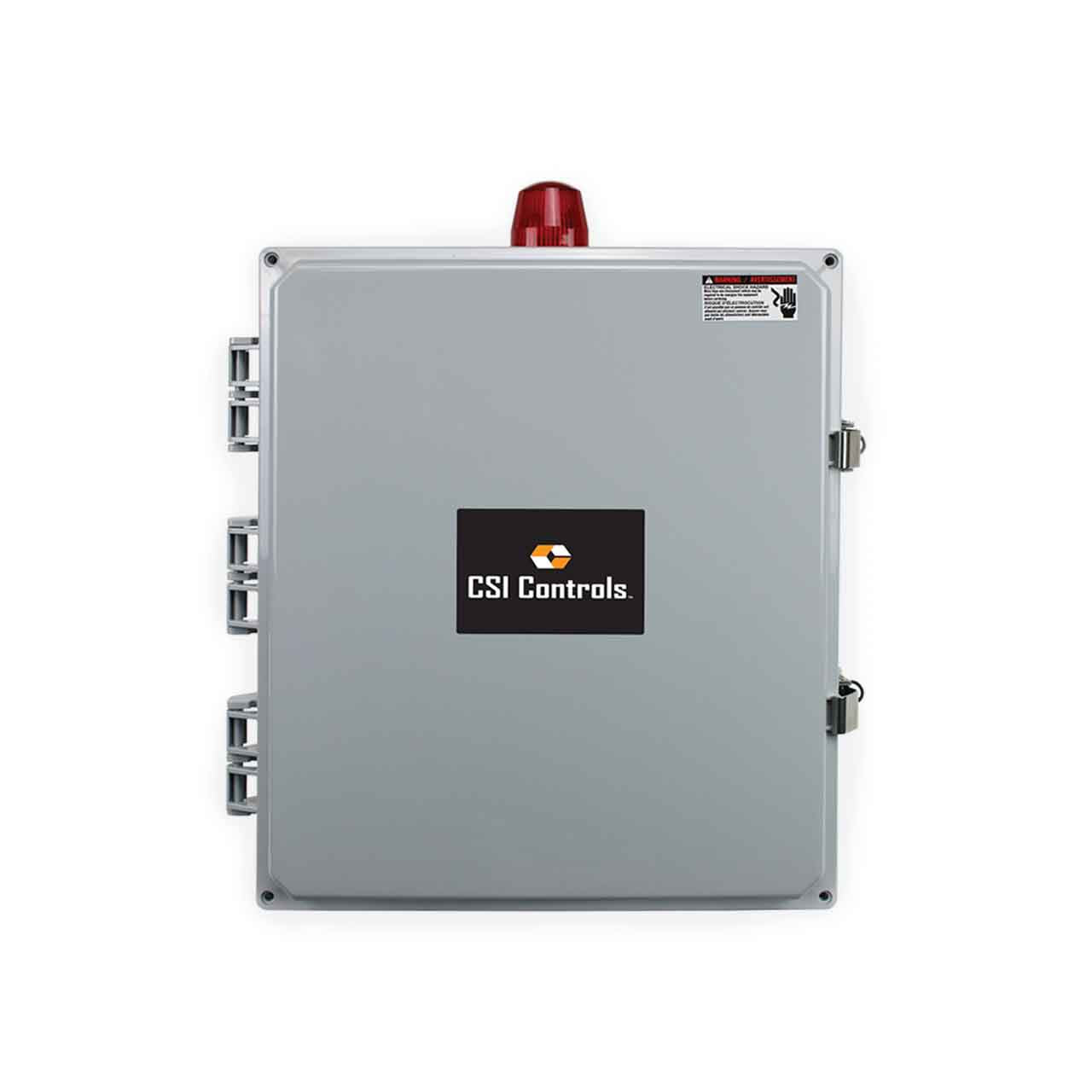

CSI Controls FD115 Fusion Single Phase Duplex Control Panel
CSI Controls FD115 Fusion Single Phase Duplex Control Panel
SKU : CP-CSIFD115
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Pickup available at Coeur d'Alene
Usually ready in 24 hours
Description
Description
CSI Controls Fusion Single Phase Duplex Pump Control Panel Description
Single Phase, Duplex Demand Dose Float Controlled System for Pump Control and System Monitoring
The Fusion™ Single Phase Duplex control panels utilize a traditional relay logic component-style design. Applications include sump and sewage basins, septic tanks, aeration systems, cisterns, atmospheric storage tanks, chemical solution tanks and more.
CSI Controls Fusion Single Phase Duplex Pump Control Panel Features
- NEMA 4X Engineered Thermoplastic Enclosure with Lockable Latches
- Flashing Red 360° Alarm Beacon with an Electronic Horn and Test/Silence Switch.
- Pump Hand-Off-Auto Switch to Manually Activate Pump, Set in Automatic Float Level Control, or Disable the Pump Operation
- Pump Run Lights to Provide Visual Notification when the Pumps are Called to Run
- Includes Easy Access Fuses
- Timed Dose Control Option Available
- UL/cUL Listed
Specifications
Specifications
CSI Controls Fusion Single Phase Duplex Pump Control Panel Specifications
- NEMA 4X Enclosure Rated for Indoor or Outdoor Use
- Lockable Latches for Added Safety
- 360° Red Alarm Beacon for Visual Alert
- IEC Motor Contactors Control the Pump Motor Load by Switching the Electrical Lines
- Circuit Breakers Provide Pump and Control/Alarm Disconnect and Branch Circuit Protection
- Terminal Strip Easy Field Wiring of Incoming Power, Floats, and Pumps
- Ground Lugs
- Control Circuit and Alarm Circuit Fuses Easy Access Touch Safe Fuse Replacement
- Alarm Arm-Off-Test Switch to Disable or Test the Alarm
- Green Pump Run Lights Provides Indication when Pump is Called to Run
- Pump Hand-Off-Auto Switches Provides Manual Pump Control
- Alarm Test/Silence Button Alarm Test or to Silence the Audible Alarm
CSI Controls Fusion Single Phase Duplex Control Panel Models & Options
| FUSION™ SINGLE PHASE DUPLEX CONTROL PANEL MODELS & OPTIONS | |||||
| MODEL | MAX FLA | ENCLOSURE TYPE | INPUT POWER VOLTS/PHASE | CIRCUIT BREAKERS | |
| FD115 | 12 | NEMA 4X | 115/1 | NONE | |
| FD115CB | 12 | NEMA 4X | 115/1 | MOTOR & CONTROL | |
| FD115ACB | 12 | NEMA 4X | 115/1 | MOTOR, CONTROL & ALARM | |
| FD230 | 12 | NEMA 4X | 230/1 | NONE | |
| FD230CB | 12 | NEMA 4X | 230/1 | MOTOR & CONTROL | |
| FD230ACB | 12 | NEMA 4X | 230/1 | MOTOR, CONTROL & ALARM | |
| OPTIONS | |||||
| OPTION | OPTION DESCRIPTION | ||||
| AMB | AMBER BEACON (Red Beacon is Standard) | ||||
| AR | MANUAL ALARM RESET | ||||
| EC | ELAPSED TIME METER AND CYCLE COUNTER | ||||
| FC20 | INCLUDES (4) 20 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC20CW | INCLUDES (4) 20 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR20 | INCLUDES (4) 20 FOOT MECURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR20CW | INCLUDES (4) 20 FOOT MECURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| FC30 | INCLUDES (4) 30 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC30CW | INCLUDES (4) 30 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR30 | INCLUDES (4) 30 FOOT MECURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR30CW | INCLUDES (4) 30 FOOT MECURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| FC50 | INCLUDES (4) 50 FOOT MECHANICAL CONTROL SWITCHES / PIPE CLAMP | ||||
| FC50CW | INCLUDES (4) 50 FOOT MECHANICAL CONTROL SWITCHES / CABLE WEIGHT | ||||
| FR50 | INCLUDES (4) 50 FOOT MECURY CONTROL SWITCHES / PIPE CLAMP | ||||
| FR50CW | INCLUDES (4) 50 FOOT MECURY CONTROL SWITCHES / CABLE WEIGHT | ||||
| HD1 | HEAVY DUTY 1: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 12-18 FLA | ||||
| HD2 | HEAVY DUTY 2: INCREASE BREAKERS & WIRE GAUGE TO ALLOW 18-24 FLA | ||||
| HS | HEAT SENSOR TERMINALS | ||||
| HTR | ANTI-CONDENSATION HEATER | ||||
| LA | LIGHTNING ARRESTOR | ||||
| LL | LOW LEVEL ALARM (Control Switch not Included) | ||||
| OL | PUMP OVERLOAD-SPECIFY AMPERAGE AFTER OL (Example: OL02 = 2 Amp Pump) | ||||
| SF | SEAL FAILURE INDICATOR LIGHT | ||||
| X | AUXILIARY ALARM | ||||
| EXAMPLE: FD115-FC20-HD2 | |||||
