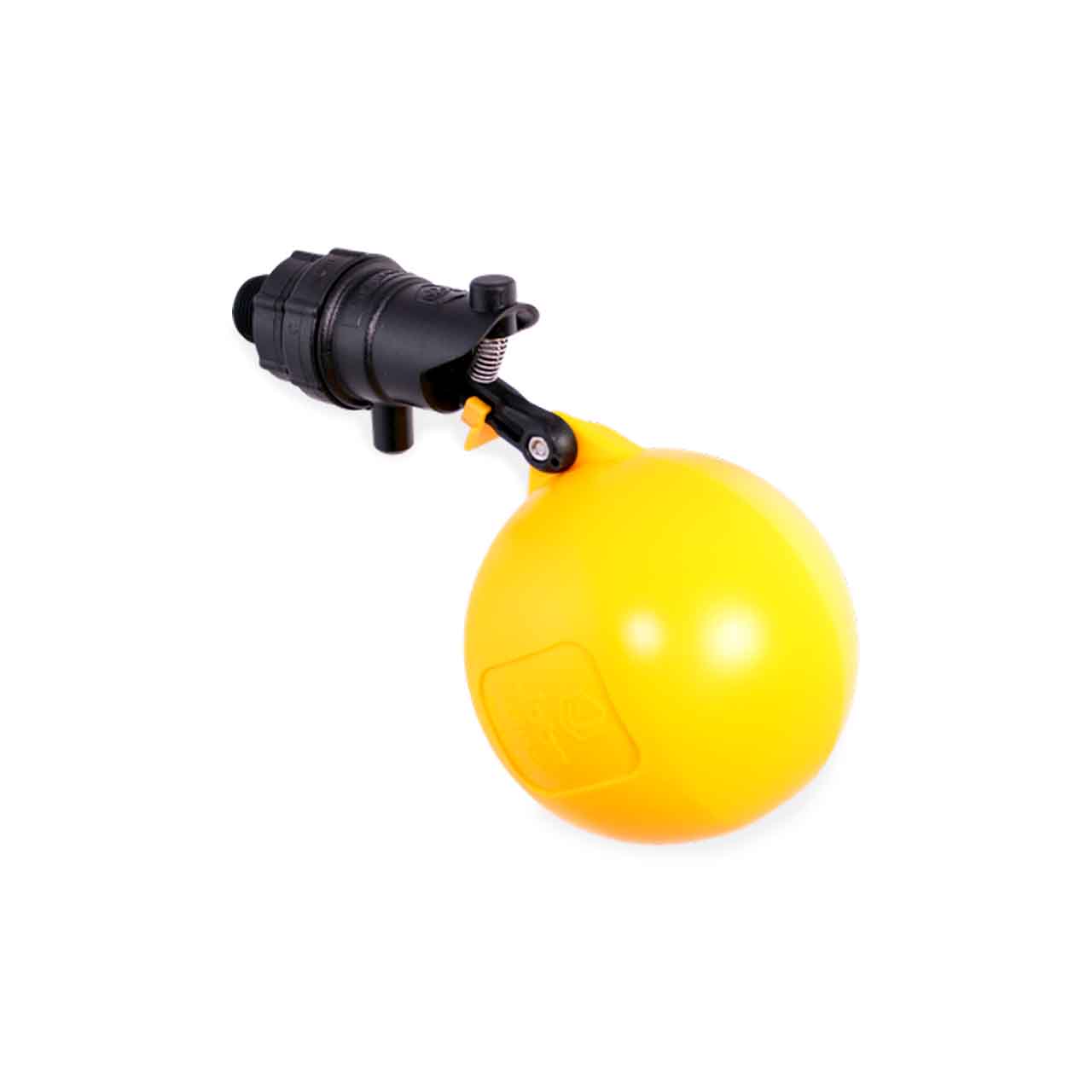

Rojo Float Valves are float operated valves for automatic filling of water storage vessels. The Rojo can be mounted above or below water level. It is a simple mechanically operated valve. The Rojo is good choice where its low flow is sufficient and its compact non corrosive construction is beneficial.

Jobe Rojo Float Valve Typical Application

Maintaining Water Levels in:

• Animal Drinking Troughs
• Water Storage Tanks
• Water Cisterns
• Process Applications

Jobe Rojo Float Valve Features

• Side, Bottom, Top Mounting
• Valve Body Screws Apart by Hand for Easy Servicing
• Flow Stops when Unscrewed for Servicing
• Supplied with Backnut and Seal Washer
• Built-In Check Valve
• Fully Adjustable Float Angle
• Pressure Range 0-150 PSI (0-10 BAR)
• Low Pressure Model also Available 0-75 PSI (0-5 BAR) Gives 60% More Flow
• Non corrosive Material Construction
• Has Switch to Lock Valve in Off Position

Jobe Rojo Float Valve Specifications

• Inlet Size: 3/4" NPT
• Float: 95mm Float (suitable for top entry only)
• High Flow
• Low Pressure
• Maximum Operating Temperature: 140°F (60°C)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Jobe Rojo Float Valve Product Resources

Jobe Rojo Float Valve Product Information
