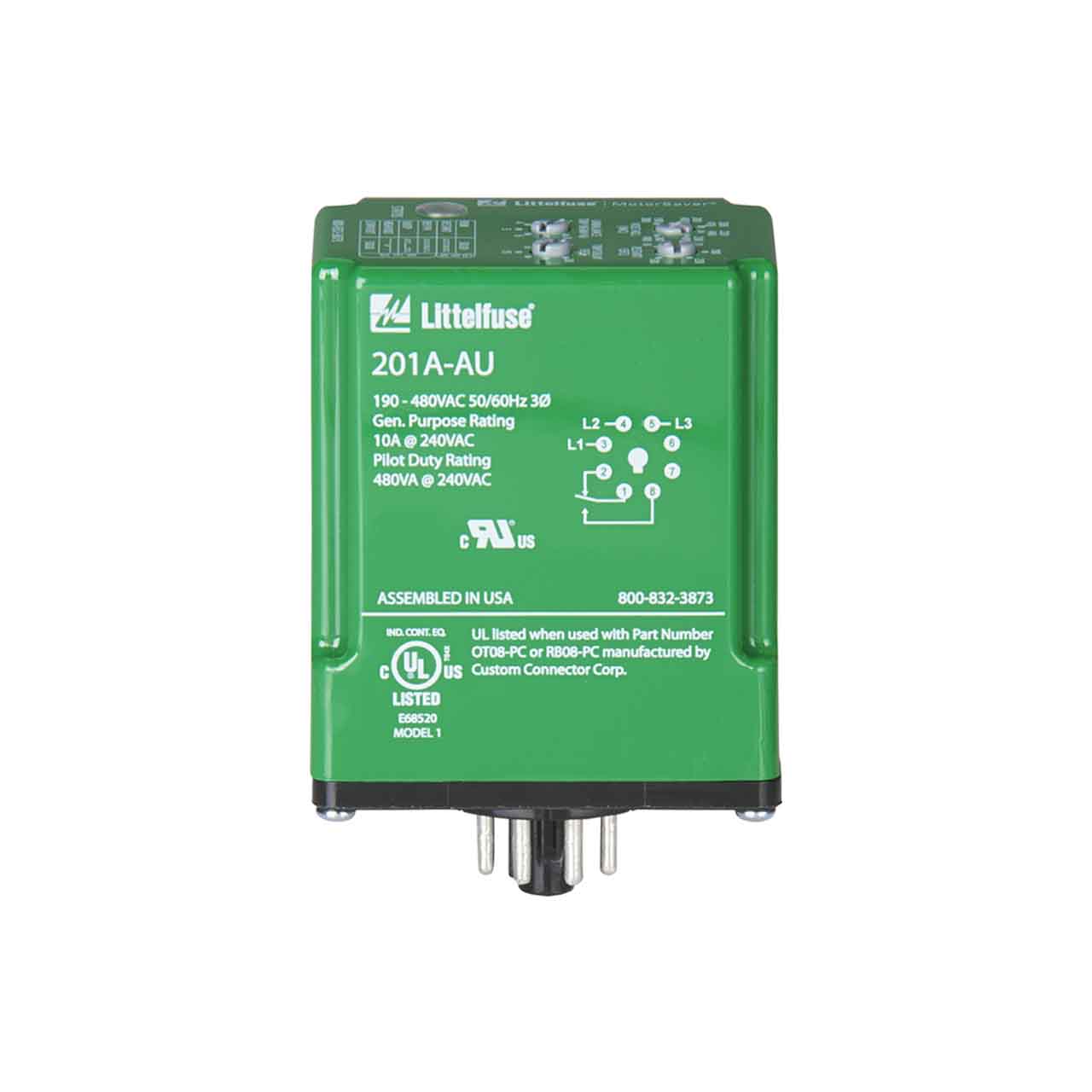

Littlefuse 201-575-AU Three-Phase Voltage Monitor

Littlefuse 201-575-AU Three-Phase Voltage Monitor

Usually ships within 1 week

SKU : MSR201-575-AU

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$196.05 USD
Shipping calculated at checkout.

Description

Littlefuse 201-575-AU Voltage Monitor Product Description

The 201A-AU is a 3-phase, auto-ranging, dual-range voltage monitor that protects 190-480VAC, 50/60Hz motors regardless of size. Has user adjustable 1-30 second trip delay, manual or 1-500 second restart delay, and 2-8% voltage unbalance trip point. The product also provides a user selectable nominal voltage setpoint and the voltage monitor automatically selects between the 200V and 400V range. The Model 201A-AU includes advanced single LED diagnostics, where five different light patterns distinguish between faults and normal conditions.

This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the 201A-AU's output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels.

Littlefuse 201-575-AU Voltage Monitor Typical Applications

  • Fans
  • Compressors
  • Air Conditioners
  • Heat Pumps
  • Well Pumps
  • Sump Pumps
  • Small Conveyor Motors

Littlefuse 201-575-AU Voltage Monitor Features

  • Protects 3-Phase Motors from:
    • Loss of any Phase
    • Low Voltage
    • High Voltage
    • Voltage Unbalance
    • Phase Reversal
    • Rapid Cycling
  • Four Adjustment Pots Provide Versatility for Numerous Applications.
  • Universal Range From 190-480VAC, 50/60Hz Provides Versatility to Handle Global Applications.
  • Bi-Color LED Indicates Trip Status and Provides Simple Troubleshooting.
  • Microcontroller-Based Circuitry Provides Better Accuracy and Higher Reliability Than Analog Designs.
  • Transient Protection Meets
  • IEEE and IEC Standards and Permits Operation Under Tough Conditions.
  • Single-Phase Conditions are Detected Regardless of Regenerated Voltages.

Specifications

SymCom 201-575-AU Voltage Monitor Specifications

3-Phase Line Voltage . . . . . . . . . . . . 475-600 VAC

Frequency . . . . . . . . . . . . . . . . . . . . . 50 or 60 Hz

Low Voltage (% of set point)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 90% ±1%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . . 93% ±1%

High Voltage (% of set point)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 110% ±1%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . .107% ±1%

Voltage Unbalance

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . .2-8% adjustable
  • Reset
    • . . . . . . . . . . .Trip Setting Minus 1% (5-8%)
    • . . . . . . . . . . .Trip Setting Minus 0.5% (2-4%)

Trip Delay Time

  • High, Low and Unbalanced Voltage . . . . . . . . . . . . . . . . 1-30 seconds adjustable
  • Singe Phasing Faults . . . . . . .1 second fixed

Restart Delay Time

  • After a Fault . . . . . . . . . . . . . . . . . Manual, 1-500 seconds adj
  • After a Complete Power Loss. . . . . . . Manual, 1-500 seconds adj.

Output Contact Rating (1-Form C)

  • Pilot Duty. . . . . . . . . . . . . . . . . . . . . . . . 480 VA @ 240 VAC, B300
  • General Purpose . . . . . . . . . . . . . . . . . . . . . . . . 10A @240 VAC

Ambient Temperature Range

  • Operating . . . . . . . . . . . . . . . . . . . . . . . . -40° to 70°C (-40° to 158°F)
  • Storage . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 80°C (-40° to 176°F)

Trip & Reset Accuracy . . . . . . . . . . . . . ±1%

Maximum Input Power . . . . . . . . . . . . . 5 Watts

Relative Humidity . . . . . . . . . . . . . 10-95%, non-condensing per IEC 68-2-3

Terminal Torque . . . . . . . . . . . . . 12 in.-lbs. (for OT08-PC socket)

Wire Gauge . . . . . . . . . . . . . 12-22 AWG solid or stranded

Electrostatic Discharge(ESD) . . . . . . IEC 61000-4-2, Level 3, 6kV Contact, 8kV Air

Radio Frequency

  • Immunity, Radiated . . . . . . . . . . . .150MHz, 10V/m
  • Fast Transient Burst. . . . . . IEC 61000-4-4, Level 3, 3.5kV Input Power and Controls

Surge

  • IEC . . . . . . . . . . . .IEC 61000-4-5, Level 3, 4kV line-to-line; Level 4, 4kV line-to-ground
  • ANSI/IEEE . . . . . .C62.41 Surge and Ring Wave Compliance to a level of 6kV line-to-line
  • Hi-Potential Test . . . . . .Meets UL508 (2 x rated V +1000V for 1 min.)

Safety Marks

  • UL (OT08PC Octal Socket Required) . .UL508 (File #E68520)
  • CE . . . . . . . . . . . IEC 60947-6-2

Enclosure . . . . . . . . . . . . . . . . . . . . . . . . Polycarbonate

Weight . . . . . . . . . . . . . . . . . . . . . . . . 11.2 oz.

Mounting Method . . . . . . . . . . . DIN Rail or Surface Mount (plug in to OT08PC socket)

Socket Available . . . . . . . . . . . Model OT08PC (UL Rated 600V)

The 600V socket can be surface mounted or installed on DIN Rail.

Must use Model OT08PC socket for UL Rating!

*Note: Manufacturer’s recommended screw terminal torque for the OT Series Octal Sockets is 12 in.-lbs.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse 201-575-AU Voltage Monitor Resources


Littelfuse 201-575-AU Product Specifications

SymCom 201-575-AU Installation Bulletin

SymCom 201-575-AU Engineering Specifications
