Littelfuse 460-400Hz Three-Phase Voltage Monitor

Littelfuse 460-400Hz Three-Phase Voltage Monitor

Usually ships within 1 week

SKU : MSR460400Hz

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$158.58 USD
Shipping calculated at checkout.

Description

Littelfuse 460-400Hz Voltage Monitor Product Description

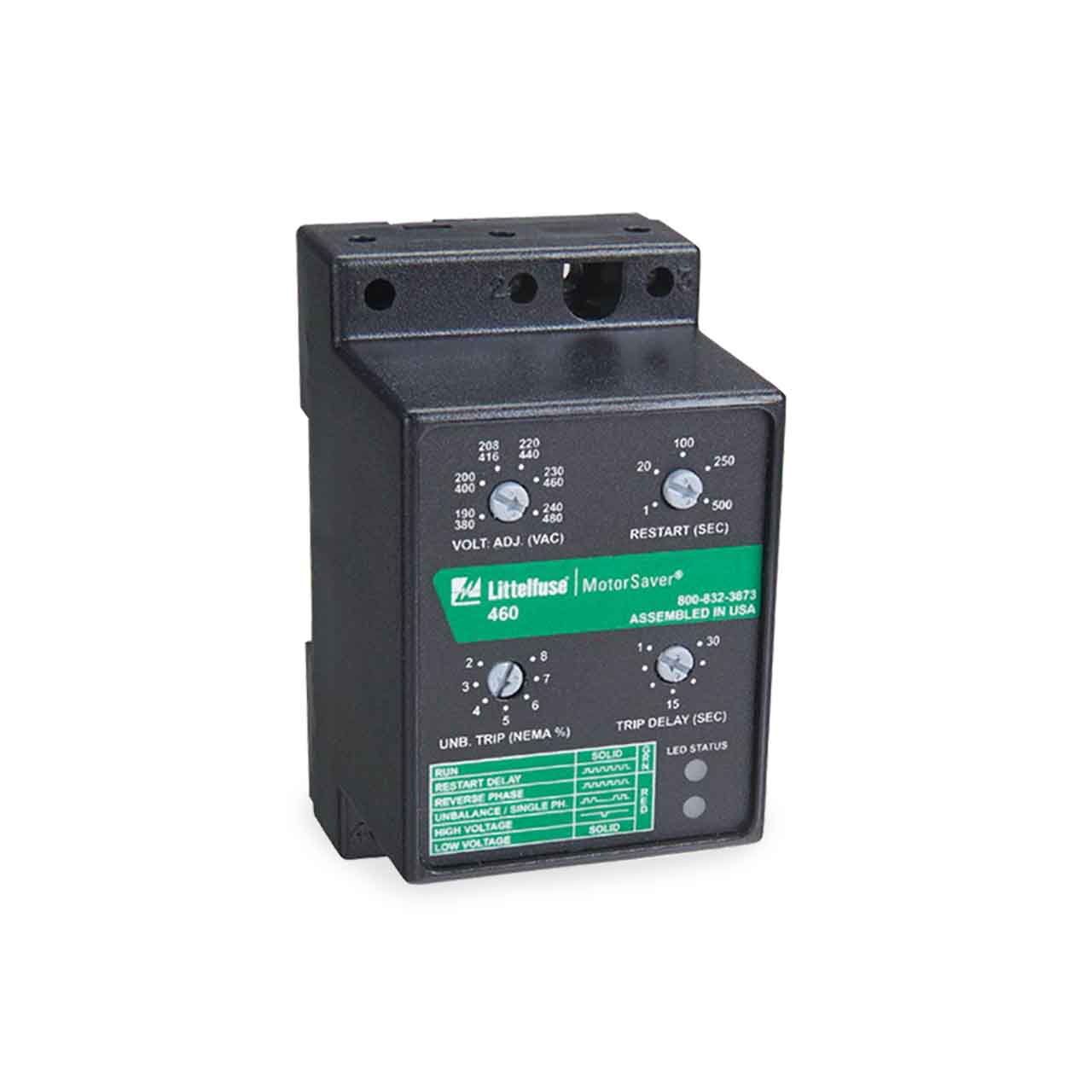

The Model 460-400Hz is designed to protect 3-phase, 400Hz motors from damaging power conditions. The 460s wide operating range combined with UL and CE compliance enables quick access to domestic and global markets.

A unique microcontroller-based voltage and phase-sensing circuit constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level for a specified amount of time (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

The Model 460-400Hz has an operating range from 190- 480V, 400Hz.

Littelfuse 460-400Hz Voltage Monitor Typical Applications

  • Fans
  • Compressors
  • HVAC
  • Heat Pumps
  • Well Pumps
  • Sump Pumps
  • Small Conveyor Motors
  • Oil Rigs

Littelfuse 460-400HZ Voltage Monitor Features

  • Protects Motor From:
    • Loss of any Phase
    • Low Voltage
    • High Voltage
    • Voltage Unbalance
    • Phase Reversal
    • Rapid Cycling
  • Standard Surface Mount -OR-
  • Opt. DIN Rail Mount
  • Standard 1-500 sec. Variable Restart Delay
  • Standard 2-8% adj. Voltage Unbalance Trip Point
  • Standard 1-30 sec. Variable Trip Delay
  • One 10 Amp General Purpose Form C Relay
  • UL and cUL Listed
  • 5-Year Warranty
  • Made in USA
  • Universal Voltage Range from 109-480VAC 50/60Hz Provide the Versatility Needed to Handle Global Applications.
  • Four Adjustment Pots Provide Flexibility for a Variety of Applications.
  • Diagnostic LEDs Indicate Trip Status and Make Troubleshooting a Snap.
  • Microcontroller-Based Circuitry Provides Better Accuracy and Higher Reliability than Analog Designs.
  • Transient Protection Meets IEEE Standards and Allows Operation Under Tough Conditions.

Specifications

Littelfuse 460-400Hz Voltage Monitor Specifications

Single-Phase Line Voltage . . . . . . . . . . . . 190-240 VAC

Frequency . . . . . . . . . . . . . . . . . . . . . 50 or 60 Hz

Low Voltage (% of setpoint)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 90%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . . 93%

High Voltage (% of setpoint)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 110%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . .107%

Voltage Unbalance (NEMA)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . 2-8% adjustable
  • Reset . . . . . . . . . . . . . . . . . . . . . . . Trip setting minus 1% (5-8%)
  • . . . . . . . . . . . . . . . . . . . . . . . Trip setting minus 0.5% (2-4%)
  • 460L . . . . . . . . . . . . . . . . . . . . . . . 6% UB fixed (4.5% reset)

Trip Delay Time

  • Low, High and Unbalanced Voltage. . . . . . . . . . .1-30 seconds adjustable
  • 460L . . . . . . . . . . . . . . . . . . . . . . . 4 seconds fixed
  • Singe-Phase Faults (>25% UB) . . . . . . . . .1 second fixed

Restart Delay Time

  • After a Fault . . . . . . . . . . . . . . . . . 1-500 seconds adjustable
  • After a Complete Power Loss . . . . . . . 1-500 seconds adjustable

Output Contact Rating

  • 1 Form C. . . . . . . . . . . . . . . . . . . . . . . . 480VA @ 240VAC, B300 Pilot Duty
  • . . . . . . . . . . . . . . . . . . . . . . . . . . . . or 10A @ 240VAC General Purpose
  • Form A & Form B . . . . . . . . . . . . . . 360VA @ 240VAC, B300 Pilot Duty
  • . . . . . . . . . . . . . . . . . . . . . . . . . . . . or 8A @ 240VAC General Purpose

Temperature Range

  • Operating . . . . . . . . . . . . . . . . . -20° to 70°C (-4° to 158°F)
  • Storage . . . . . . . . . . . . . . -40° to 80°C (-40° to 176°F)

Power Consumption . . . . . . . . . . . . . 6 Watts (Max.)

Class of Protection . . . . . . . . . . . . . IP20, NEMA 1 (finger safe)

Relative Humidity . . . . . . . . . . . . . . .10-95%, non-condensing per IEC 68-2-3

Terminal Torque. . . . . . 4.5 in.-lbs

Wire Type. . . . . . Stranded or solid 12-20 AWG, one per terminal

Electrostatic Discharge (ESD). . . . . .IEC 61000-4-2, Level 3, 6kV contact, 8kV air

Radio Frequency Immunity, Radiated. . . . . .150 MHz, 10V/m

Fast Transient Burst. . . . . .IEC 61000-4-4, Level 3, 3.5 kV input power and controls

Surge

  • IEC . . . . . . . . . . . . . . . . . IEC 61000-4-5, Level 3, 4kV line-to-line; Level 4, 4kV line-to-ground
  • ANSI/IEEE . . . . . . . . . . . C62.41 Surge and Ring Wave Compliance to a level of 6kV line-to-line
  • Hi-Potential Test . . . . . . . . . . . . . . . . Meets UL508 (2 x rated V +1000V for 1 min)

Safety Marks

  • UL . . . . . . . . . . . . . . . . . UL508 (File #E68520)
  • CE . . . . . . . . . . . . . . IEC 60947-6-2
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . Polycarbonate

Weight . . . . . . . . . . . . . . . . . . . . . . . . 11.2 oz.

Mounting Method . . . . . . . . . . . 35mm DIN rail or Surface Mount (#6 or #8 screws)

460-MR (manual reset) . . . . . . . . . . . . . . .External NO pushbutton required
