Bargain Cave ~ Huge Discount Offer!
The bargain cave is a collection of clearance and discounted items.
Usually ships within 1 week
SKU : MSR50R4003
In Stock Quantity:0
Pickup available at Coeur d'Alene
Usually ready in 24 hours

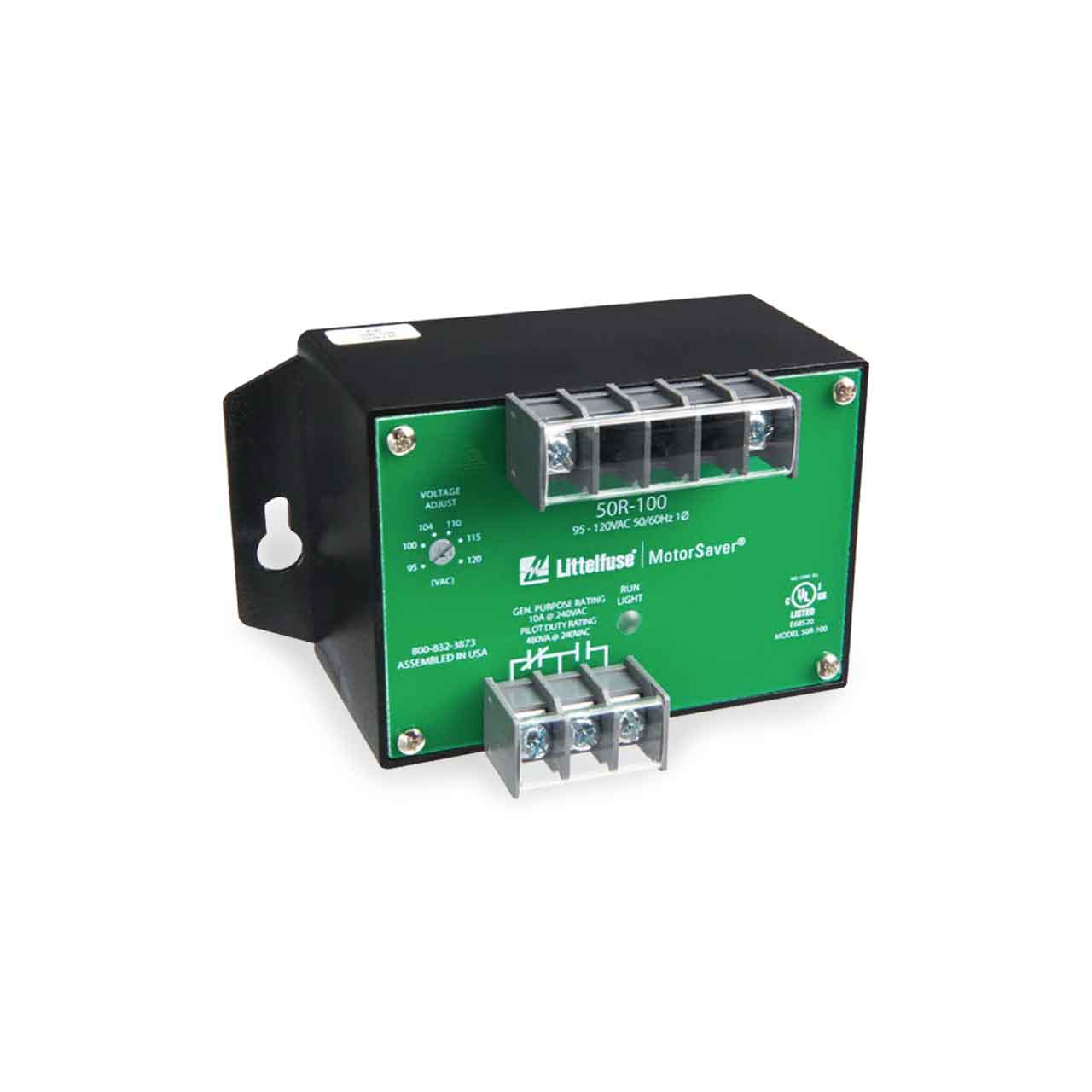

Model 50R Single Phase Voltage Monitor has a voltage sensing circuit which constantly monitors the single phase power for a low voltage condition. Single phase motors on fans, compressors, air conditioners, heat pumps, sump pumps, and small conveyor motors are all applicable to the Model 50R. When a harmful condition is detected the MotorSaver's output relay is deactivated after the specified trip delay. The output relay reactivates after power line conditions return to an acceptable level for the specified amount of time (Restart Delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.
Single-Phase Line Voltage . . . . . . . . . . . . 380-480 VAC
Frequency . . . . . . . . . . . . . . . . . . . . . 50*/60Hz
Low Voltage (% of set point)
Delay Time (Nominal)
Output Contact Rating
Temperature Range
Power Consumption . . . . . . . . . . . . . 5 Watts (Max.)
Relative Humidity . . . . . . . . . . . . . 10-95%, non-condensing per IEC 68-2-3
Terminal Torque . . . . . . . . . . . . . 7 in.-lbs.
Wire Gauge . . . . . . . . . . . . . 12-18AWG
Fast Transient Burst . . . . . . . . IEC 61000-4-4, Level 3, 3.5kV input power and control
Transient Protection (Internal) . . . . . . . . IEC 61000-4-5; 1995 ±6kV
Safety Marks
Weight . . . . . . . . . . . . . . . . . . . . . . . . 15.68 oz.
Mounting Method . . . . . . . . . . . #8 screws
Special Options
*Note: 50Hz will increase all delay timers by 20%
