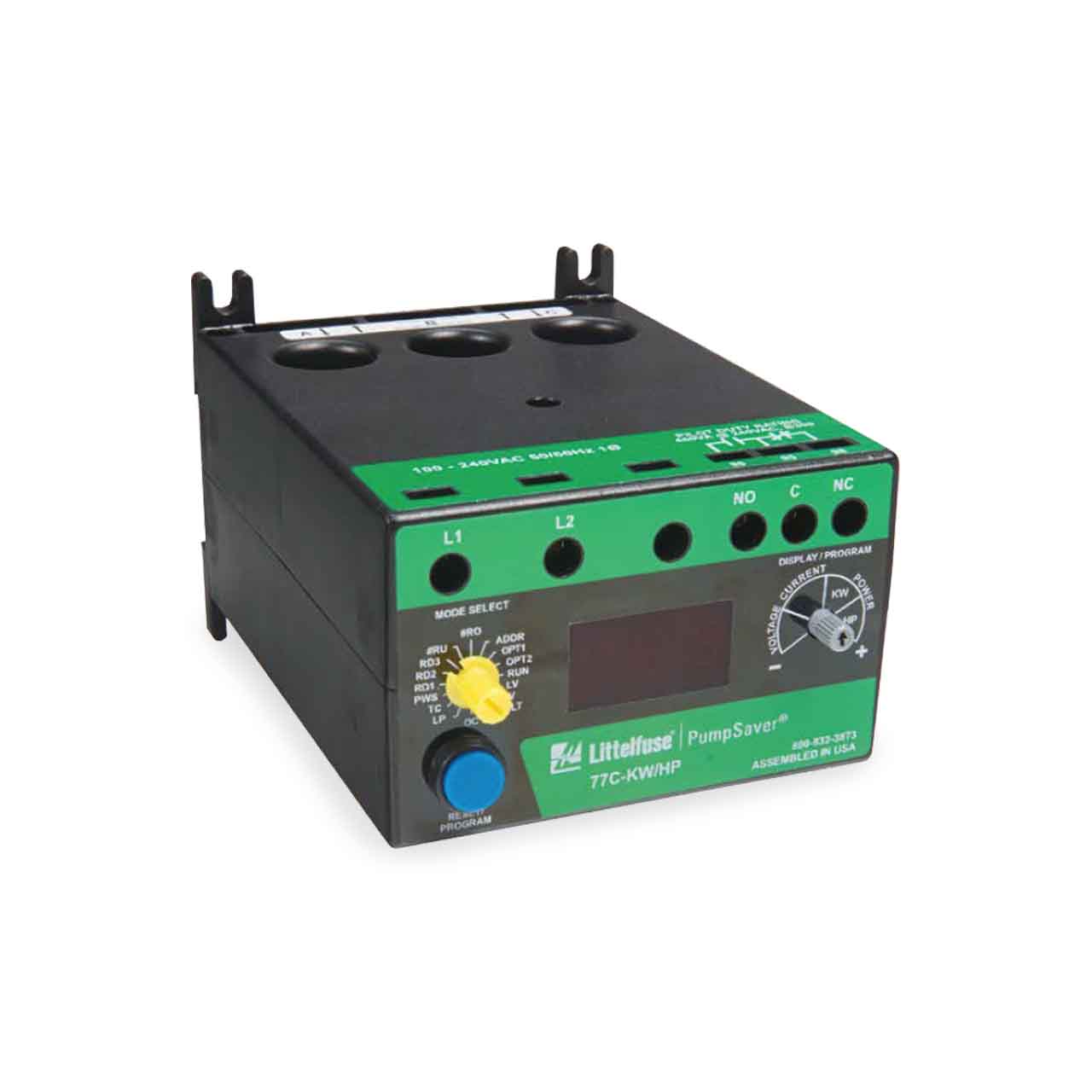

The 77C-KW/HP and 77C-LR-KW/HP are fully programmable pump protection relays which will monitor the voltage and current for high or low voltage, overload and underload conditions based on power, in one package. The underpower trip feature is desirable anytime the current vs. load characteristic is non-linear or has little change. In general terms, smaller motors and slow-speed motors have little change in current over the normal load range. Larger motors that are running light loads will also show small current changes over the operating load range. Common uses include pumping applications where motors run slower than around 3400 rpm and usually have small current vs load changes; such as slow speed mixer or agitator motors up to 50 hp, and magdrive or can pumps. The Littelfuse PumpSaver® relay provides the high sensitivity of a power monitor to protect pump motors from dry run and deadhead conditions.
The 77C-KW/HP Provides 480 VA @ 240 V ac output SPDT (Form C) relay contacts.
Input Voltage . . . . . . . . . . . . . . . . . . . . . 100-240 VAC, 1Ø
Frequency . . . . . . . . . . . . . . . . . . . . 50/60Hz
Motor Full Load Amps
Short Circuit Withstand Rating . . . . . . . . . . . 100kA per UL and CSA
Power Consumption . . . . . . . . . . .5W (Maximum)
Output Contact Rating
Expected Life
Accuracy at 25° C (77° F)
Repeatability
Safety Marks
Electorstatic Discharge (ESD) . . . . . . . . . IEC 61000-4-2, Level 3, 6kV contact, 8kV air
Radio Frequency Immunity (RFI), Conducted . . . . . . . . .IEC 61000-4-6, Level 3 10V/m
Radio Frequency Immunity (RFI), Radiated . . . . . . . . .IEC 61000-4-3, Level 3 10V/m
Fast Transient Burst . . . . . . . . .IEC 61000-4-4, Level 3, 3.5kV input power
Surge
Terminal Torque . . . . . . . . . . . . . . . . . . 7 in.-lbs
Enclosure Material . . . . . . . . . polycarbonate
Weight . . . . . . . . . . . . . . . . . . . . . . . . 1.2 lbs<
Temperature Range
Class of Protection . . . . . . . . . . . . . . . . . . . . IP20, NEMA 1
Relative Humidity . . . . . . . . . . . . . . . . . . . . . 10-95%, non-condensing per IEC 68-2-3
Programable Operating Points
* If J Prefix is displayed in trip class setting, jam protection is enabled. If programmed to Lin position, overcurrent trip delays are fixed linear-type delays set in OPT1 position
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Littelfuse 77C-KW/HP Product Specifications
