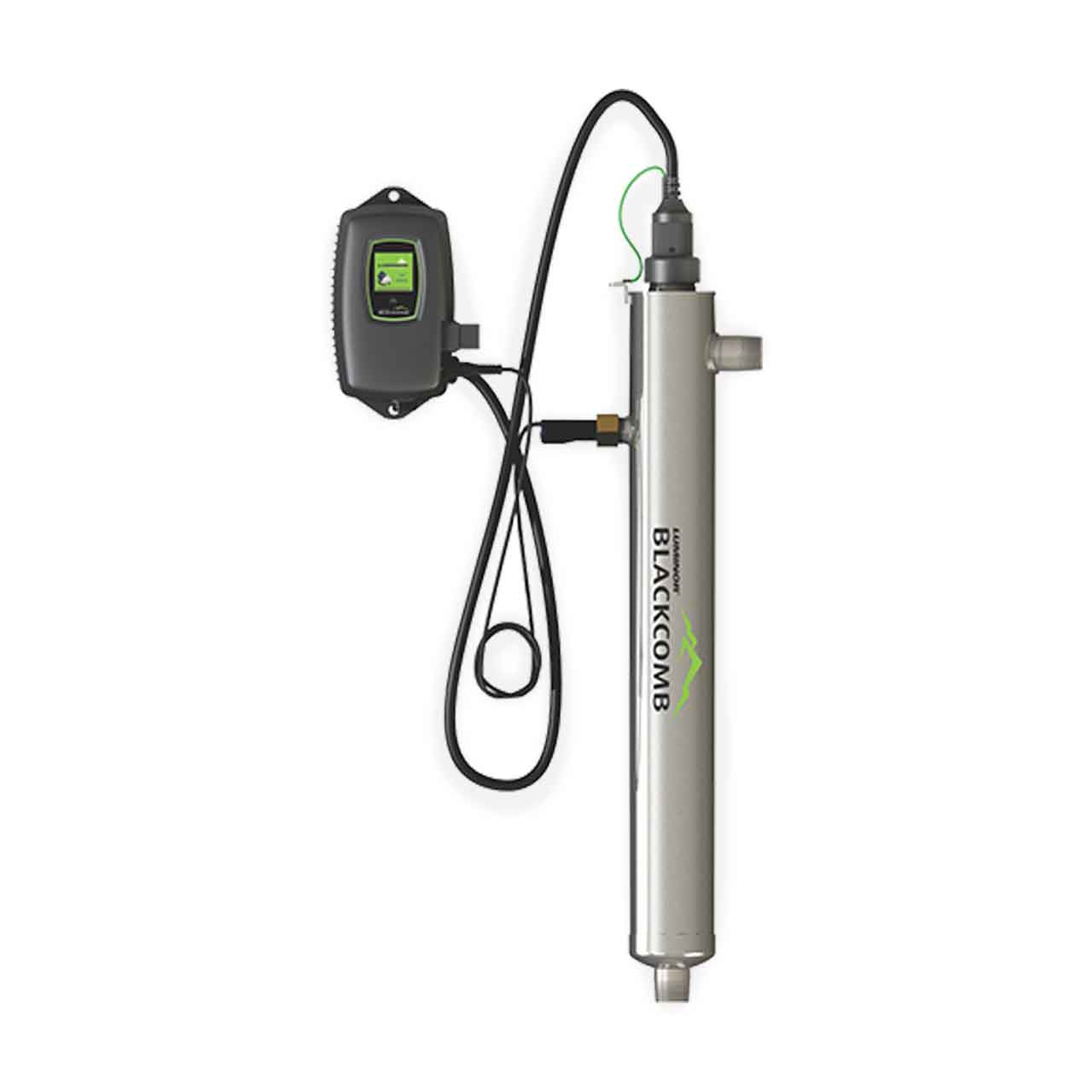

Luminor BLACKCOMB 6.1

For the ultimate in whole home water UV disinfection, LUMINOR's BLACKCOMB 6.1 line should be your choice. Incorporating a true 254nm discrete UV monitor, this BLACKCOMB series offers the ultimate in continuous monitoring for 24 hour peace-of-mind. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system even incorporates QR codes to access lamp change information and videos via web access. The controller is a constant current electronic power source and is housed in a splash-proof case that comes standard with a “future-proof” expandability port for future upgrades or options. Rugged 304 stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Reliable, industry proven, high quality low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour life. Paired with LUMINOR's encrypted lamp key for increased protection and ease of use. Flow rates of 20, 40, 57 & 80 lpm (6, 10, 15 & 20 gpm), in both 120V or 230V applications, are offered in the BLACKCOMB 6.1 series of products. Also available in NSF Class B or NSF Class A

Luminor BLACKCOMB 6.1 Features:

• Axial Flow, 304 Stainless Steel Polished Reactors for Optimum Fluid Dynamics Yet Still Allows for Lamp/Sleeve Service without the Need to Drain the Water.
• Low Pressure (LP) Coated UV Lamps Consistent UV Output throughout Rated Lamp Life of 9,000 Hours.
• Sensor Port for Future Upgradeability, Comes with Integral visual Glow Plug.
• Now with LED Lamp Countdown Constant Current Electronic Ballast.
• Colour User Interface with Full Diagnostics and Warnings Including QR Codes.
• LB5/6 Systems Include LIGHTLOCK Technology for Protected Lamp Sales.
• IEP (infinite expandability port) for Future Upgrades and Options.
• 254 nm Teflon Based UV Sensor with 4-20 mA Output Capabilities and Solenoid Ready Capabilities (optional modules required)

Luminor BLACKCOMB 6.1 Specifications:

• System: LB6-061
• Application: POE (point-of-entry)
• Flow Rate: 6 US GPM (22.7 lpm)
• Inlet/Outlet Port Size: 3/4” MNPT
• Electrical: 110 V
• Power Watts: 30W
• U.V. Lamps: RL-470
• Quartz Sleeves: RQ-470
• Lamp & Sleeve Combo: RLQ-470
• Controller: RC-B56.01
• UV Sensor: RS-B2.5

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Luminor BLACKCOMB 6.1 Product Resources:

Download Luminor BLACKCOMB 6.1 Drinking Water System Specifications

Download Luminor BLACKCOMB 6.1 Owners Drinking Water System Manual

Download Luminor BLACKCOMB 6.1 LightLock Controller Specifications
