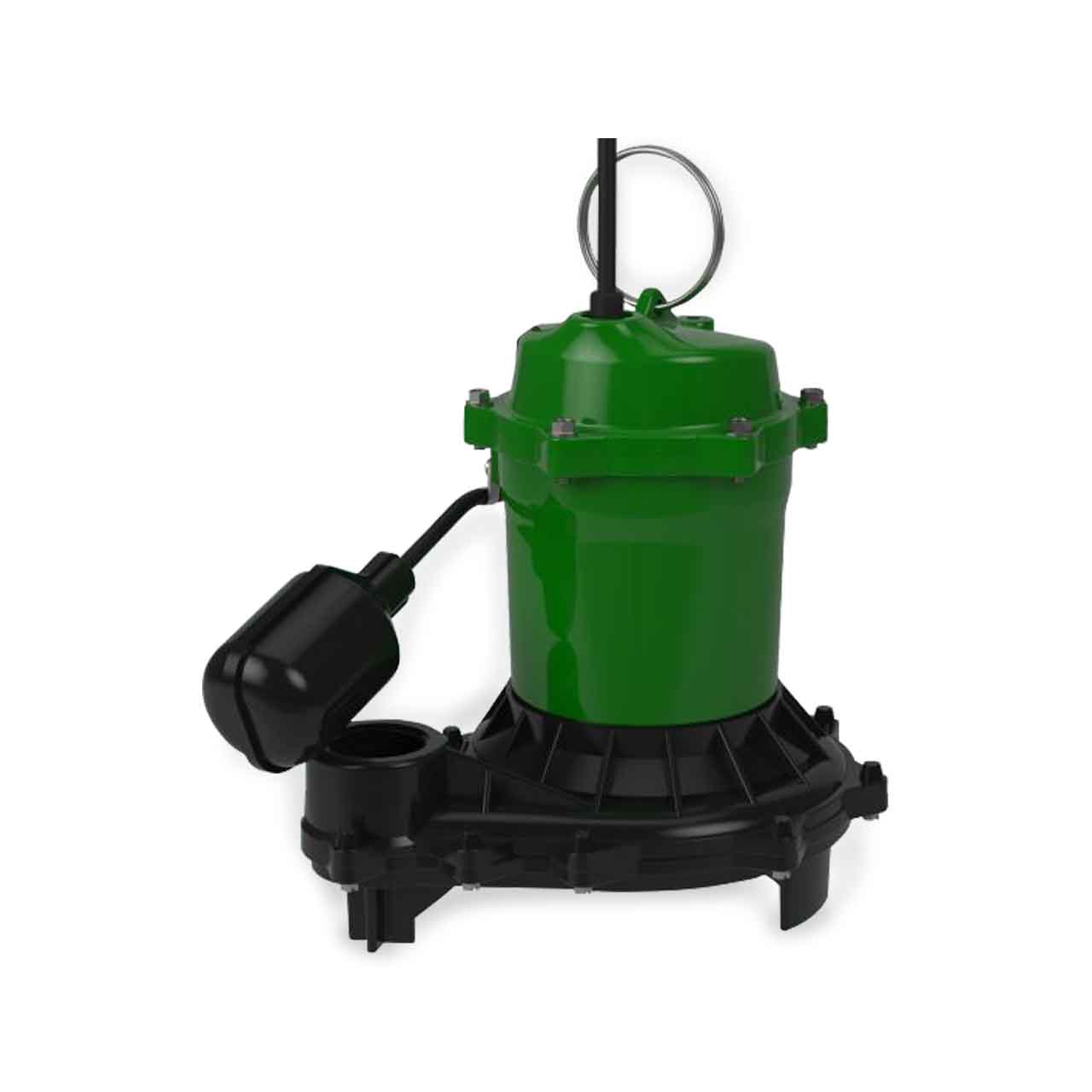

Myers ME40P-1 Cast Iron Effluent Pump 0.4 HP 115V 10' Cord Automatic

Myers ME40P-1 Cast Iron Effluent Pump 0.4 HP 115V 10' Cord Automatic

Ships within 24 hours

SKU : MYRME40P1

In Stock Quantity:2

:
Brand : Myers
$578.34 USD
Shipping calculated at checkout.

Description


Myers ME40 Series Cast Iron Effluent Pump Description

The Myers® ME40 Series Effluent Pumps are one of the industry's most efficient models featuring a 4/10 HP motor. This powerful pump provides the flow and head required for demanding dosing systems and drainage applications. The ME40 incorporates cast iron, engineered thermoplastic and stainless steel in combination to produce a powerful and highly durable pump.

Myers ME40 Series Cast Iron Effluent Pump Typical Applications

  • Effluent Removal
  • Sump Drainage
  • Water Transfer
  • Flood Control

Myers ME40 Series Cast Iron Effluent Pump Features

  • Enclosed Design for High-Efficiency Pumping
  • Eliminates Possibility of Jamming Between Impeller and Volute
  • Passes Full 3/4” Solids
  • Durable Motor Will Deliver Many Years of Reliable Service
  • Oil-Filled Motor for Maximum Heat Dissipation and Continuous Bearing Lubrication
  • Lower Ball Bearing and Heavy-Duty, Type 6 Seal for Added Pump Life
  • Positive Sealing, Quick-Connect Float and Switch Cords Make Replacement Simple if Service is Ever Necessary
  • Field-Tested, Wide-Angle, Mercury-Free Mechanical Float Switch Provides Maximum Drawdown

Specifications

Myers ME40P-1 Cast Iron Effluent Pump Specifications

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 0.4 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1650
  • MAXIMUM HEAD: 32'
  • MAXIMUM CAPACITY: 80 GPM
  • SWITCH TYPE: Tethered Automatic
  • MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
  • DISCHARGE PIPE SIZE: 1-1/2" FNPT
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
  • IMPELLER TYPE: Cast Iron, Two-Vane Enclosed
  • CORD LENGTH: 10'
  • CORD SIZE: 16-3; Type: SJTW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME40 Series Cast Iron Effluent Pump Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers ME40 Series Cast Iron Effluent Pump Product Resources


Download Myers ME40 Series Cast Iron Effluent Pump Data Sheet

Download Myers ME40 Series Cast Iron Effluent Pump Specifications

Download Myers ME40 Series Cast Iron Effluent Pump Installation & Service Manual
