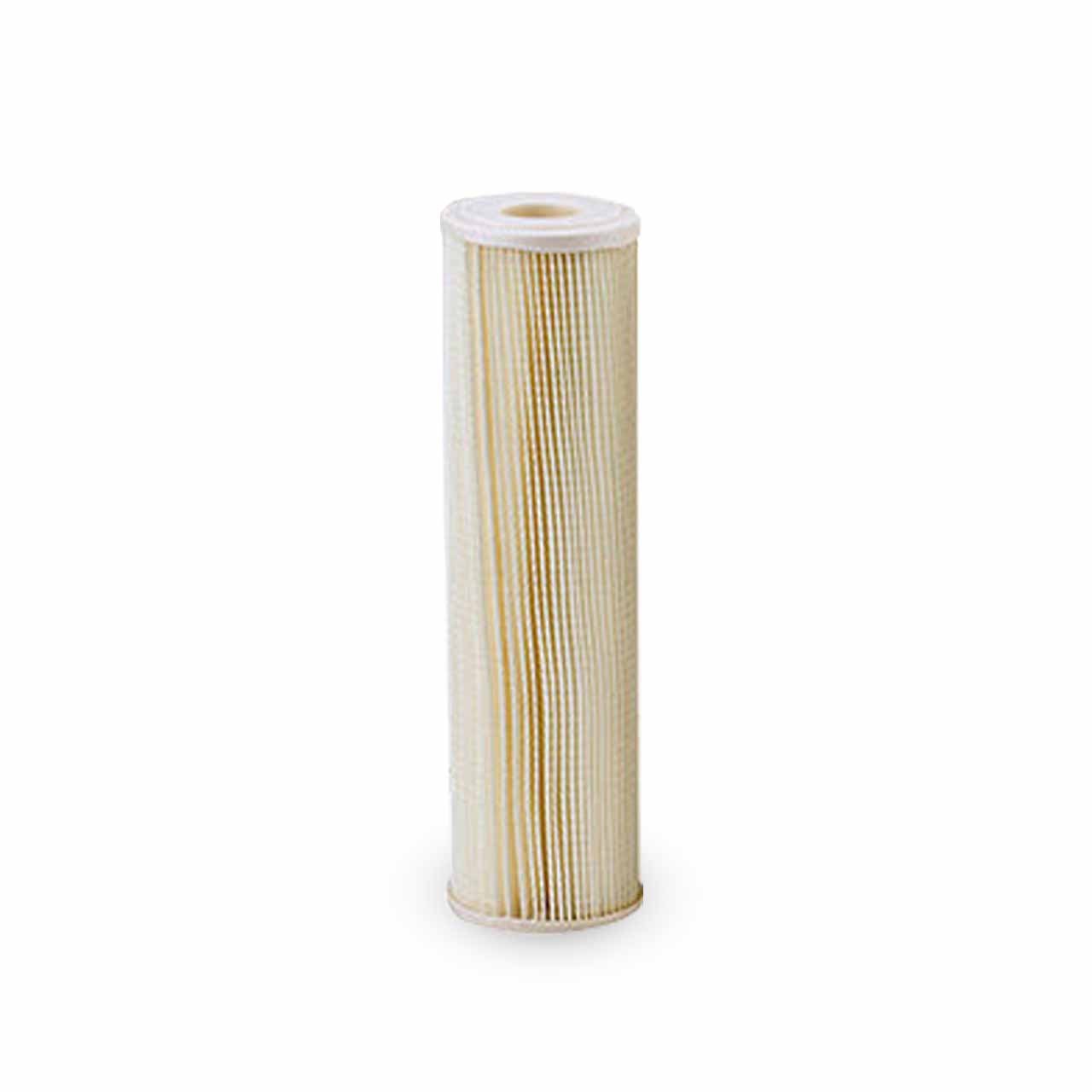

ECP Series cartridges are manufactured from a special formulation of
resin-impregnated cellulose and polyester fibers.
This unique blend of materials provides a higher wet strength than regular
cellulose cartridges. The 10-inch 5 micron sediment filter also provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
The media is pleated around a polypropylene core for added strength and the
ends are immersed in a thermo-setting vinyl plastisol. Embedding and
sealing each end of the pleat block in this fashion fuses the components
together forming a unified endcap and gasket.
ECP Series cartridge endcaps feature a color-coding system for easy
identification of micron ratings: Tan
(1-micron), White (5-micron), Blue (20-micron), Yellow (50-micron).
This 10-inch 5 micron sediment filter contains more media surface area than most competitive cartridges. The standard 10-inch ECP cartridge contains six square feet of
media, where most cartridges contain only 4.5 square feet. Other available
ECP cartridge sizes contain the following amount of media:
Standard 10" Cartridge – 6 ft²
Standard 20" Cartridge – 12 ft²
BB 10" Cartridge – 18 ft²
BB 20" Cartridge – 36 ft²
Pentek ECP Filter Features
- Replaces CP and HFCP Series Cartridges
- Special Formulation of Resin-Impregnated Cellulose and Polyester Fibers
- Provides Higher Wet Strength than Regular Cellulose Cartridges
- Minimal Unloading and Media Migration
Pentek ECP Filter Specifications
- Filter Media - Cellulose Polyster
- Standard Endcaps - Vinyl Plastisol
- Big Blue Endcaps - Polypropylene
- Core - Polypropylene
- Temperature Rating - 40-125°F (4.4-51.7°C)
Pentek ECP Filter Technical Data
