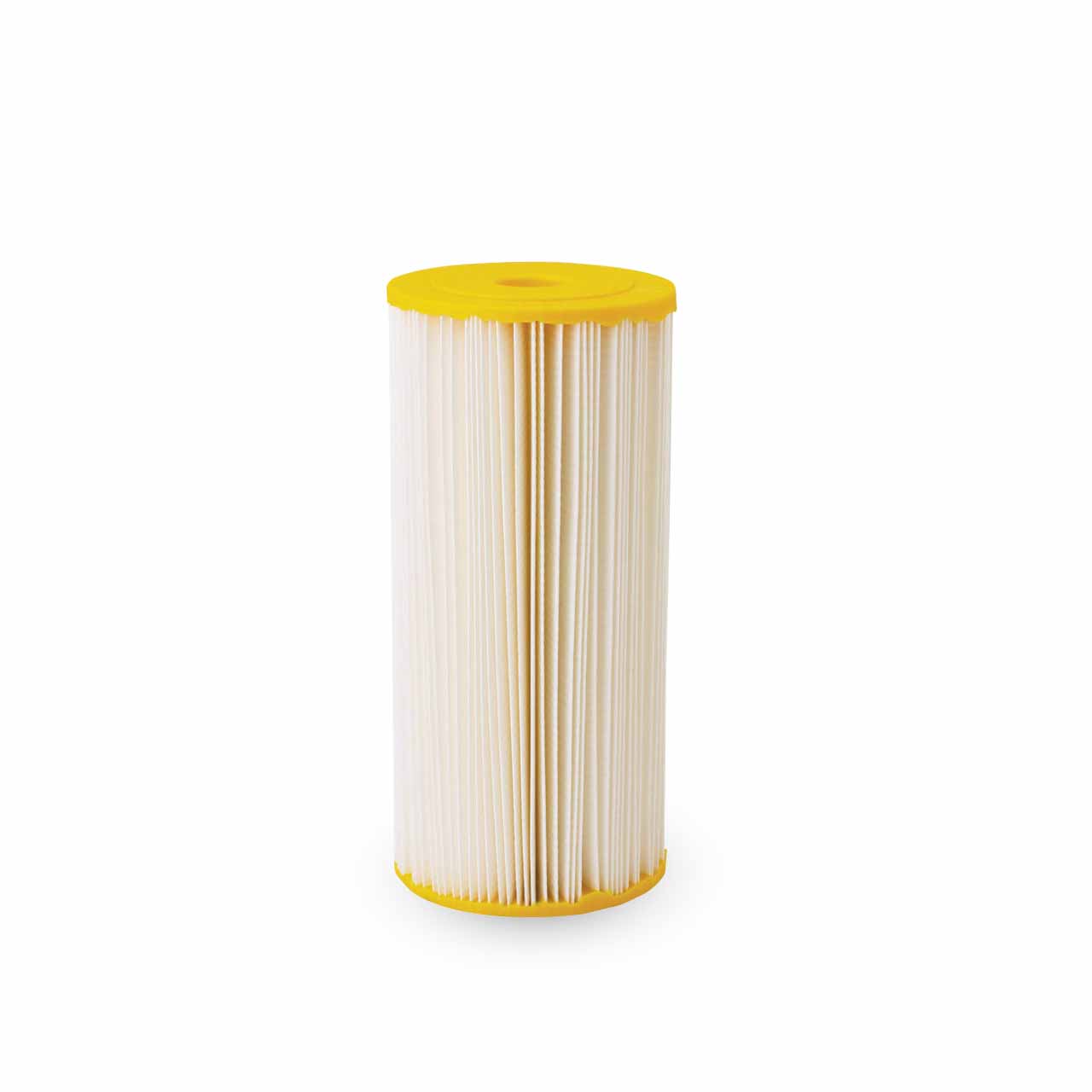

ECP Series cartridges are manufactured from a special formulation of
resin-impregnated cellulose and polyester fibers.
This unique blend of materials provides a higher wet strength than regular
cellulose cartridges. The 50 micron filter cartridge also provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
The media is pleated around a polypropylene core for added strength and the
ends are immersed in a thermo-setting vinyl plastisol. Embedding and
sealing each end of the pleat block in this fashion fuses the components
together forming a unified endcap and gasket.
ECP Series cartridge endcaps feature a color-coding system for easy
identification of micron ratings: Tan
(1-micron), White (5-micron), Blue (20-micron), Yellow (50-micron).
This 50 micron filter cartridge contains more media surface area than most competitive cartridges. The standard 10-inch ECP cartridge contains six square feet of
media, where most cartridges contain only 4.5 square feet. Other available
ECP cartridge sizes contain the following amount of media:
Standard 10-inch Cartridge – 6 ft²
Standard 20-inch Cartridge – 12 ft²
10-inch BB Cartridge – 18 ft²
20-inch BB Cartridge – 36 ft²
Pentek ECP Filter Features
- Replaces CP and HFCP Series Cartridges
- Special Formulation of Resin-Impregnated Cellulose and Polyester Fibers
- Provides Higher Wet Strength than Regular Cellulose Cartridges
- Minimal Unloading and Media Migration
Pentek ECP Filter Specifications
- Filter Media - Cellulose Polyster
- Standard Endcaps - Vinyl Plastisol
- Big Blue Endcaps - Polypropylene
- Core - Polypropylene
- Temperature Rating - 40-125°F (4.4-51.7°C)
Pentek ECP Filter Technical Data
