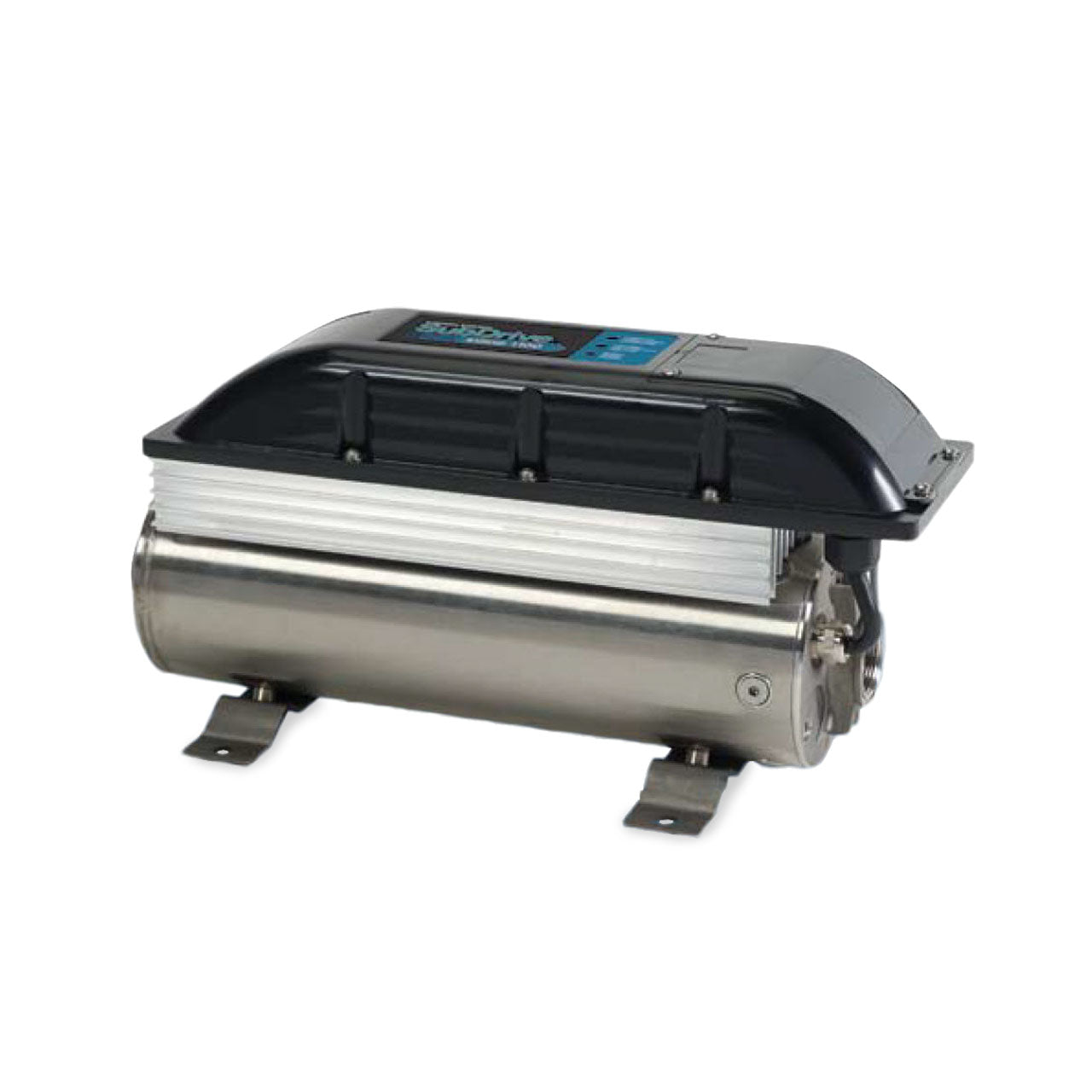

Franklin Electric SubDrive Inline Applications

• Boosted and Constant Water Pressure from Water Storage/Cistern Systems
• Homes (in both private and municipal applications)
• General Pressure Boosting
• Sprinkler Systems
• Farming and Commercial Wash Down Systems

Franklin Electric SubDrive Inline Features

• Pump, Motor, Drive and Pressure Switch in One Box as a Packaged System
• Small and Compact Design Fits into Small Areas, Even Between Floor Joists
• Stainless Steel Construction for Years of Operation
• Simple and Easy Installation - Step-by-Step Illustrated Instructions
• Integrated Motor Design Allows Water to Flow Around it for Quiet and Cool Operation
• NEMA 4 (IP56) Electronics Enclosure
• Multiple Mounting Configurations Allow for the Unit to Be Installed Where You Need it, Whether Horizontal, Vertical or Even Upside Down
• Built-In System Protections Guard the Inline Unit from Many Common Failure Modes Including: Surge Protection, Voltage Underload, Locked Pump, Open Circuit, Short Circuit and Overheated Controller.

Franklin Electric SubDrive Inline Specifications

• DISCHARGE SIZE: 1.25" MNPT
• INLET SIZE: 1.25" MNPT
• MAXIMUM CAPACITY: 60'
• MAXIMUM HEAD: 40 GPM
• IMPELLER MATERIAL: Stainless Steel
• HORSEPOWER: 1.2 HP
• VOLTAGE: 1ø, 230V, 60Hz
• FULL LOAD AMPS: 12
• MAXIMUM LIQUID TEMPERATURE: 104ºF (40ºC)

Franklin Electric SubDrive Inline 1100 Performance Curve
