SJE- Rhombus NEX Series® Single Phase Simplex Control Panel Description

Compact Single Phase Simplex Control Panel

The NEX Series® simplex panel is designed to control one single phase pump in water and wastewater applications. Two control switches activate a power relay to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audible/visual alarm system. The compact design (8 x 6 x 4″) is ideal for residential applications. Universal pump voltage and control/alarm power allows the NEX Series® simplex panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.

SJE-Rhombus NEX Series® Simplex Panel Features

PANEL COMPONENTS:

• Enclosure Measures 8x6x4 in NEMA 4X
• Padlockable Latch
• Integral Mounting Feet for Indoor and Outdoor Use
• Power Relays (not shown) Control Pump by Switching Electrical Lines
• HOA Switches for Manual Pump Control
• Green Pump Run Indicator Lights
• Field Wiring Terminal Blocks
• Control/Alarm Fuses
• Control/Alarm Power Indicator
• Ground Lug
• Circuit Breakers
• Float Status Indicator Lights
• Elapsed Time Meters (optional)
• Standard Alarm Package
  • Red Alarm Beacon
  • Alarm Horn
  • Exterior Alarm Test/Silence Push Button Switch
  • Auxiliary Alarm Contacts

FEATURES:

• Compact 8x6x4" Enclosure Design is an Ideal Solution for Residential Applications
• Universal Pump Voltage and Control/Alarm Power; One Panel Handles Three Voltages (120/208/240)
• Integral Mounting Tabs for Easy Installation
• Integral Padlockable Latch for Added Safety
• Innovative Design of Internal Components Allows for Quick, Simple Installation.
• UL/cUL Listed
• Five-Year Limited Warranty
• Patent Pending

SJE-Rhombus NEX Series® Simplex Panel Specifications

• VOLTAGE SUPPLY:
  • PUMP: 120/208/240 VAC, 50/60 Hz
  • CONTROL/ALARM: 120/208/240 VAC. 50/60 Hz
• ENCLOSURE: 8x6x4 inches (20.32 x 15.24 x 10.16 cm) Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)
• FLOAT CONTROL VOLTAGE: 12 VDC
• PUMP AMPS: 0-12 Amps
• AUXILIARY ALARM CONTACTS: Form C, 5 Amp, 120 VAC Max
• ALARM HORN: 85-90 Decible Rating

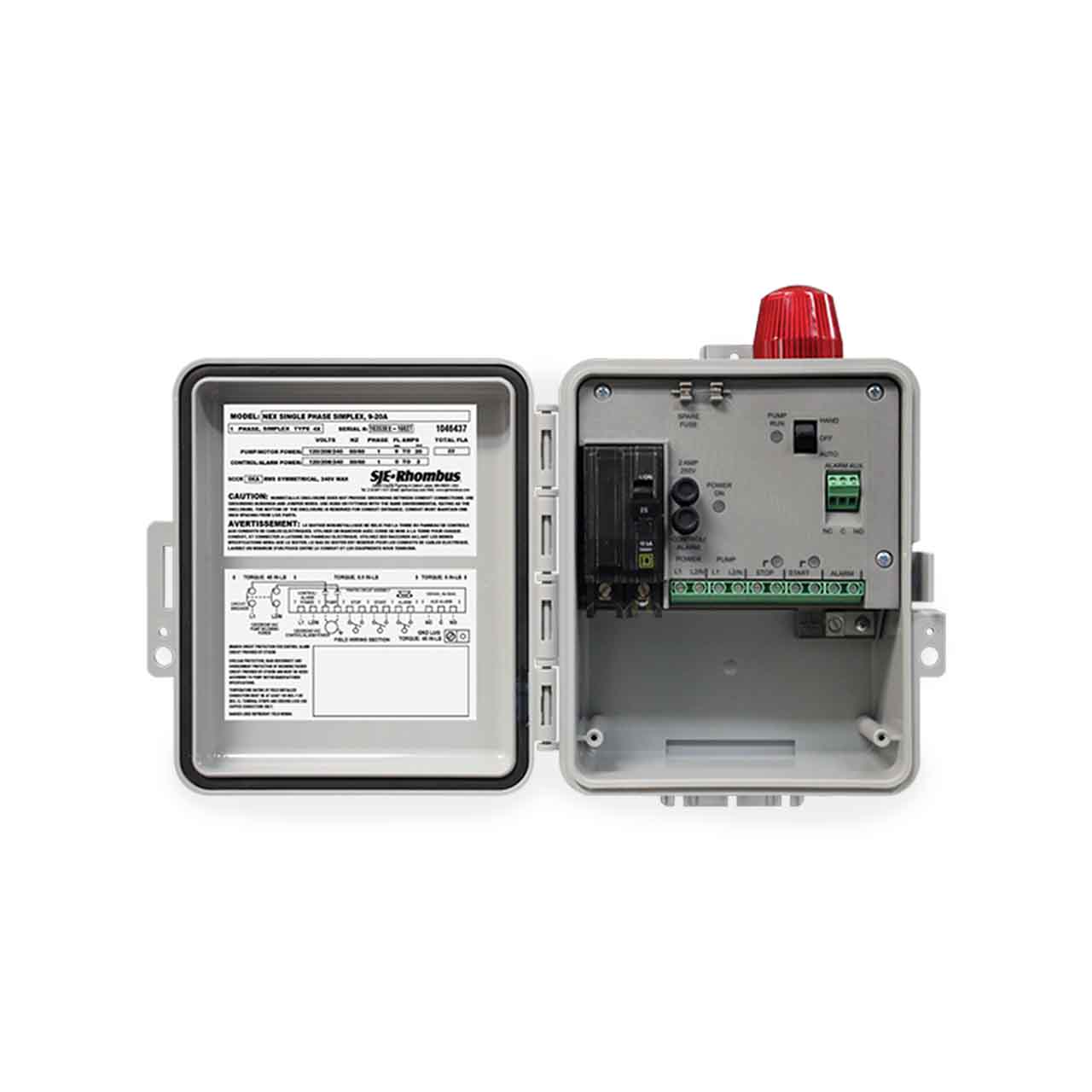

SJE-Rhombus NEX Series® Simplex Panel Components

1. Enclosure Measures 8x6x4 inches (20.32 x 15.24 x 10.16 cm) NEMA 4X (ultraviolet stabilized thermoplastic) for indoor or outdoor use.
2. Integral Padlockable Latch for Added Safety.
3. Integral Mounting Feet
4. Power Relay Controls Pump by Switching Electrical Lines (not shown).
5. HOA Switches for Manual Pump Control.
6. Green Pump Run Indicator Lights
7. Field Wiring Terminal Blocks
8. Control/Alarm Fuses
9. Control/Alarm Power Indicator. (Not available with Elapsed Time Meter option.)
10. Ground Lug
11. Circuit Breaker Provides Pump Disconnect and Branch Circuit Protection.
12. Float Status Indicator Lights (Stop and Start float status) (Float/Control Voltage: 12VDC).
13. Elapsed Time Meters (optional - not shown) Provides Individual Pump Run-Time in Hours.
14. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
15. Alarm Horn Provides Audible Warning of Alarm Condition (85 to 90 decible rating) (not shown).
16. Exterior Alarm Test/Silence Push Button Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition has Been Cleared (not shown).
17. Auxiliary Alarm Contents are Provided for Signaling an External Device (Form C, 5 amp, 120V max).
