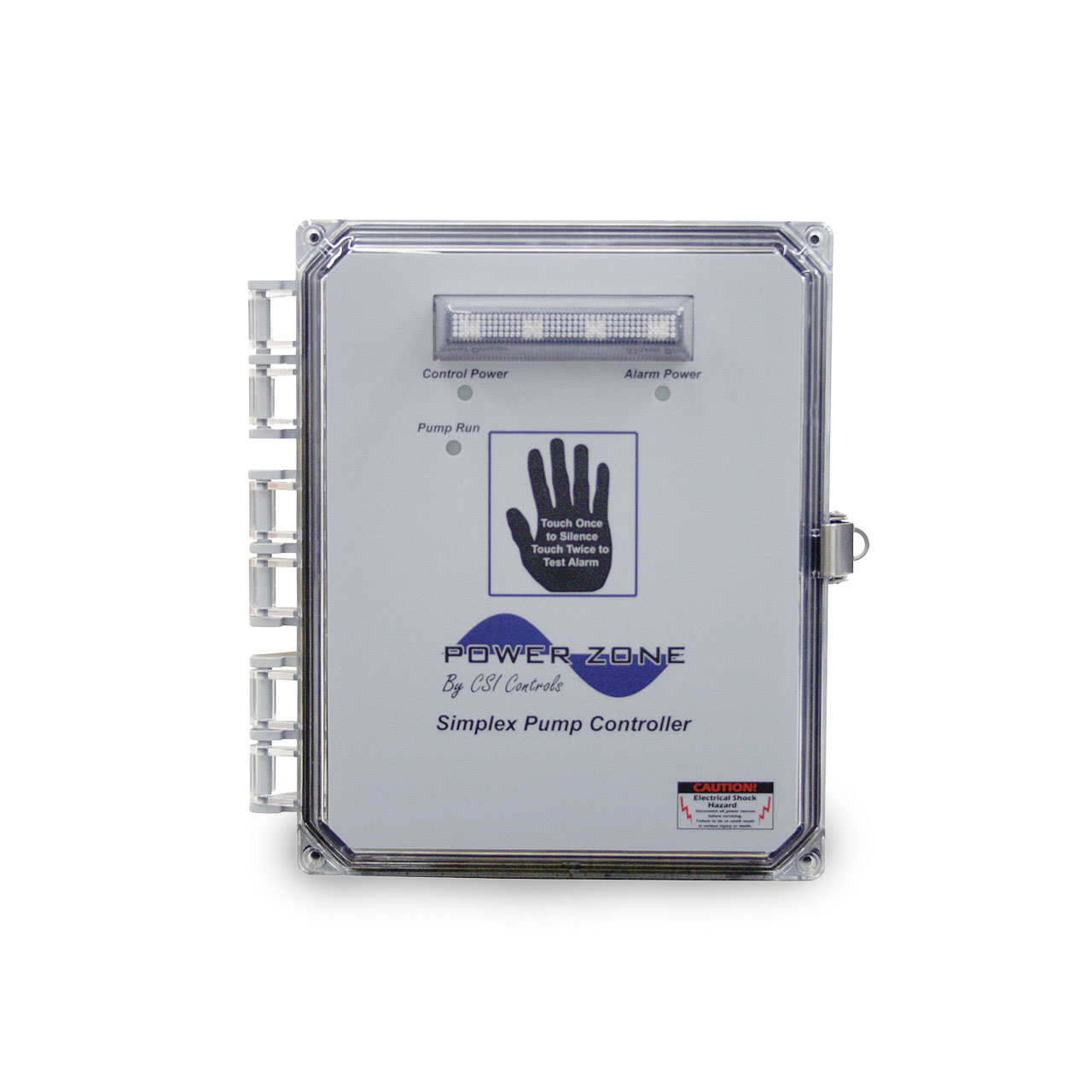

CSI Controls PZSF230CB-FC20 Power Zone Simplex Pump Panel 230V Floats
CSI Controls PZSF230CB-FC20 Power Zone Simplex Pump Panel 230V Floats
SKU : CSIPZSF230CB-FC20
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Power Zone Control Panels
CSI Controls Power Zone Pump Control Panels

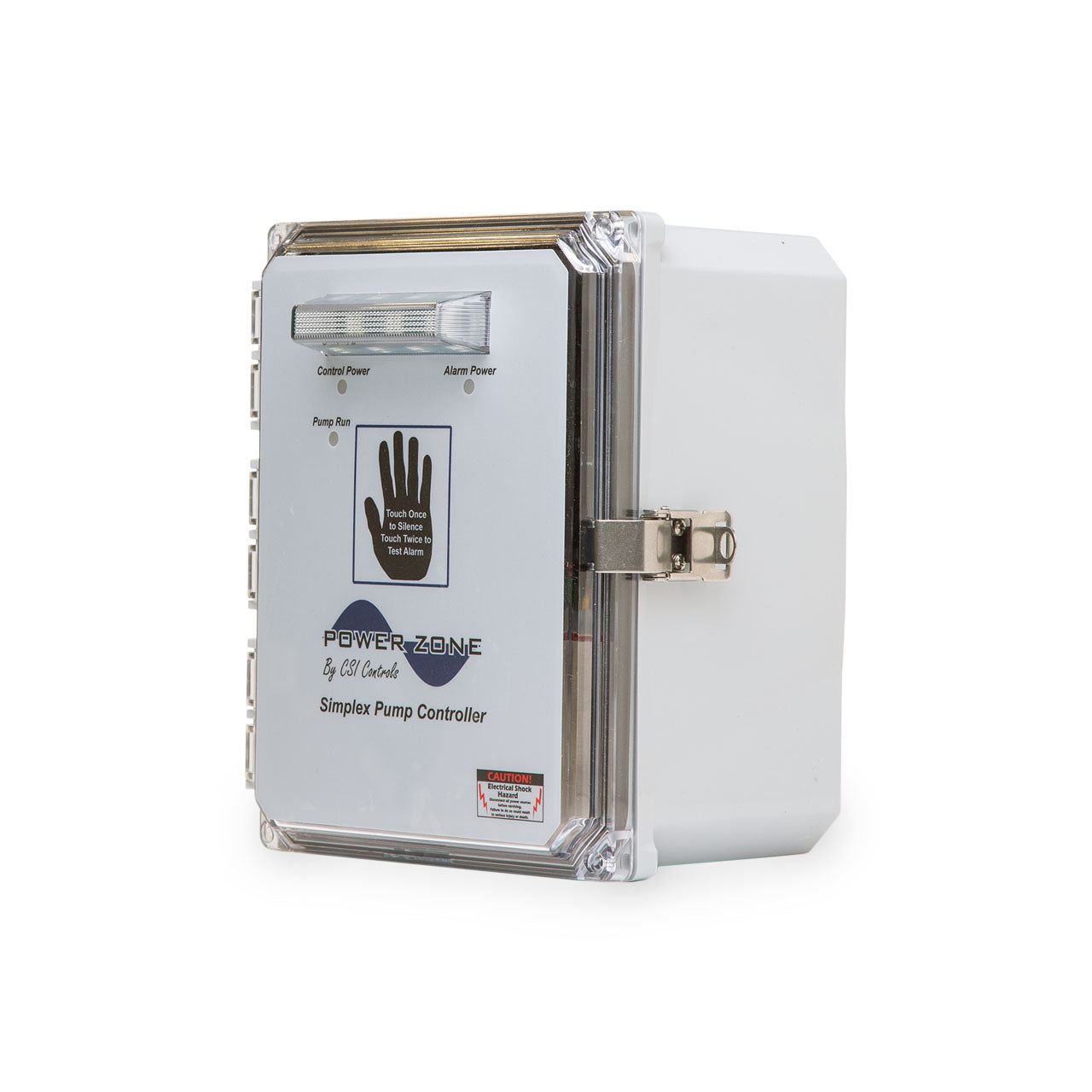

Power Zone™ control panels utilize "zero crossing" technology to maximize relay life by increasing load capacity of the relay. Each NEMA 4X control panel features an exclusive front mounted touch-to-silence-pad with exterior LED indicator lights and a digital display for programming pump information, including elapsed time, cycle counter, high level counter, float status indicators, low level alarm on/off selection, lead pump selection and alarm settings. Power Zone™ panels are available in single phase models: Simplex (demand and timed dose) and Duplex (demand dose) applications. Optional pedestal with access door is available for easy installation. UL/cUL Listed.
The PZSF230CB-FC20 Replaces the PZSF230CB-F
Specifications
Specifications
CSI Controls Power Zone Pump Control Panel Features
- Exterior Touch to Silence/Touch Twice to Test Circuitry
- External Alarm & Control Power Lights
- External Pump Run Light(s)
- Internal Hand Run Button(s) with Latching Feature
- Internal Pump Run Indicator Light(s)
- Alarm & Control Short Circuit Indicator Lights
- No Holes Drilled or Cut for Lights, Audible Alarm, or Silence Devices

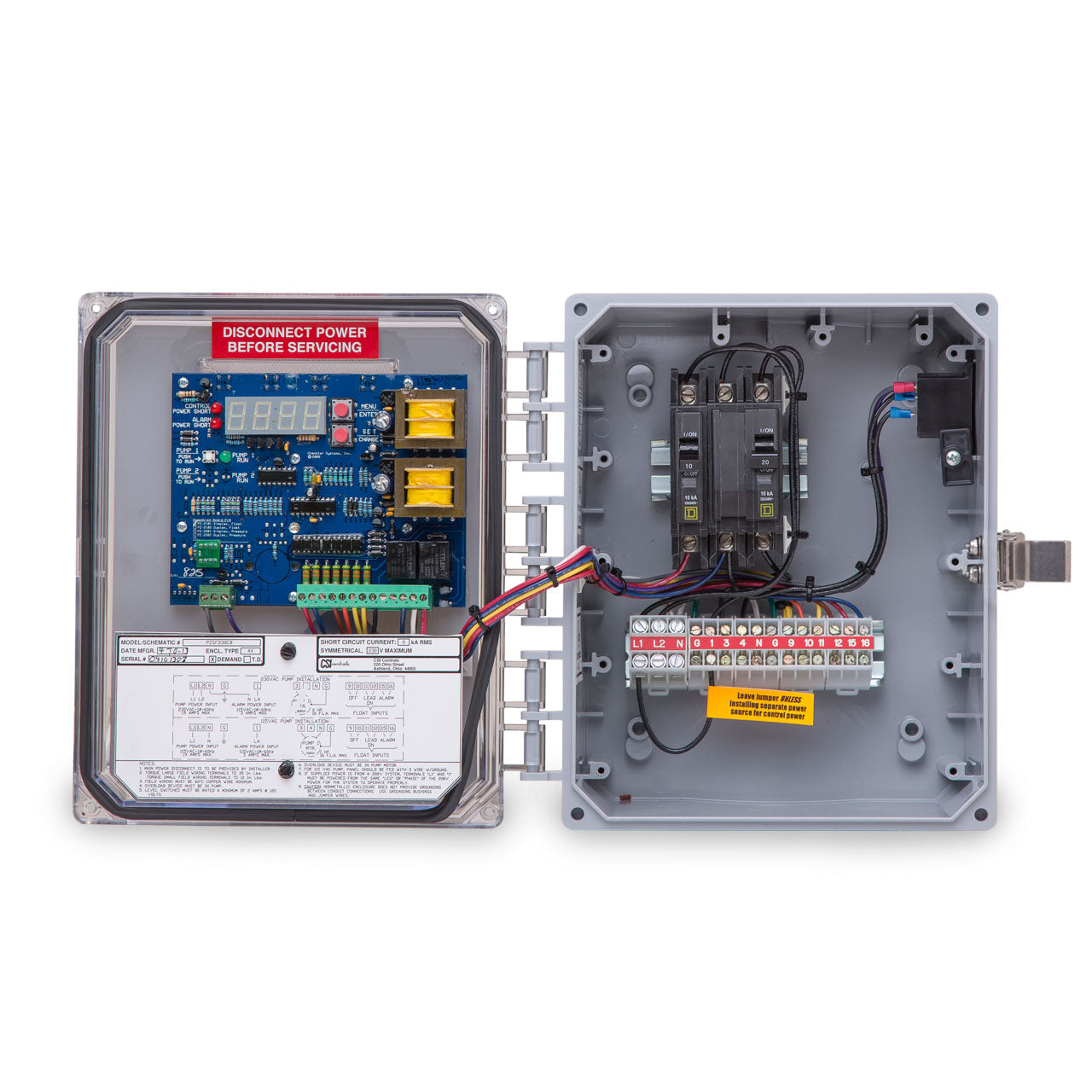

- Quick Disconnect Circuit Boards - Simple Field Troubleshooting
- Field Wiring Terminal Strip
- Lockable Hasp
- Standard Digital Display Center Includes:
- Elapsed Time Meter for Each Pump (reset-able)
- Cycle Counter for Each Pump (reset-able)
- High Level Counter
- Float Status Indication
- Alternation with Lead Pump Selection (duplex panels)
- Optional Time Dose Version:
- Pump Run/Off Timer
- Timer Override Counter
- Override Timer with Settable Override Run and Off Time
CSI Controls Power Zone Simplex Float Activated Pump Panel Models & Options
|
POWER ZONE SIMPLEX FLOAT ACTIVATED PUMP CONTROL PANEL MODELS & OPTIONS |
|||||
|
MODEL |
MAX FLA |
ENCLOSURE TYPE |
INPUT POWER VOLTS/PHASE |
CIRCUIT BREAKERS |
|
|
PZSF115 |
20 |
NEMA 4X |
115/1 |
NONE |
|
|
PZSF115CB |
16 |
NEMA 4X |
115/1 |
MOTOR & ALARM |
|
|
PZSF115ACB |
16 |
NEMA 4X |
115/1 |
MOTOR, CONTROL & ALARM |
|
|
PZSF230 |
20 |
NEMA 4X |
230/1 |
NONE |
|
|
PZSF230CB |
16 |
NEMA 4X |
230/1 |
MOTOR & ALARM |
|
|
PZSF230ACB |
16 |
NEMA 4X |
230/1 |
MOTOR, CONTROL & ALARM |
|
|
OPTIONS |
|||||
|
OPTION |
OPTION DESCRIPTION |
||||
|
FC20 |
INCLUDES (3) 20 FOOT MECHANICAL FLOAT CONTROL SWITCHES |
||||
|
FR20 |
INCLUDES (3) 20 FOOT MERCURY FLOAT CONTROL SWITCHES |
||||
|
FC30 |
INCLUDES (3) 30 FOOT MECHANICAL FLOAT CONTROL SWITCHES |
||||
|
FR30 |
INCLUDES (3) 30 FOOT MERCURY FLOAT CONTROL SWITCHES |
||||
|
FC50 |
INCLUDES (3) 50 FOOT MECHANICAL FLOAT CONTROL SWITCHES |
||||
|
FR50 |
INCLUDES (3) 50 FOOT MERCURY FLOAT CONTROL SWITCHES |
||||
|
X |
AUXILIARY ALARM & REDUNDANT OFF |
||||
|
HD |
HEAVY DUTY - INCREASES BREAKERS AND WIRE GAUGE TO ALLOW 16-20 FLA |
||||
|
PED |
INCLUDES POLY PEDESTAL WITH ACCESS DOOR |
||||
|
TD |
INCLUDES TIME DOSING PROGRAM |
||||
|
EXAMPLE: PZSF115CB-FC20-HD |
|||||
