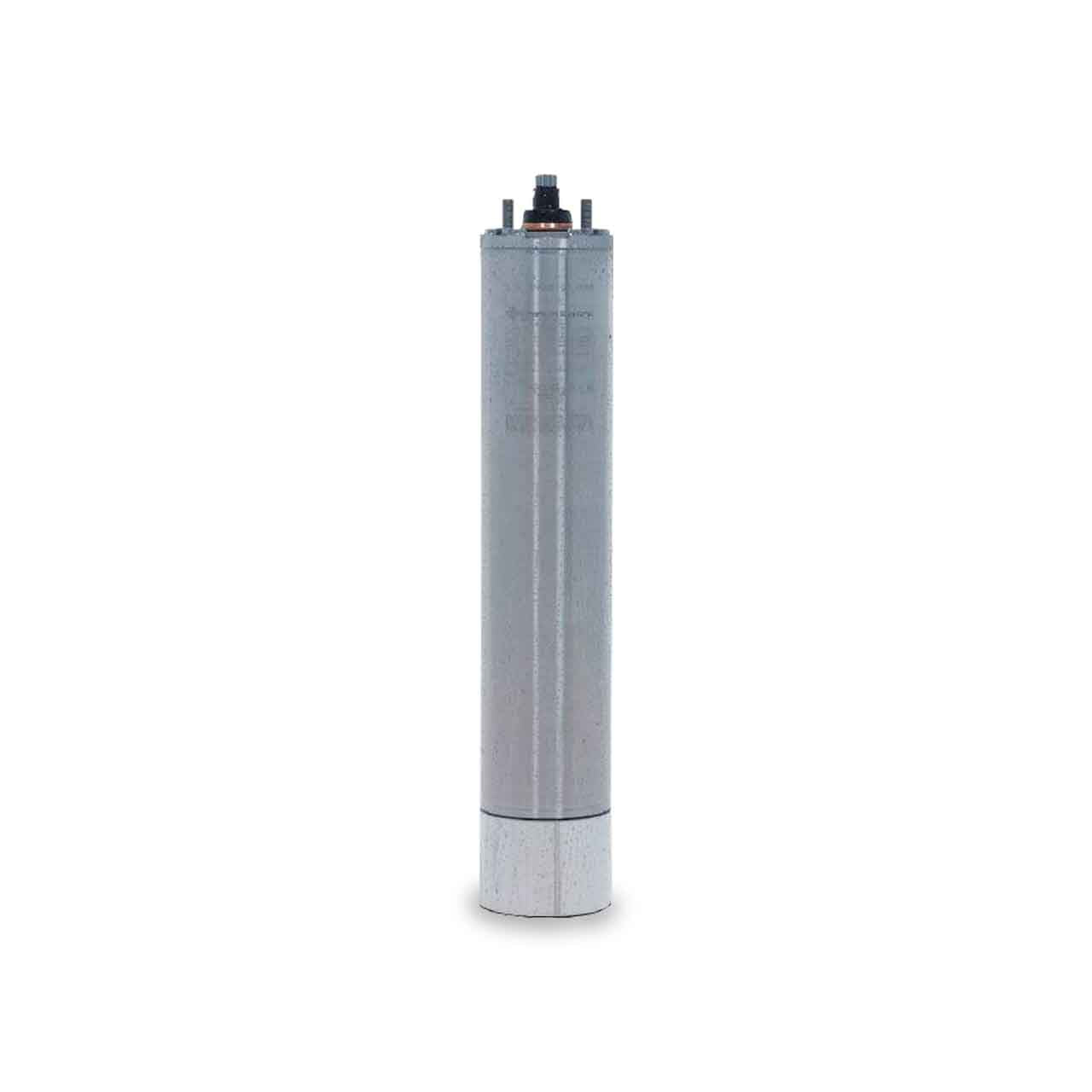

Franklin Electric 2346268996 CBM+ Submersible Motor 4" 15 HP 460/380V 3-Phase
Franklin Electric 2346268996 CBM+ Submersible Motor 4" 15 HP 460/380V 3-Phase
SKU : FEC2346268996X
In Stock Quantity:-1
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Submersible Motors
Franklin Electric 4" CBM+ Submersible Motors
Franklin Electric’s CBM+ motor is engineered for superior dependability in a 4" and larger casing. Suitable for marginal oil and gas wells, this motor is rated for continuous operation in 122°F (50°C) water at 1/4 feet-per-second and 176°F (80°C) water at 1 foot-per-second flow past the motor. Combining the CBM+ motor with Franklin’s specifically-engineered Artificial Lift Drives and controls, maximizes performance while extending the longevity of your down-hole equipment.
Franklin Electric 4" CBM+ Submersible Motor Features
- Exclusive Sand Fighter™ Sealing System
- Advanced Power-Dense 24-Slot Stator Maximizes Available Horsepower Per Linear Inch of Motor Length
- Increased Bearing Capacity
- Corrosion-Resistant Construction
- Hardened Stainless Steel Splined Shaft
- Anti-Track, Self Healing Resin System Repairs Minor Shorts
- Hermetically-Sealed Windings
- Water Lubricated Bearings
- Filter Check Valve
- Kingsbury-Type Thrust Bearing Rated for 5-10 HP - 1,500 lbs Downthrust
- Kingsbury-Type Thrust Bearing Rated for 15 HP - 3,500 lbs Downthrust
- Pressure-Equalizing Diaphragm
- Removable Water-Bloc Lead (Sold Separately)
- NEMA Pump Mounting Dimensions
- Reinforced Diaphragm Housing
- Diaphragm Filter Shield
Specifications
Specifications
Franklin Electric 4" CBM+ Submersible Motor Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 15 HP
- VOLTAGE: 3ø, 460/380V
- RPM: 3450
- SERVICE FACTOR: 1.15/1.0
- DOWNWARD THRUST (lbs): 3500 lbs
- MAX AMBIENT TEMPERATURE: 122°F/50°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 12.4
- LEAD: 3-Wire, XPLE
- CONTROL BOX REQUIRED
