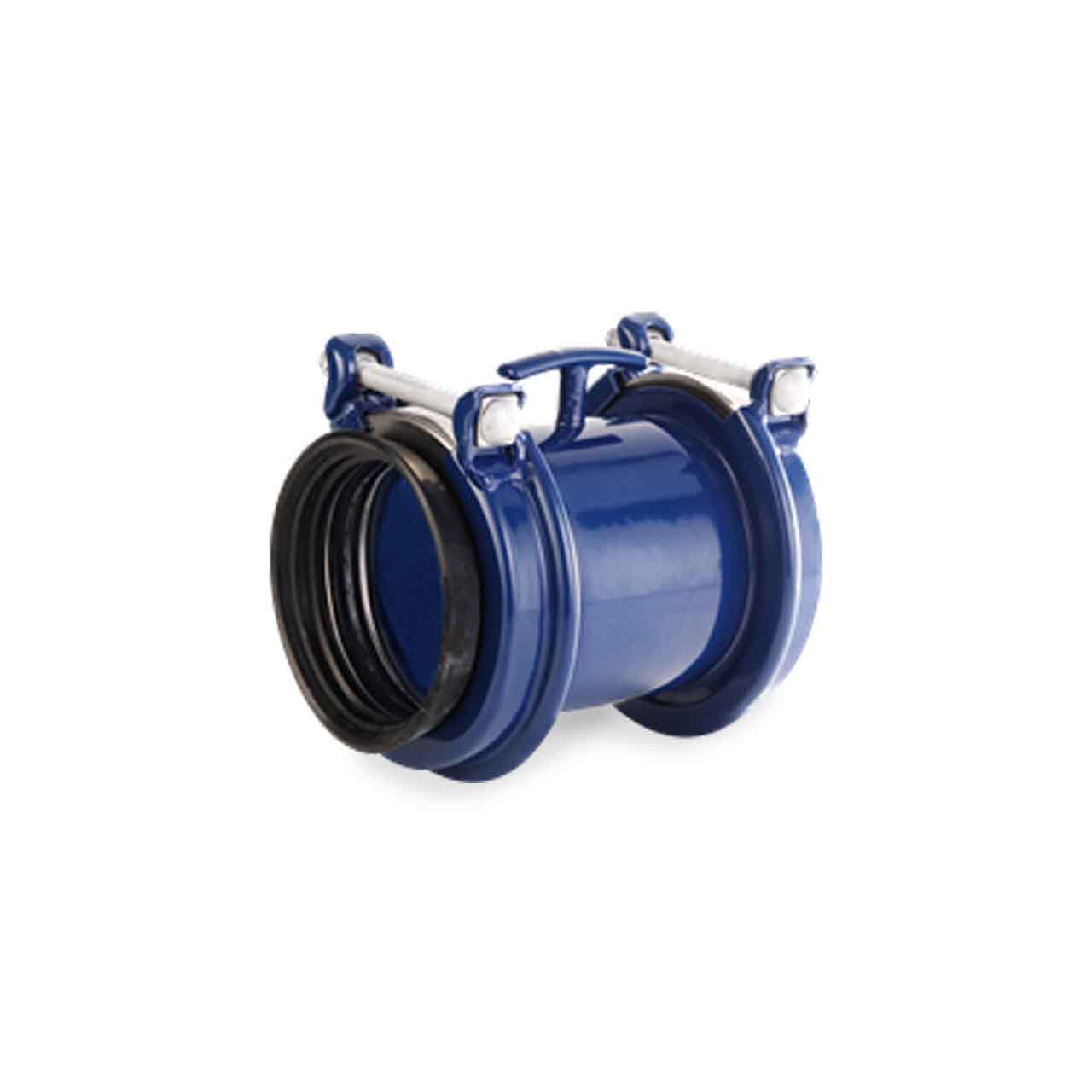

Hymax 2 860-54-0108-16 ND 4.0" EPDM Coupling 4.25-5.63 O.D.

Hymax 2 860-54-0108-16 ND 4.0" EPDM Coupling 4.25-5.63 O.D.

Usually ships within 1 week

SKU : HMX860-54-0108-16

In Stock Quantity:-3

:
Brand : Hymax
$501.68 USD
Shipping calculated at checkout.

Description

HYMAX introduces an innovative new coupling solution - the wide range HYMAX 2. HYMAX 2 coupling featuring a patented flip gasket that can easily flip in or out to accommodate different pip ODs, allowing for faster and more efficient installations. HYMAX 2 has all other features of the original HYMAX: 2 top-facing bolts for faster and safer installation, dynamic pipe deflection that minimizes the risk of future pipe breaks due to temperature changes and ground shifts.

The original game-changing HYMAX, created by Krausz, has been field-proven in millions of installations in the USA. New and Improved HYMAX 2 is a superior product.

Hymax 2 Wide-Range Flip Coupling Features

  • 860-54-0108-16; ND 4.0" EPDM Wide-Range Flip Coupling
  • Advanced Wide-Range Coupling with a Patented Flip Gasket
  • Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
  • Only 2-4 Top Facing Bolts, For Faster and Safer Installation
  • Ready-to-Use Design to Eliminate Extensive Preparatory Under-Pipe Digging
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Suitable for All Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
  • One Product Can Connect Pipes of Two Different Materials
  • Based on the Game-Changing HYMAX that has Been Field-Proven in Millions of Installations in the US
  • Product Performance, OD Range and Pressures are Identical to Those of the Original HYMAX
  • Lifting T-Handle Exists in Sizes 3" - 12" ONLY

Specifications

Hymax 2 Wide-Range Flip Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
  • SIZE: 4.0" Nominal Diameter Pipe Size
  • PIPE O.D. RANGE: 4.25 - 5.63
  • WORKING PRESSURE: 260 PSI
  • RATED PRESSURE: 390 PSI
  • TORQUE: 75 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A53 Grade A Steel
    • GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304L Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax 2 Wide-Range Flip Coupling Product Resources


Download HYMAX 2 Wide-Range Coupling Brochure

Download HYMAX 2 Wide-Range Coupling Specifications

Download HYMAX 2 Wide-Range Coupling Installation Instructions
