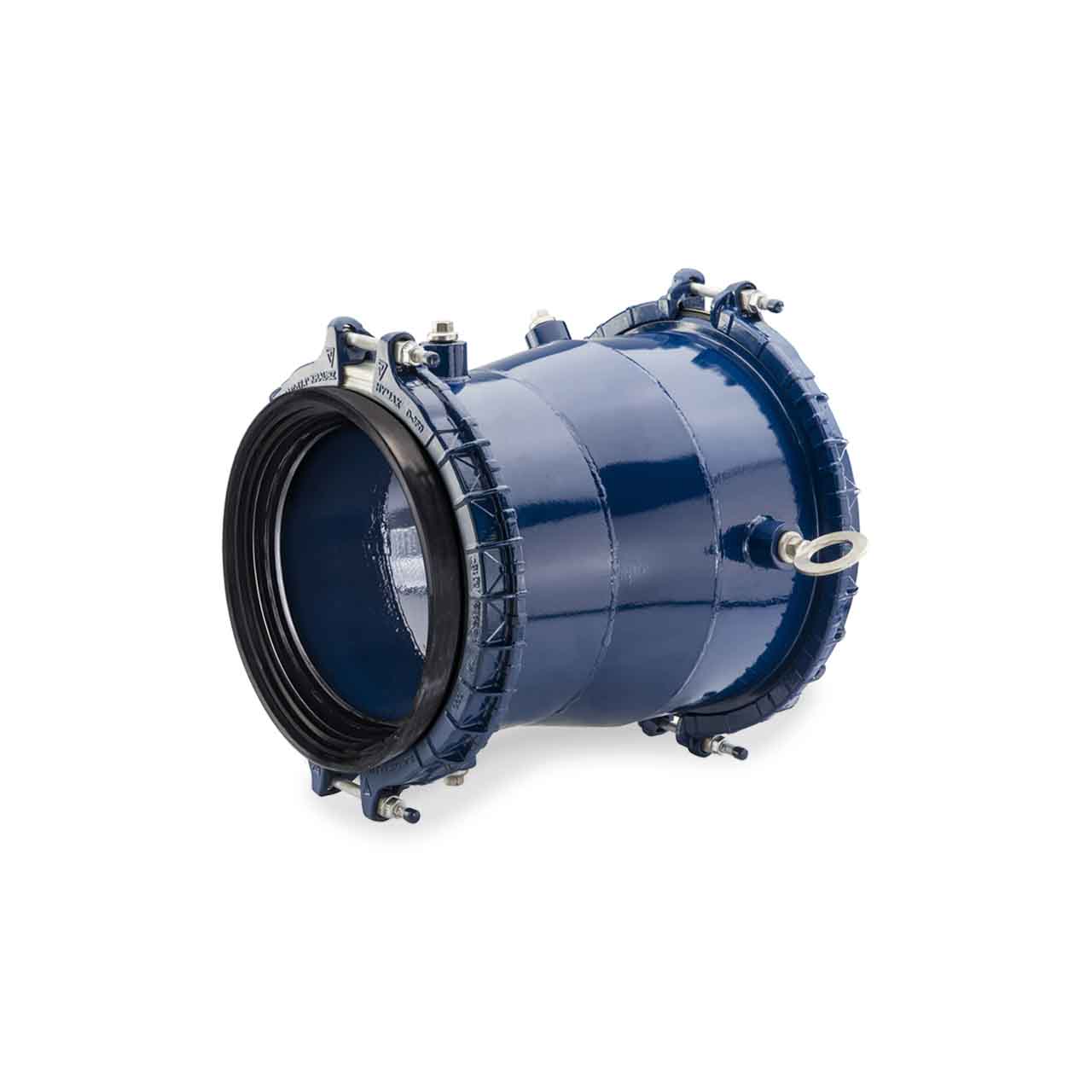

Hymax 861560434048816 16" x 18" EPDM Large Diameter Reducer

Hymax 861560434048816 16" x 18" EPDM Large Diameter Reducer

Usually ships within 1 week

SKU : HMX861560434048816

In Stock Quantity:0

:
Brand : Hymax
$6,806.26 USD
Shipping calculated at checkout.

Description

The HYMAX Large Diameter (HLD 2) Reducer is the next generation of wide-range couplings. HLD2 feature a complete line of products in sizes 14”-60” with only 4 top-facing bolts and flip-gasket for faster, safer and more efficient installations.

The HLD2 Flip Gasket offers a new level of innovation that makes installers’ jobs easier and safer:

The Large Diameter’s patented flip gasket can be easily flipped in or out to accommodate different pipe ODs between 14 to 60 inches (14″-24″ standard and 26″-60″ MTO with one-layer gasket).

Hymax Large Diameter Reducer Features

  • 861560434048816; 16" X 18" EPDM Reducer
  • Using the Game-Changing Hymax Technology, Proven in Over 1M Installation in the US
  • Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
  • Patented No-Tear Flip Gasket for Easy Installation (in sizes 14"-24")
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage

Specifications

Hymax Large Diameter Reducer Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
  • PIPE SIZE: 16" x 18" Nominal Diameter Pipe Size
  • OVERALL RANGE OUTLET 1: 17.10 - 19.20
  • OVERALL RANGE OUTLET 2: 19.20 - 21.30
  • WORKING PRESSURE: 260 PSI
  • RATED PRESSURE: 390 PSI
  • TORQUE SIDE 1: 150 FT-LBS
  • TORQUE SIDE 2: 150 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A283/A283M Grade C Steel
    • GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Large Diameter Reducer Product Resources


Download HYMAX Large Diameter Coupling Brochure

Download HYMAX Large Reducer Specifications

Download HYMAX Large Reducer Installation Instructions
