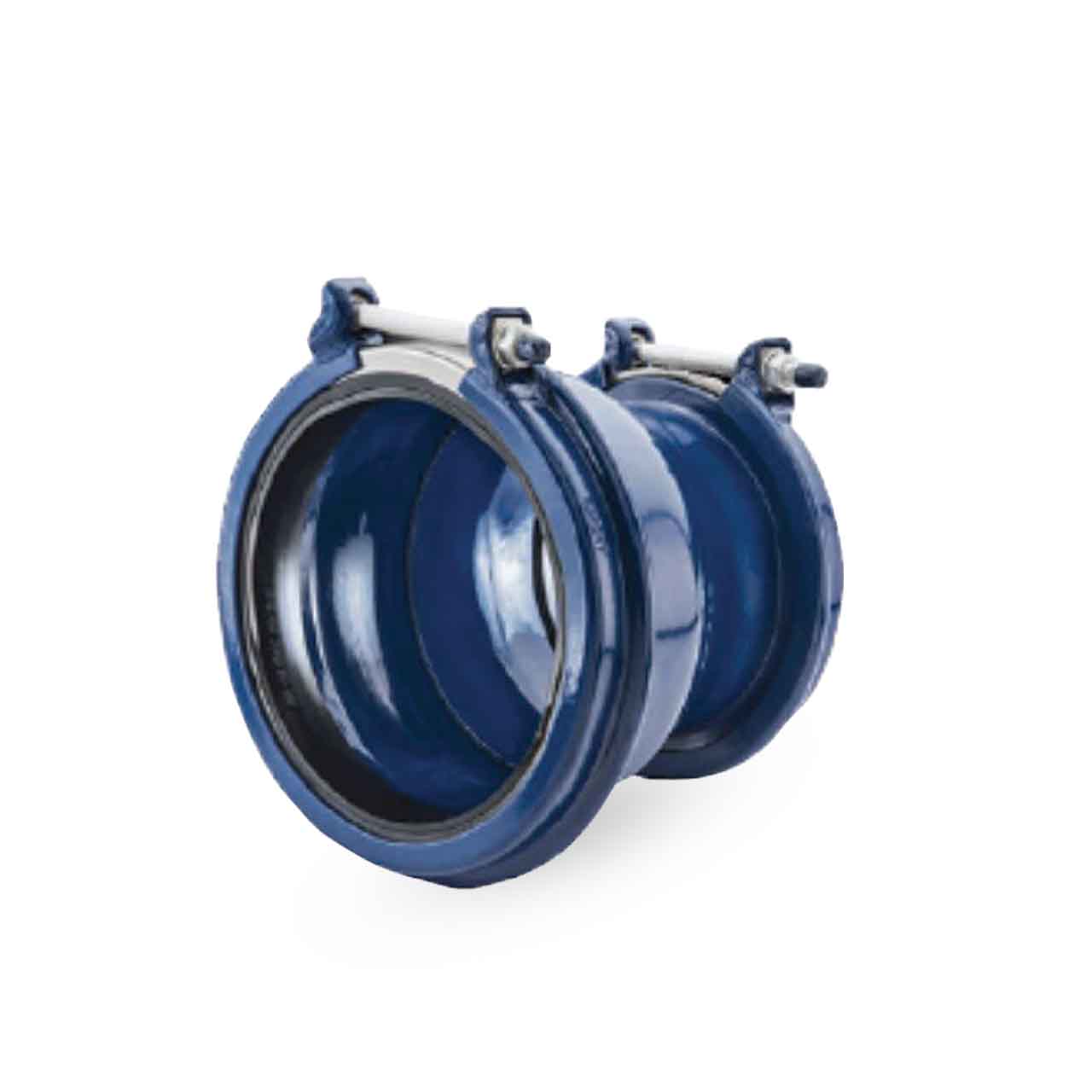

Hymax 861570278033416 10" x 12" NBR Reducer

Hymax 861570278033416 10" x 12" NBR Reducer

Usually ships within 1 week

SKU : HMX861570278033416

In Stock Quantity:0

:
Brand : Hymax
$1,605.89 USD
Shipping calculated at checkout.

Description

Wide-Range HYMAX Reducer joins different nominal sizes and materials. Each side has a tolerance of up to 2.1" in joining pipes made of a variety of materials.

Hymax Reducer Features

  • 861570278033416; 10" X 12" NBR Reducer
  • Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
  • Joins Pipes of Different Sizes
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • One Product can Connect Pipes of Two Different Materials

Specifications

Hymax Reducer Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
  • PIPE SIZE: 10" x 12" Nominal Diameter Pipe Size
  • OVERALL RANGE OUTLET 1: 10.96 - 12.26
  • OVERALL RANGE OUTLET 2: 13.15 - 14.41
  • WORKING PRESSURE: 260 PSI
  • RATED PRESSURE: 390 PSI
  • TORQUE SIDE 1: 65 FT-LBS
  • TORQUE SIDE 2: 65 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A53 Grade A Steel
    • GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Reducer Product Resources


Download HYMAX Family Brochure

Download HYMAX Reducer Specifications

Download HYMAX Reducer Installation Instructions

Download HYMAX Reducer Appendix to Installation Instructions
