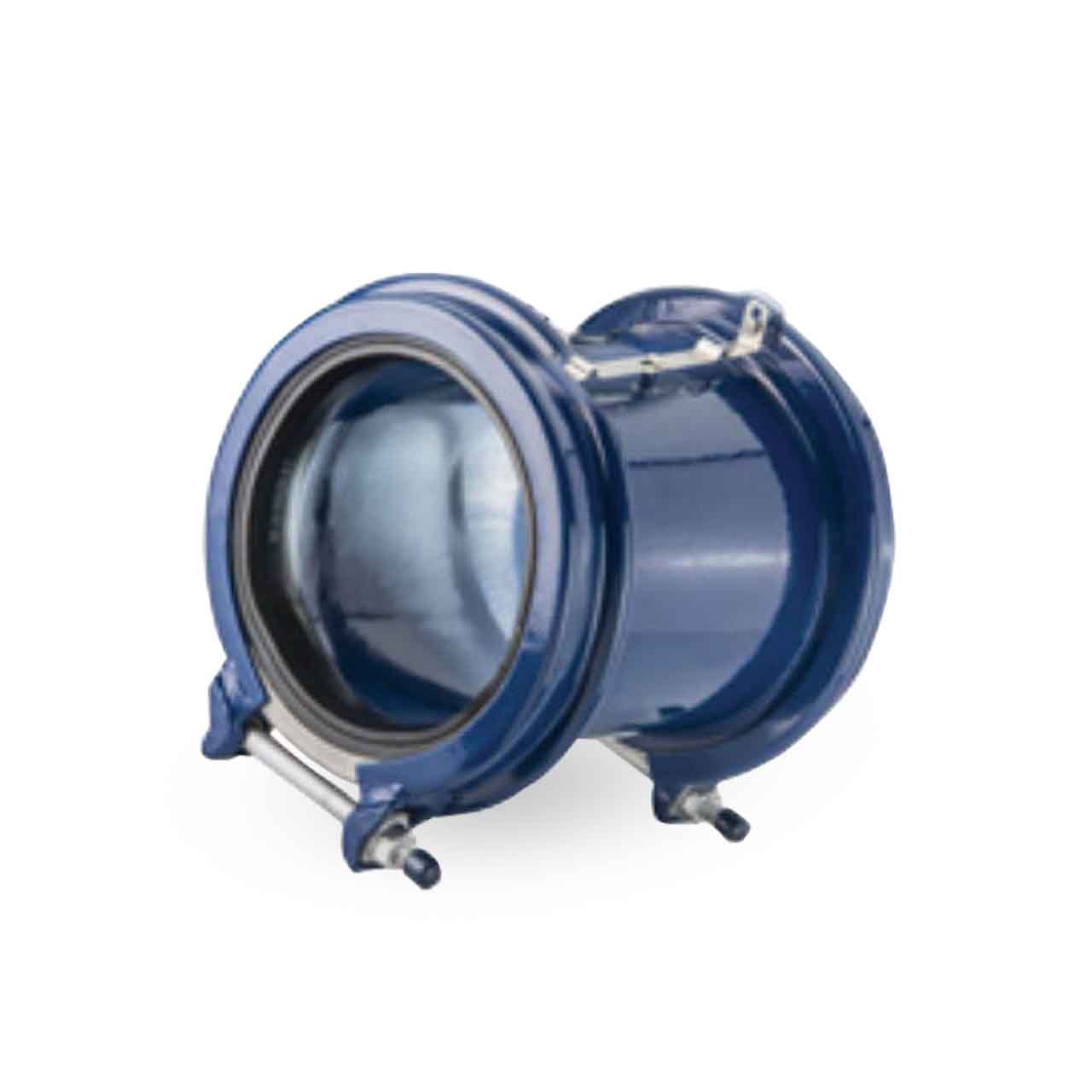

Hymax 888-57-0163-16 ND 6.0" NBR Cathodic Protection Coupling 6.42-7.68 O.D.

Hymax 888-57-0163-16 ND 6.0" NBR Cathodic Protection Coupling 6.42-7.68 O.D.

Usually ships within 1 week

SKU : HMX888-57-0163-16

In Stock Quantity:0

:
Brand : Hymax
$922.42 USD
Shipping calculated at checkout.

Description

Wide-Range HYMAX Coupling's with anti-corrosion cathodic protection feature connects two pipes of the same or different OD circumferences and materials.

Hymax Cathodic Coupling Features

  • 888-57-0163-16; 6.0" NBR Cathodic Protection Coupling
  • Suitable for all Metal Pipes
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • One Product can Connect Pipes of Two Different Materials
  • Available with EPDM or NBR Gasket

Specifications

Hymax Cathodic Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61, and NSF 372
  • SIZE: 6.0" Nominal Pipe Size
  • PIPE O.D. RANGE: 6.42 - 7.68
  • WORKING PRESSURE: 260 PSI
  • RATED PRESSURE: 390 PSI
  • TORQUE: 65 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A53 Grade A Steel
    • GASKET: NBR Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
    • PROTECTION PARTS CATHODIC: AISI 304 Stainless Steel


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Cathodic Coupling Product Resources


Download HYMAX Family Brochure

Download HYMAX Cathodic Coupling Specifications

Download HYMAX Cathodic Coupling Installation Instructions
