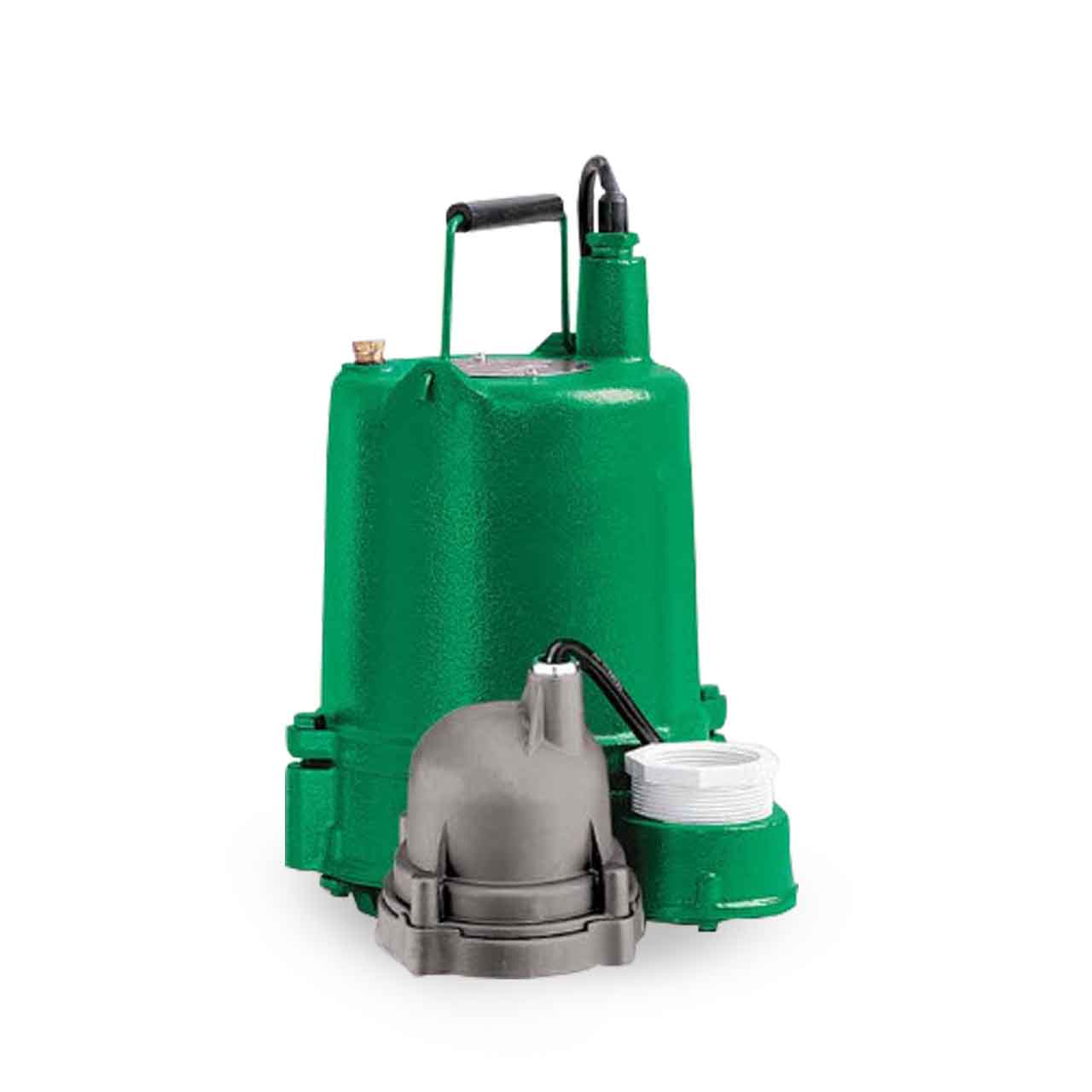

Myers MEOSP50BR Submersible Effluent Pump Description

The Myers MEOSP50BR Submersible Pump is specifically designed to meet the demands of residential sump, elevator pit, septic tank effluent, industrial circulator and transfer tank applications.

The 1-1/2 inch NPT discharge pump is available with a powerful 1/2 horsepower motor, and can handle capacities up to 60 gallons per minute and heads to 25 feet.

The pump’s nonclogging bronze impeller, which is threaded to a stainless steel shaft, provides long life even in demanding applications, and is capable of handling up to 5/8 inch spherical solids and lint. The MEOSP50BR’s oil-filled motor provides superior cooling characteristics, allowing the motor to run cool and quiet for years. This oil-filled design also provides permanent lubrication of the shaft bearings, minimizing maintenance and extending the service life of the pump. In addition, to protect against overheating, the motor windings contain an automatic reset thermal overload. Water level is controlled by a proven diaphragm-type pressure switch, which is sealed in a watertight housing. Double-diaphragm construction provides added protection in preventing liquid or foreign matter from entering switch.

Myers MEOSP50BR Submersible Effluent Pump Typical Application

• Continuous Duty Application
• Septic Tank Effluent
• Flood Control Units
• Industrial Circulators
• Elevator Pits
• Basement Sumps

Myers MEOSP50BR Submersible Effluent Pump Superior Features

• Water-Resistant Power Cord with Molded Plug is Available in 10 or 20 foot Lengths and is Easy Field Serviceable.
• Upper and Lower Ball Bearings Support Motor Shaft, Minimizing the Effects of Impeller Thrust Loads. This Design Results in Minimum Friction and Perfect Alignment of Rotor for Longer Service from Pump.
• Oil-Filled Motor Provides Superior Cooling and Permanent Lubrication for Bearings, Minimizing Maintenance and Extending Service Life.
• Powerful 1/2 HP Motor Runs Cool and Quiet for Long Life. Motor Windings Contain Automatic-Reset, Thermal Overload Protection.
• Mechanical Shaft Seal is Carbon- and Ceramic-Faced for Long Leakproof Life.
• Heavy-Duty, Cast Iron Construction Provides Long Life in Rugged Applications.
• Discharge is 1.5" NPT.
• The Impeller which is Threaded to a Stainless Steel Shaft, Provides Long Life in Corrosive Applications and is Capable of Handling up to 5/8" Spherical Solids and Lint.
• Bottom-Suction Design Alleviates Buildup of Debris, Providing Optimum Pump Performance and Reduced Maintenance.
• Automatic Pump Operation – “Piggyback” Diaphragm Switch Included

Myers MEOSP50BRA1 Submersible Effluent Pump Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 25'
• MAXIMUM CAPACITY: up to 60 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 5/8"
• CORD LENGTH: 20' Power Cord
• VOLTAGE: 1ø, 115V
• FULL LOAD AMPS: 9.5
• MOTOR: Split Phase with Overload Protection
• IMPELLER CONSTRUCTION: Open Recessed Vortex Bronze

Myers MEOSP50 Submersible Effluent Pump Performance Curve
