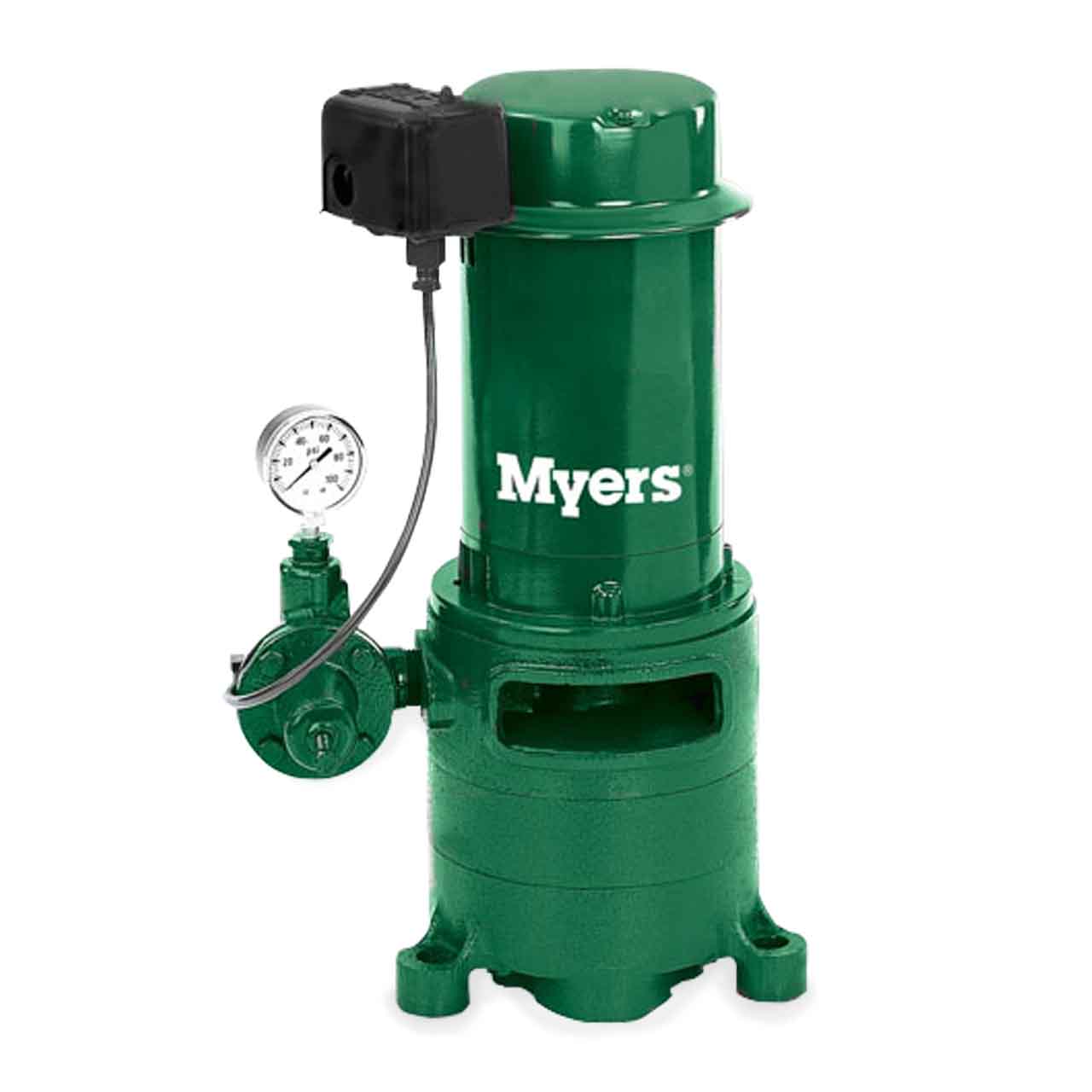

Myers MVPH Series Vertical Multi-Stage Deep Well Jet Pump Description

The MVPH Series Vertical Multi-Stage Deep Well Jet Pumps are the industry standard deep well jet pumps for over-the-well "bolt-on" installations.

The MVPH Series Jet Pumps include the pre-plumbed external automatic regulator, pressure gauge, pressure switch and a complete line of casing adapters for 4" double pipe, 2" or 3" single pipe jet packages.

Myers MVPH Series Vertical Multi-Stage Deep Well Jet Pump Typical Applications

• Supply Water Systems and Sprinkling Systems... for Homes, Farms and Cottages.

Myers MVPH Series Vertical Multi-Stage Deep Well Jet Pump Features

• Automatic Pressure Regulator - Faster-Acting and Quieter, Design Eliminates "Hunting" for Correct Drive Pressure. New Improved Stem and Guide are Precisely Molded to Assure Efficient, Trouble-Free Performance on all Deep Wells.
• Quality Construction - Precision-Machined, Close-Grained Cast Iron Pump Body and Base are Specially Treated to Resist Corrosion.
• Noryl Impellers - Precision Molded for Perfect Balance and Ultra-Smooth for Highest Performance and Efficiency.
• Pressure Switch - High Quality. Differential and Cut-In/Cut-Out Pressure Settings are Adjustable.
• Motor Windings - Superior Insulation Materials Protect Against Excessive Moisture and Contaminants to Ensure Prolonged Motor Life.
• Mechanical Shaft Seal - Precision Lapped and Highly Polished Carbon-Ceramic, Stainless Steel Construction. Internal Design Guarantees Continuous Water Lubrication for Maximum Protection.
• Dustproof Cover - All electrical Components are Protected from Dirt, Dust and Insects by a Dustproof Canopy. Ventilating Air Cannot Contaminate Vital Switching Components. This Eliminates the Most Common Cause of Motor Failure.
• Balanced Rotor - Rotor is Die Cast Under High Pressures for Uniform Performance and Greater Efficiency; Dynamically Balanced.
• Heavy-Duty Ball Bearings - Permanently lubricated Sealed Bearings are Extensively Tested to Ensure Extended Life and Smooth, Quiet Operation.
• Pump and Motor Shaft - One Piece Threaded Shaft for Positive Impeller Drive and Alignment. Shaft is Stainless Steel for Maximum Corrosion Resistance.

Myers MVPH-200 Vertical Multi-Stage Deep Well Jet Pump Specifications

• VOLTAGE: 115/230V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 19.2/9.6
• DISCHARGE PIPE SIZE: 1.0" NPT
• SUCTION SIZE: 1-1/4" NPT
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM WATER TEMPERATURE: 140°F (60°C)


Myers MVPH Series Vertical Multi-Stage Deep Well Jet Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MVPH Series Vertical Multi-Stage Deep Well Jet Pump Product Resources

Download Myers MVPH Series Specification Data

Download Myers MVPH Series Installation & Service Manual

Download Myers MVPH Series Pressure Switch Adjustment
