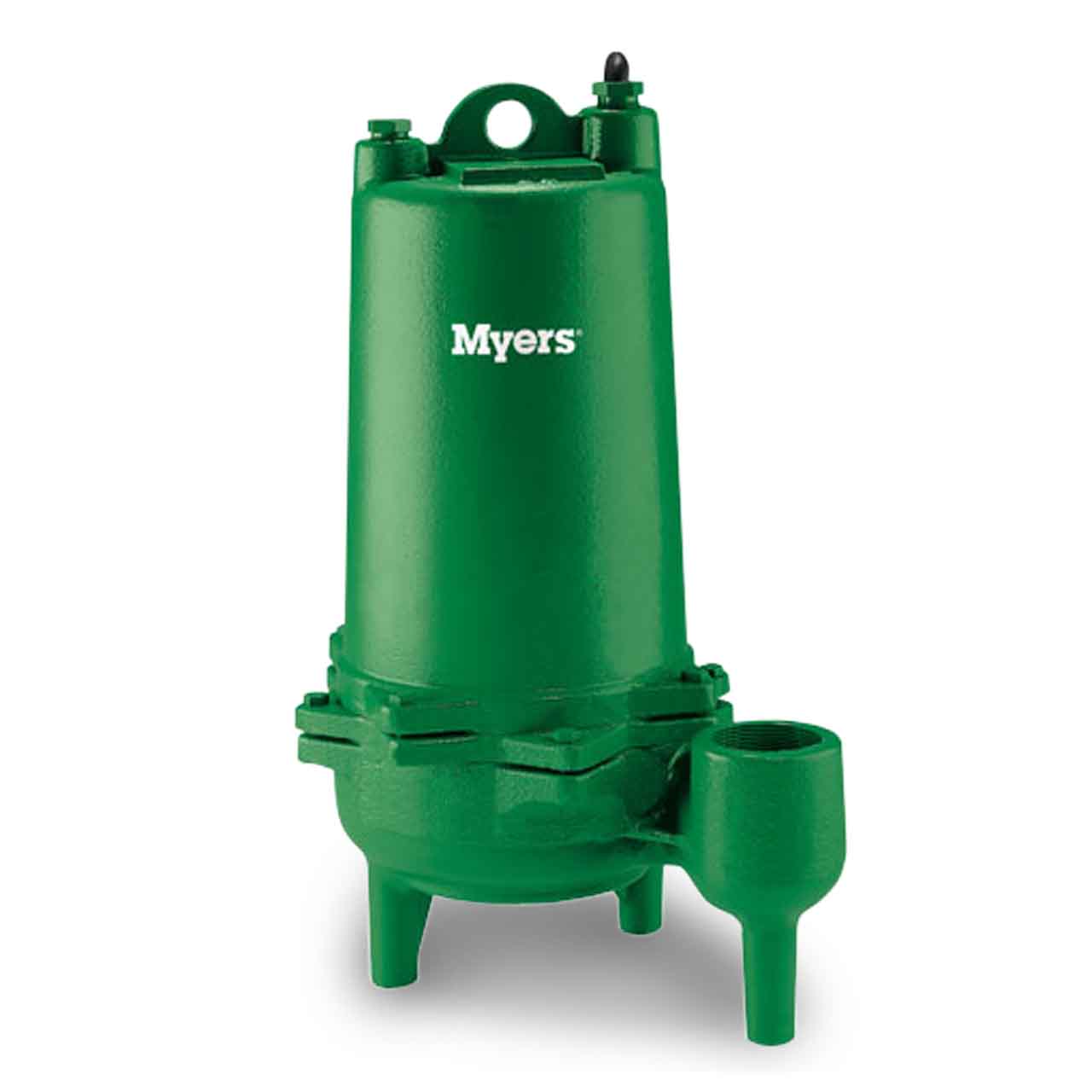

Myers MWH50-43 Sewage Pump 0.5 HP 460V 3 PH Manual 20' Cord

Myers MWH50-43 Sewage Pump 0.5 HP 460V 3 PH Manual 20' Cord

Usually ships within 2 weeks

SKU : MYRMWH50-43

In Stock Quantity:0

:
Brand : Myers
$2,087.19 USD
Shipping calculated at checkout.

Description


Myers MW Series Sewage Pump Description

The Myers MW Series sewage pumps are designed for light commercial and residential raw sewage applications. The enclosed two-vane impeller provides high-efficiency pumping and will easily handle stringy, trash 2" solids without clogging. The heavy-duty cast iron construction ensures years of service in demanding applications. Available in single and double seal models; cast iron and optional bronze impeller models.

Myers MW Series Sewage Pump Typical Applications

Sewage, High-Capacity Sump and Effluent

Myers MW Series Sewage Pump Features

  • Cast Iron Tough: All Cast-Iron Housing and Volute Case Stand Tough Against Extremely Corrosive Environments.
  • No Jamming: Enclosed Impeller Design Eliminates Jamming Between Impeller and Volute - Cast Iron or Bronze (optional).
  • Powerful Starts: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
  • Motor Protection: Rugged, Oil-Filled Motor for Bearing Lubrication and Maximum Heat Dissipation.
  • Guards Against Leaks: Optional Leak Probe Senses Water Leakage Past Seal (dual seal motors only)
  • Prevents Overheating: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature (single phase only)
  • Easy Service: Remove Only Four Screws for Motor Access; Volute Seal Ring is Replaceable.

Specifications

Myers MWH50-43 Sewage Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 2.3
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 3450
  • MAXIMUM HEAD: up to 38'
  • MAXIMUM CAPACITY: up to 125 GPM
  • MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Ductile Iron, Enclosed
  • CORD LENGTH: 20'
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers MW Series Sewage Pump Performance Data



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers MW Series Sewage Pump Product Resources


Download Myers MW Series Sewage Pump Specification Data

Download Myers MW Series Sewage Pump Installation & Service Manual
