Myers VRS10A-11 VR1 Residential Submersible Grinder Pump 1.0 HP 115V 1 PH Automatic 20' Cord

Myers VRS10A-11 VR1 Residential Submersible Grinder Pump 1.0 HP 115V 1 PH Automatic 20' Cord

Usually ships within 2 weeks

SKU : MYRVRS10A11

In Stock Quantity:0

:
Brand : Myers
$2,480.00 USD
Shipping calculated at checkout.

Description


Myers VRS10 Residential Submersible Grinder Pump Description

The MYERS VR1 Grinders feature a patent pending axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze.

The VR1 is an ideal upgrade for residential sewage pumps struggling with trash and debris found in residential wastewater.

Myers VRS10 Residential Submersible Grinder Features

  • Wide Angle Float Switch
    • Piggy-Back Cord for Easy Maintenance
  • Cable Entry System
    • Cable Jacket Sealed by Compression Fitting and Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress
  • Oiled-Filled Motor
    • Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life
    • High Torque Start/Run Capacitor for Single Phase Motors for Assured Starting Under Heavy Loads
    • Internal Capacitors Eliminate Need for Control Panel
  • Integrated Heat Sensor
    • Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled
  • Shafts and Fasteners
    • Stainless Steel for Maximum Corrosion Resistance and Long Life
  • Shaft Seals
    • Oil Lubricated Single Carbon and Ceramic Faced Seal Provides Motor Protection
  • Impeller
    • Semi-Open Impeller Handles Ground Slurry without Clogging or Binding
    • Pump-Out Vanes Help Keep Trash from Seal and Reduces Pressure at Seal Face for Longer Life

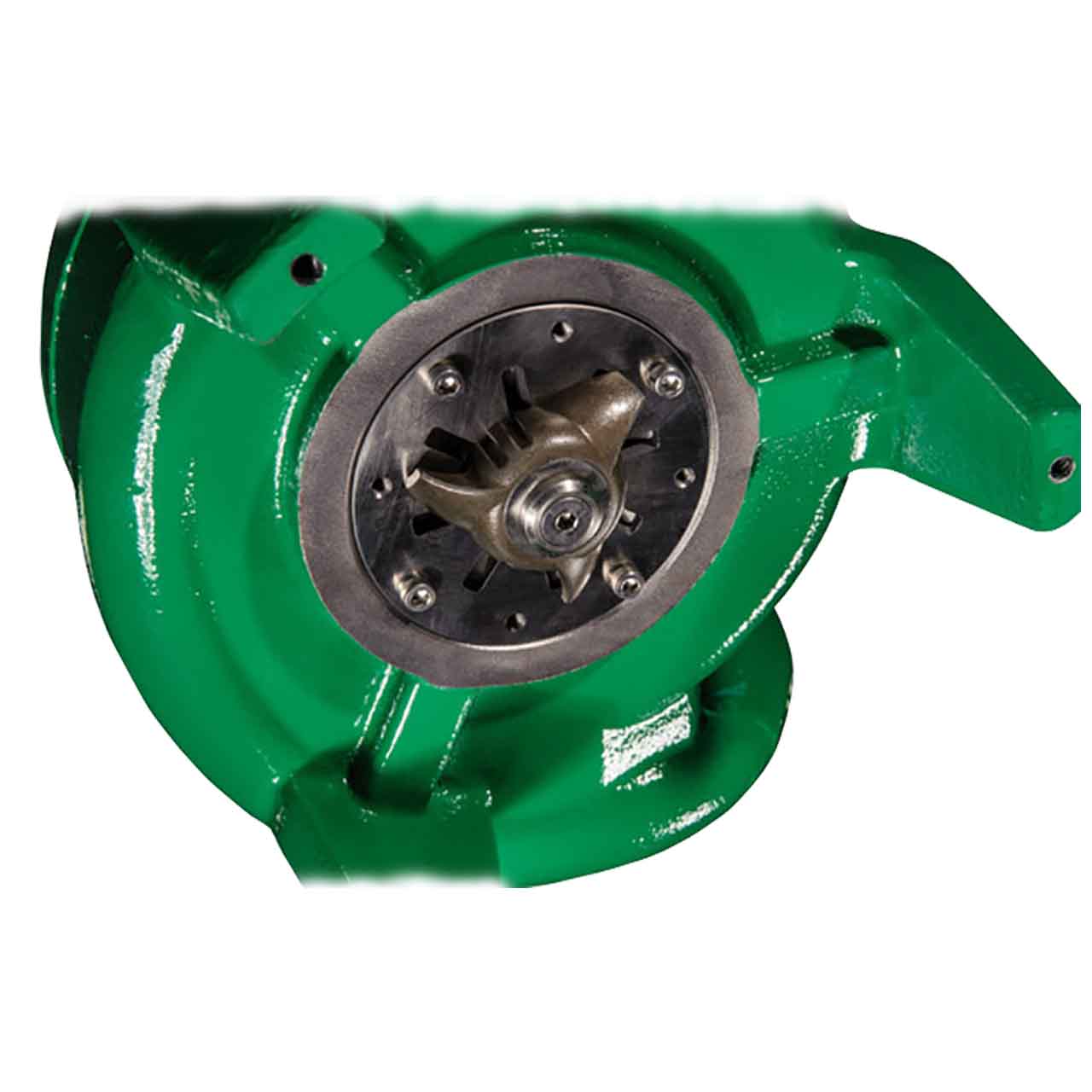

  • Axial Cutter System
    • Easily Slices Through Solids and Trash Commonly Found in Domestic Wastewater without Roping or Clogging
    • Constructed of 440 SST Hardened to 57-60Rc for Long Life
    • Easily Replaceable without Dismantling Pump
  • Volute Case
    • 2" Vertical Discharge

Specifications

Myers VRS10A-11 Residential Submersible Grinder Specifications

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 1.0 HP
  • AMP DRAW (full load): 13
  • MOTOR TYPE: Capacitor Start/ Capacitor Run w/ Overload Protection
  • RPM: 3450
  • MAXIMUM HEAD: 60'
  • MAXIMUM CAPACITY: 52 GPM
  • SWITCH TYPE: Wide-Angle Float Switch w/ Piggyback Plug
  • MINIMUM SUMP DIAMETER: Simplex: 24"
  • DISCHARGE PIPE SIZE: 2.0"
  • IMPELLER TYPE: Thermoplastic, Semi-Open
  • CORD LENGTH: 20' TYPE: SJOOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60˚C)

Myers VRS10 Residential Grinder Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers VRS10 Residential Submersible Grinder Product Resources


Download Myers VRS10 Residential Submersible Grinder Brochure

Download Myers VRS10 Residential Submersible Grinder Specification Data

Download Myers VRS10 Residential Submersible Grinder Installation Manual
