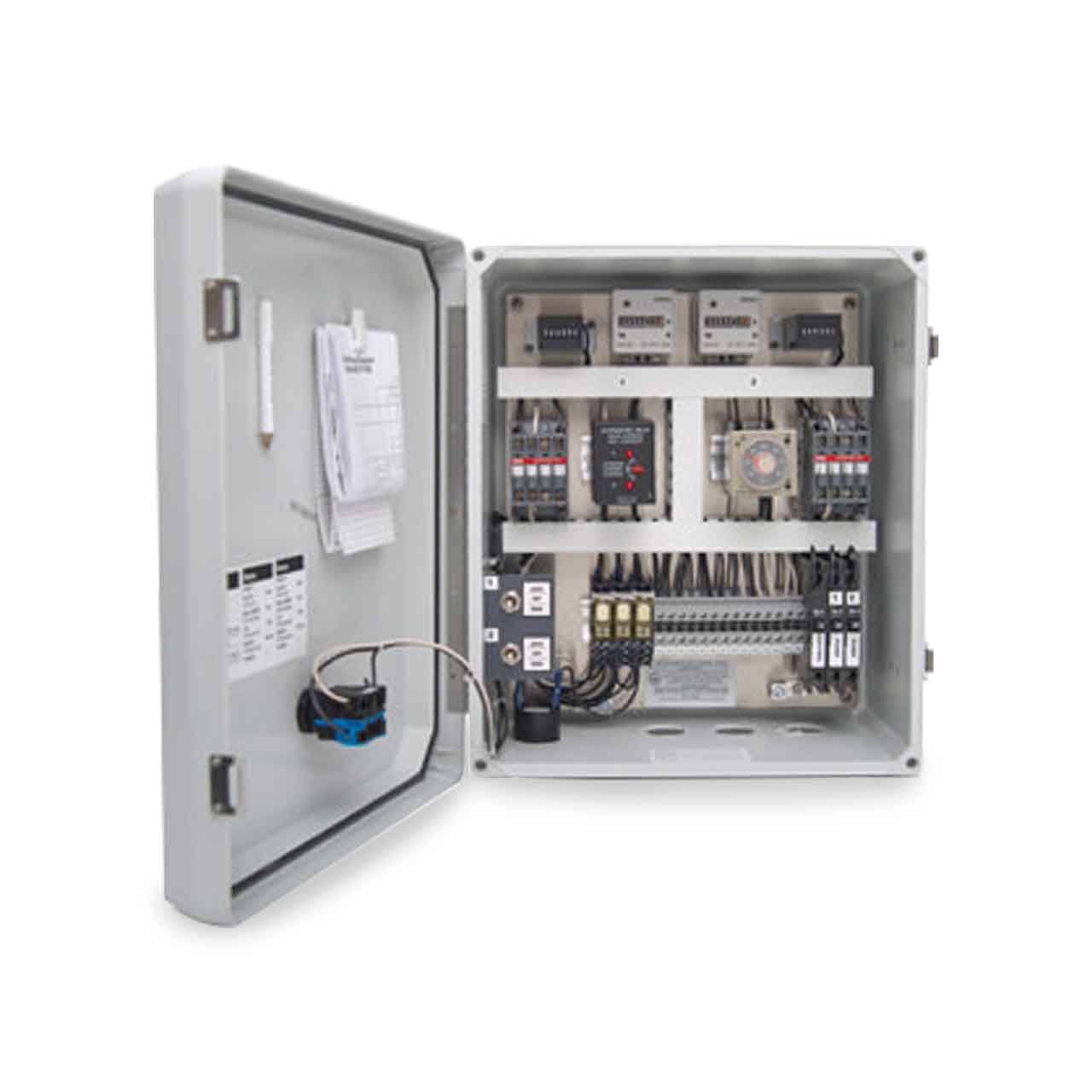

Orenco DAX1ROETMCT Duplex Control Panel 120V 1PH RO ETM CT

Orenco DAX1ROETMCT Duplex Control Panel 120V 1PH RO ETM CT

Usually ships within 1 week

SKU : ONCDAX1ROETMCT

In Stock Quantity:0

:
Brand : Orenco Systems, Inc.
$1,476.26 USD
Shipping calculated at checkout.

Description

Orenco Duplex Control Panels are specifically engineered for pressure sewer (STEP) systems and onsite septic treatment systems that require the use of two alternating pumps. Standard features include circuit breakers, an automatic/manual/off motor control toggle for each pump, an audio/visual high level alarm, reset, and a duplex alternator. Orenco Panels are designed for use with mechanical and/or mercury float switches. Listed per UL 508; a UL-Canada listing is available.

Orenco DAX Series Duplex Control Panel Typical Application

  • Dual Pumps, Alarms, and Other Equipment as Specified in Pressure Sewers and Onsite Septic Systems.
  • Sewage Lift Stations
  • Can be Configured for Recirculating Systems see Document EDW-FA-DAX-5 Below

Specifications

Orenco DAX Series Duplex Control Panel Technical Details

  • Panel Rating: 120 VAC, 14 FLA, 3/4 HP
  • Hand-Off-Auto Switch
  • 10A Control Breaker (Requires 120 VAC control power)
  • 2 - 20A 1 Pole Pump Breakers
  • See Related Products Tab for Typical Float Switch Configurations
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Duplex Alternator: 120 VAC, Cross Wired Style for Independent Lag Pump Function. Selector Switch for Locking One Pump into Lead Position
  • Enclosure: 15.5"H x 13.3"W x 6.7"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge
  • Additional Features
    • RO - Redundant Off/Low Level Alarm
    • ETM - Elapsed Time Meter - Records Pump Run Time
    • CT - Cycle Counter - Records Pump Start Events

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco DAX Series Duplex Control Panel Product Resources


Brochure
Orenco DAX Series Duplex Control Panel Technical Data Sheet: NTD-CP-DAX-1

Orenco DAX Series Duplex Control Panel Submittal Data Sheet: ESU-CP-DAX-1

Wiring Diagram
Orenco DAX1RO Series Duplex Control Panel Wiring Diagram: EDW-WD-DAX-2

Float Arrangement Diagrams
Orenco DAX Series Duplex Control Panel Float Arrangement Diagram: EDW-FA-DAX-2

Orenco DAX Series Duplex Control Panel Float Arrangement Diagram: EDW-FA-DAX-5

Splice Box Wiring Diagrams
Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-28

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-29

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-30

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-31

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-32

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-66

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-67

Orenco DAX Series Duplex Control Panel Splice Box Wiring Diagram: EDW-SB-DAX-68
