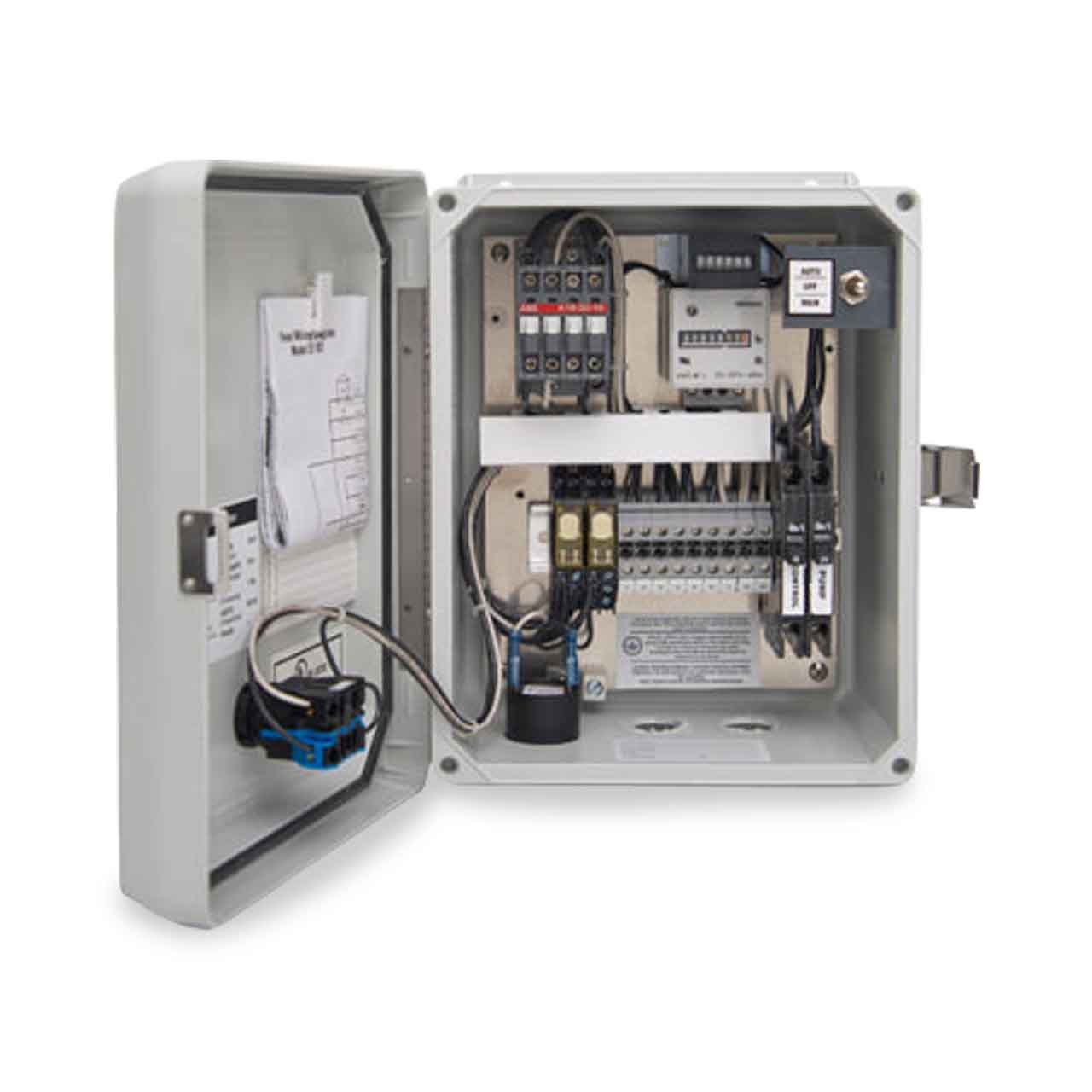

Orenco S1ETMCT Simplex Control Panel 120V 1PH ETM CT

Orenco S1ETMCT Simplex Control Panel 120V 1PH ETM CT

Ships within 24 hours

SKU : ONCS1ETMCT

In Stock Quantity:3

:
Brand : Orenco Systems, Inc.
$758.17 USD
Shipping calculated at checkout.

Description

Simplex control panels can be used for pressure sewer (STEP) systems, onsite treatment systems, and pump control into conventional gravity or pressurized drainfields. “S” series pump control panels are a popular choice for a simplex pump and alarm system. These panels include a motor contactor, which increases system life by reducing the load requirements on the float switches. “S” Series panels also allow options such as a programmable timer or use of larger horsepower pumps.

Orenco S Series Simplex Control Panel Typical Application

  • Residential and Light Commercial Sump, Septic Tank Effluent, and Raw Sewage Pumping Applications.
  • Additional Features:
    • ETM - Elapsed Time Meter - Records Pump Run Time
    • CT - Cycle Counter - Records Pump Start Events

Specifications

Orenco S Series Simplex Control Panel Specifications

  • Panel Ratings: 120 VAC, 14 FLA, 3/4 HP
  • Hand-Off-Auto Switch
  • 10A Control Breaker (Requires 120 VAC control power)
  • 20A 1 Pole Pump Breaker
  • See Related Products Tab for Typical Float Switch Configurations
  • Audible Alarm: 95 dB at 24", Warble Tone Sound
  • Visual Alarm: 7/8" Diameter Red Lens, "Push-To-Silence", LED Light
  • Enclosure: 11.5"H x 9.5"W x 5.4"D, NEMA 4X, UV-Resistant Fiberglass, Stainless Steel Latch and Hinge




WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Orenco S Series Simplex Control Panel Product Resources


Brochure
Orenco S Series Simplex Control Panel Product Sheet: APS-CP-KIT-2

Orenco S Series Simplex Control Panel Technical Data Sheet: NTD-CP-S-1

Wiring Diagram
Orenco S1 Series Simplex Control Panel Wiring Diagram: EDW-WD-S-1

Float Arrangement Diagram
Orenco S1 Series Simplex Control Panel Float Arrangement Diagram: EDW-FA-S-1

Splice Box Wiring Diagrams
Orenco S1 Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-1

Orenco S1 Series Simplex Control Panel Splice Box Wiring Diagram: EDW-SB-S-2
