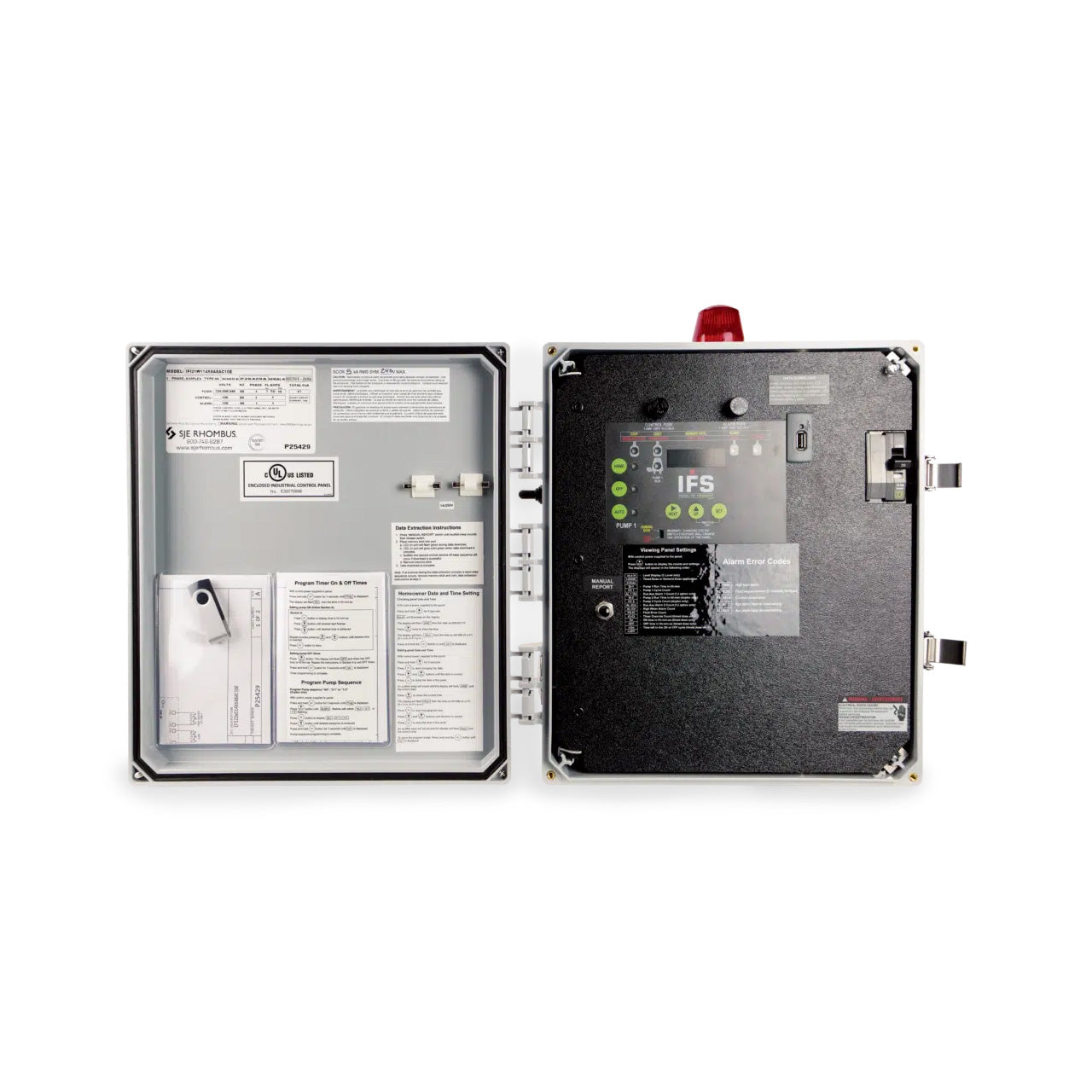

IFS In-Site Single Phase Simplex Control Panel Description

Demand Dose or Timed Dose, Float or C-Level™ Sensor Controlled System for Pump Control, System Monitoring, Event Logging and Reporting

The IFS In-Site® Simplex control panel utilizes an innovative circuit board design to control one 129/208/240V single phase pump in water and sewage applications. IFS panels feature an easy-to-use touch pad on inner door for programming and system monitoring. Quick retrieval of all system events can be done by downloading panel information onto a USB flash drive. The panel configuration can be easily converted in the field to either a timed dose or demand dose. Available with the EZconnex® float system.

Monitor system events including pump run times, pump cycles, alarm conditions, power outages, service calls and more! Quick convenient reports make diagnosing system conditions easy! Plug the flash drive into the USB port located on the inner door of the IFS In-Site® panel to download system events which occurred. No computer is needed at the site! Use the flash drive (included with the panel) with any computer to download system information and reports. The pre-loaded software on the flash drive formulates system data for you, creating reports quickly in an easy-to-read format so system conditions can be easily identified and corrected. In addition to monitoring system events, the IFS In-Site® panel logs any service calls and changes made to system settings, which helps protect service providers.

The panel can utilize the C-Level™ sensor for continuous level monitoring. It senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

SJE-Rhombus Model IFS Single Phase Simplex Panel Features

Touch Pad Features:
• Level Status Indicators
• Hand/Off/Automatic (HOA) Buttons
• Pump Run Indicators
• LED Display Shows System Information (see below)
• Next Push Button
• Up and Set Push Buttons
LED Display Features:
• Mode
• Pump Elapsed Time (hh:mm)
• Events (cycles)
• Alarm Counter
• Float Error Counter
• Timed Dose Override Counter (TD only)
• On/Off Times (TD only)
• Sequence On/Off Times (TD only)
• Level in Inches or Centimeters (C-Level™ sensor only)
Panel Features:
• NEMA 4X Enclosure
• Red Alarm Beacon Provides 360° Visual Check of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Alarm Horn Provide Audio Warning of Alarm Condition
• Circuit Breaker (optional) Provides Pump Disconnect and Branch Circuit Protection
• Power Relay Controls Pump by Switching Electrical Lines; Definite Purpose Contactor Used when Pump FLA is Above 15
• Float Connection Terminal Block
• Incoming Control/Alarm Terminal Block
• Control Power Indicator/Fuse
• Alarm Power Indicator/Fuse
• Ground Lug
• Incoming Pump Power Connections
• RF Filter
• Power Supply
• USB Port
• Manuals Report Switch
• Five-Year Limited Warranty on Panel
• One-Year Limited Warranty on C-Level™ Sensor
• UL/cUL Listed

SJE-Rhombus Model IFS Single Phase Simplex Panel Components

TOUCH PAD FEATURES:
1. Level Status Indicators Illuminate when Floats or Set Points are Activated; Alarm will Activate if a Float Operates out of Sequence.
2. HOA (Hand-Off-Automatic) Buttons with Indication Control Pump Mode; Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
3. Pump Run Indicator Illuminates when Pump is called to Run.
4. LED Display Shows System Information Including: Level in Inches or Centimeters (C-Level™ sensor only), Mode, Pump Elapsed Time (hh:mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only), Pump ON/OFF Times (timed dose only), and Sequence ON/OFF Times (timed dose only).
5. NEXT Push Button Toggles Display.
6. UP and SET Push Buttons used to Set Pump ON/OFF Times (timed dose only), date and hour, activation levels (C-Level™ only).

PANEL COMPONENTS:
1. Enclosure Base Measures 14 X 12 X 6 inches (35.56 X 30.48 X 15.24 cm). NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feetfor outdoor or indoor use).
2. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
3. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
4. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating) (NOT SHOWN).
5. Circuit Breaker (optional) Provides Pump Disconnect and Branch Circuit Protection.
6. Power Relay Controls Pump by Switching Electrical Lines; Definite Purpose Contactor Used when Pump Full Load Amps are Above 15.
7. Float Connection Terminal Block
8. Incoming Control/Alarm Power & Pump Terminal Block
9. Control Power Indicator/Fuse Indicator Light Illuminates if Control Power is Present in Panel. Alarm will Activate if Control Fuse is Blown.
10. Alarm Power Indicator/Fuse Indicator Light Illuminates if Alarm Power is Present in Panel.
11. Ground Lug
12. Incoming Pump Power Connections
13. RF Filter
14. Power Supply
15. Control Fuse
16. Alarm Fuse
17. USB Port for Flash Drive to Download Time-Stamped System Events
18. Manual Report Switch Date and Time Stamps Service Calls

NOTE: Options, Voltage and Amp Range Selected May Change Enclosure Size and Component Layout

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.
