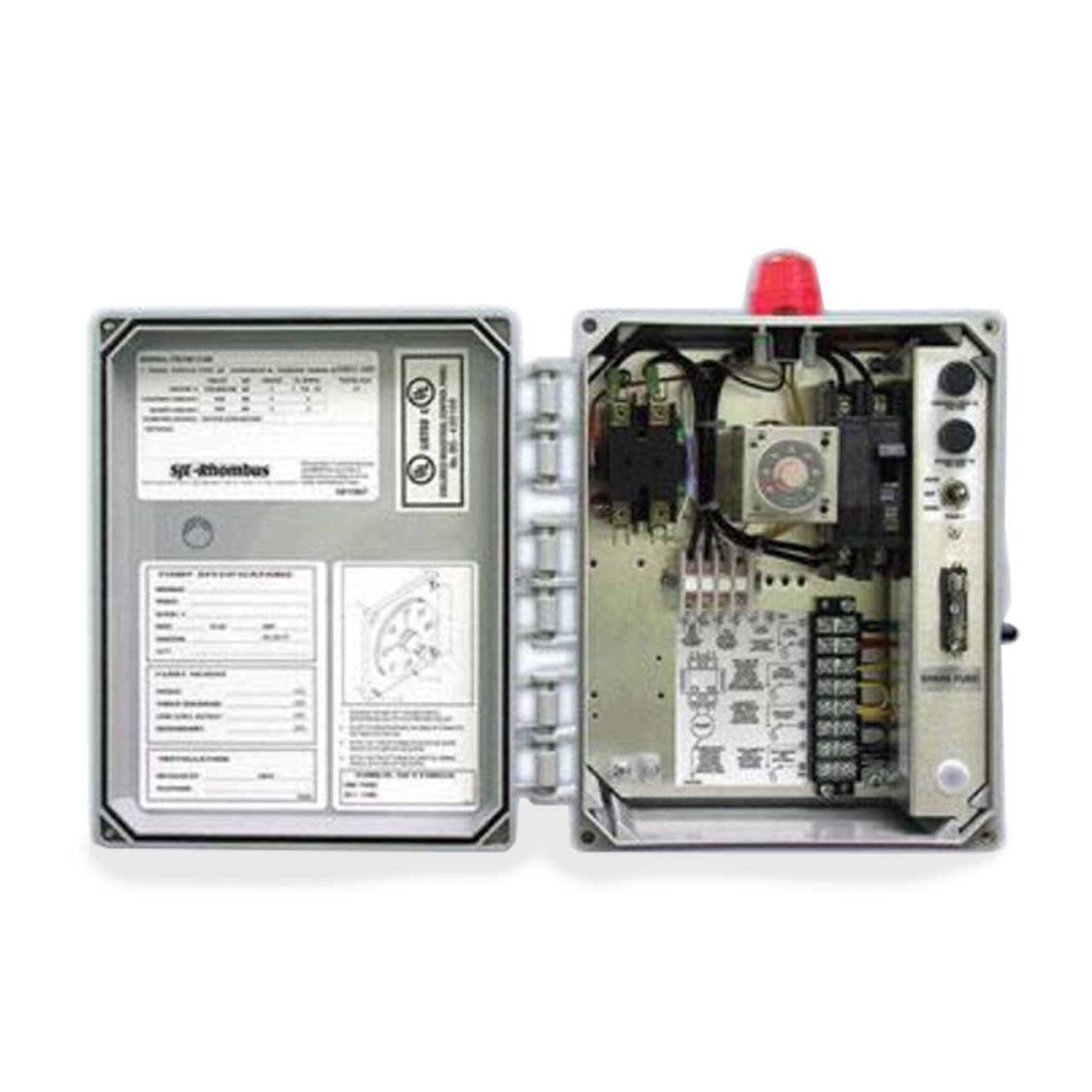

Model TD Subsurface Drip Panels Using Programmable Logic Control for Irrigation Systems

The Model DP Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

The Model DP control panels are PLC-based (programmable logic control) panels designed to control one 120V or 230V single phase pump and two valves (flush and spin valves) for subsurface drip irrigation systems.

The PLC can be programmed to contain all timer settings and monitoring information for the system via the easy-to-use touch pad and screen displays. Each Model DP panel features PLC log functions:

• Pump elapsed time meter
• Pump cycle counter
• Pump fail counter
• High alarm counter
• High alarm counter
• Override counter

SJE-Rhombus Model DP - Single Phase Drip Dose Simplex Motor Contactor Control Panel Features

• NEMA 4X indoor/outdoor enclosure
• Red alarm beacon provides 360^o visual check of alarm condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
• Alarm horn provides audio warning of alarm condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
• External alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition has been cleared
• Horn silence relay
• Magnetic motor contactor controls pump by switching electrical lines
• Hand/Off/Automatic (HOA) switch for manual pump control
• Programmable logic controller (PLC)
• HOA switch flush valve
• HOA spin filter
• HOA switch zone valves
• Incoming power terminal block/pump/control/alarm
• Circuit breaker provides pump disconnect and branch circuit protection
• Float/valves terminal block
• Ground lug
• Fuses
• UL/cUL Listed
• Five-Year Limited Warranty

SJE-Rhombus Model DP - Single Phase Drip Dose Simplex Motor Contactor Control Panel Specifications

• Enclosure DP1: 14 x 12 x 6 inches, DP2 16 X 14 X 6 inches NEMA4X
• Magnetic Motor Contactor controls pump by switching electrical lines
• HOA Switch for manual pump control.
• Control Fuse
• Alarm Fuse
• Float Switch Terminal Block
• Incoming Power Terminal Block
• Programmable Timer with separate variable controls allows for setting the on and off times from .05 seconds to 30 hours.
• Circuit Breaker (optional) provides pump disconnect and branch circuit protection
• Spare Fuse
• Backplate Label includes diagram of float, pump, and power connections.
• Ground Lug
• Red Alarm Beacon provides 360° visual check of alarm condition.
• Alarm Horn provides audio warning of alarm condition (83 to 85 decibel rating).
• Exterior Alarm Test/Normal/Silence Switch allows horn and light to be tested and horn to be silenced in an alarm condition. Alarm automatically resets once alarm condition is cleared.
• Horn Silence Relay (mounted under bracket).

NOTE: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel
